2009 Kawasaki KLX®450R Front Master Cylinder Diagram

← All diagrams

Find the part on the Front Master Cylinder diagram for your 2009 Kawasaki KLX®450R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

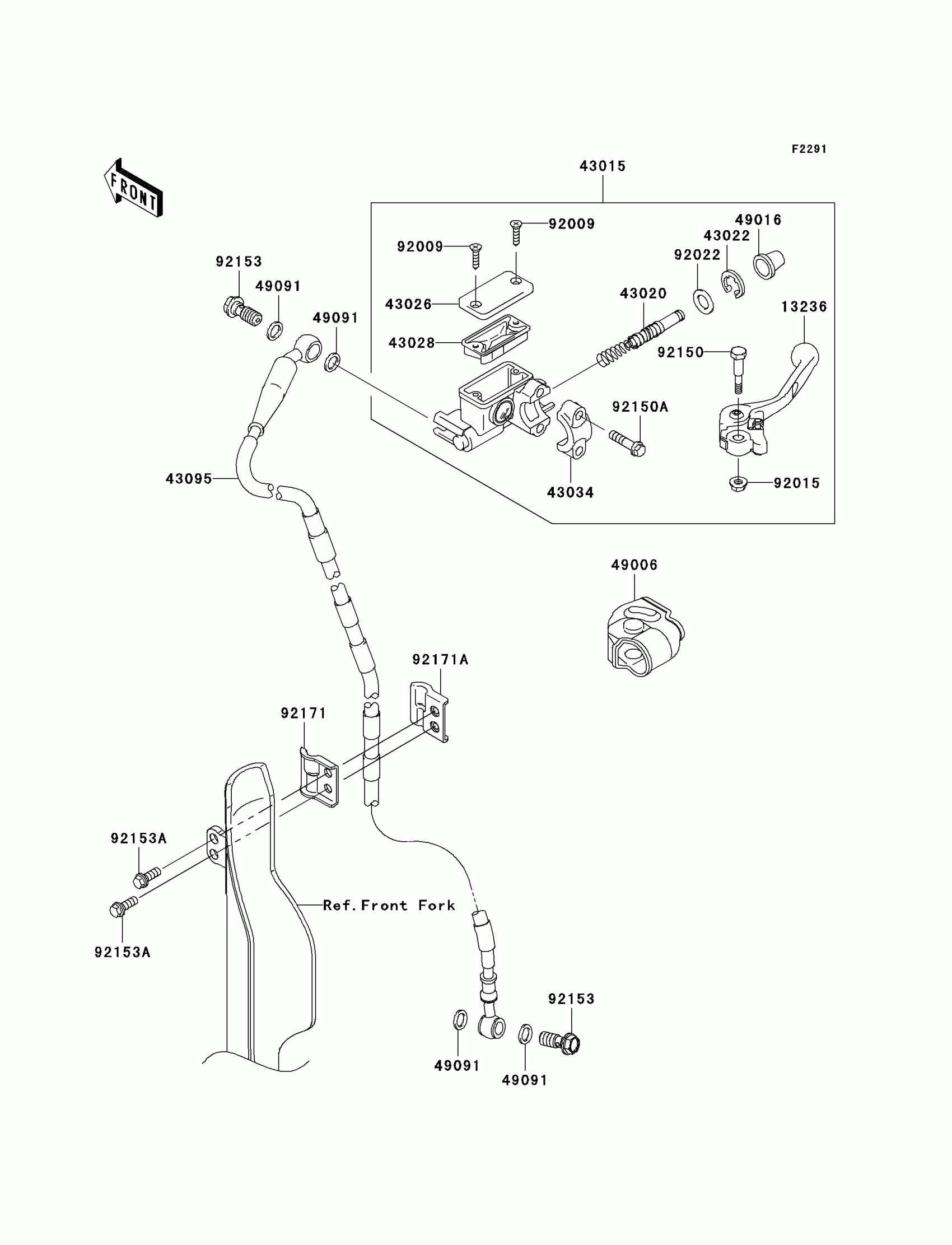

2009 Kawasaki KLX®450R Front Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13236

LEVER-COMP,FRONT BRAKE

13236-1346

1
Out of stock

43015

CYLINDER-ASSY-MASTER,FR

43015-1674

1
Out of stock

43020

PISTON-COMP-BRAKE

43020-1123

1
Out of stock

43022

STOPPER-BRAKE,PISTON

43022-1010

1
Out of stock

43026

CAP-BRAKE

43026-1075

1
Out of stock

43028

DIAPHRAGM

43028-1067

1
Out of stock

43034

HOLDER-BRAKE

43034-1110

1
Out of stock

43095

HOSE-BRAKE,FR

43095-0314

1
Out of stock

49006

BOOT,FRONT BRAKE LEVER

49006-1344

1
Out of stock

49016

COVER-SEAL,MASTER CYLINDER

49016-1044

1
Out of stock

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

1
Out of stock

92009

SCREW,4MM

92009-1458

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1528

1
Out of stock

92022

WASHER

92022-1814

1
Out of stock

92150

BOLT,LEVER SET

92150-1451

1
Out of stock

92150A

BOLT

92150-1452

1
Out of stock

92153

BOLT,OIL,L=23

92153-0627

1
Out of stock

92153A

BOLT,6X16

92153-0695

1
Out of stock

92171

CLAMP,BRAKE HOSE,LH

92171-0481

1
Out of stock

92171A

CLAMP,BRAKE HOSE,RH

92171-0482

1
Out of stock
