2008 Kawasaki KLX®450R Muffler Diagram

← All diagrams

Find the part on the Muffler diagram for your 2008 Kawasaki KLX®450R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

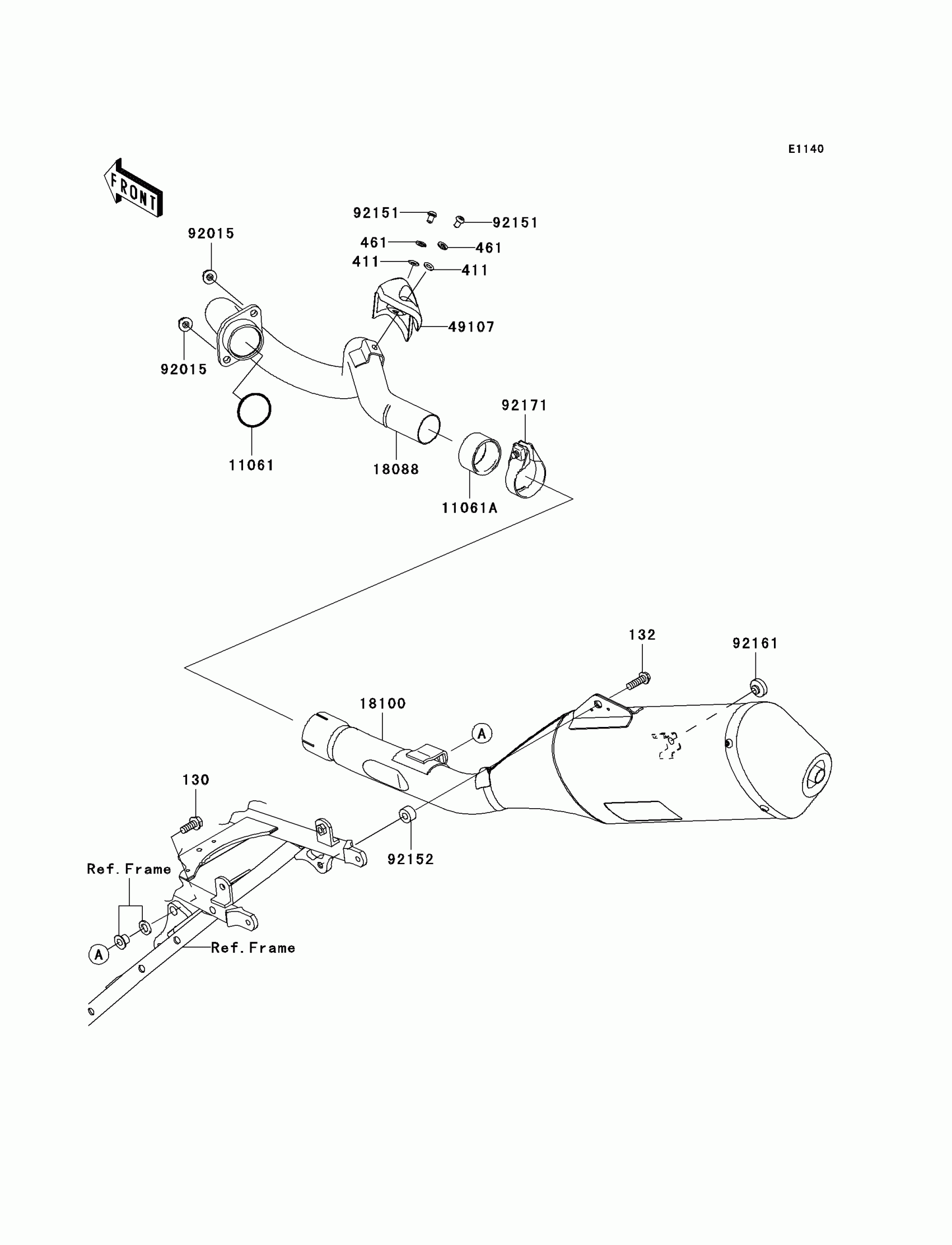

2008 Kawasaki KLX®450R Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,8X20

130CA0820

1

$1.47

In stock

132

1

$3.28

In stock

411

WASHER-PLAIN,6MM

411S0600

1
Out of stock

461

WASHER-SPRING,6MM

461S0600

1
Out of stock

11061

GASKET,38.9X46.4X3.0

11061-0082

1
Out of stock

11061A

GASKET,38.1X48.7X32

11061-0285

1
Out of stock

18088

PIPE-EXHAUST

18088-0371

1
Out of stock

18100

BODY-ASSY-MUFFLER

18100-0070

1
Out of stock

49107

COVER-EXHAUST PIPE

49107-0109

1
Out of stock

92015

NUT,8MM

92015-1402

1
Out of stock

92151

BOLT,SOCKET,6X10

92151-1449

1
Out of stock

92152

COLLAR

92152-3726

1
Out of stock

92161

DAMPER,8X22X6

92161-0516

1
Out of stock

92171

CLAMP

92171-0653

1
Out of stock
