2009 Kawasaki KLX®450R Cylinder Head Diagram

← All diagrams

Find the part on the Cylinder Head diagram for your 2009 Kawasaki KLX®450R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

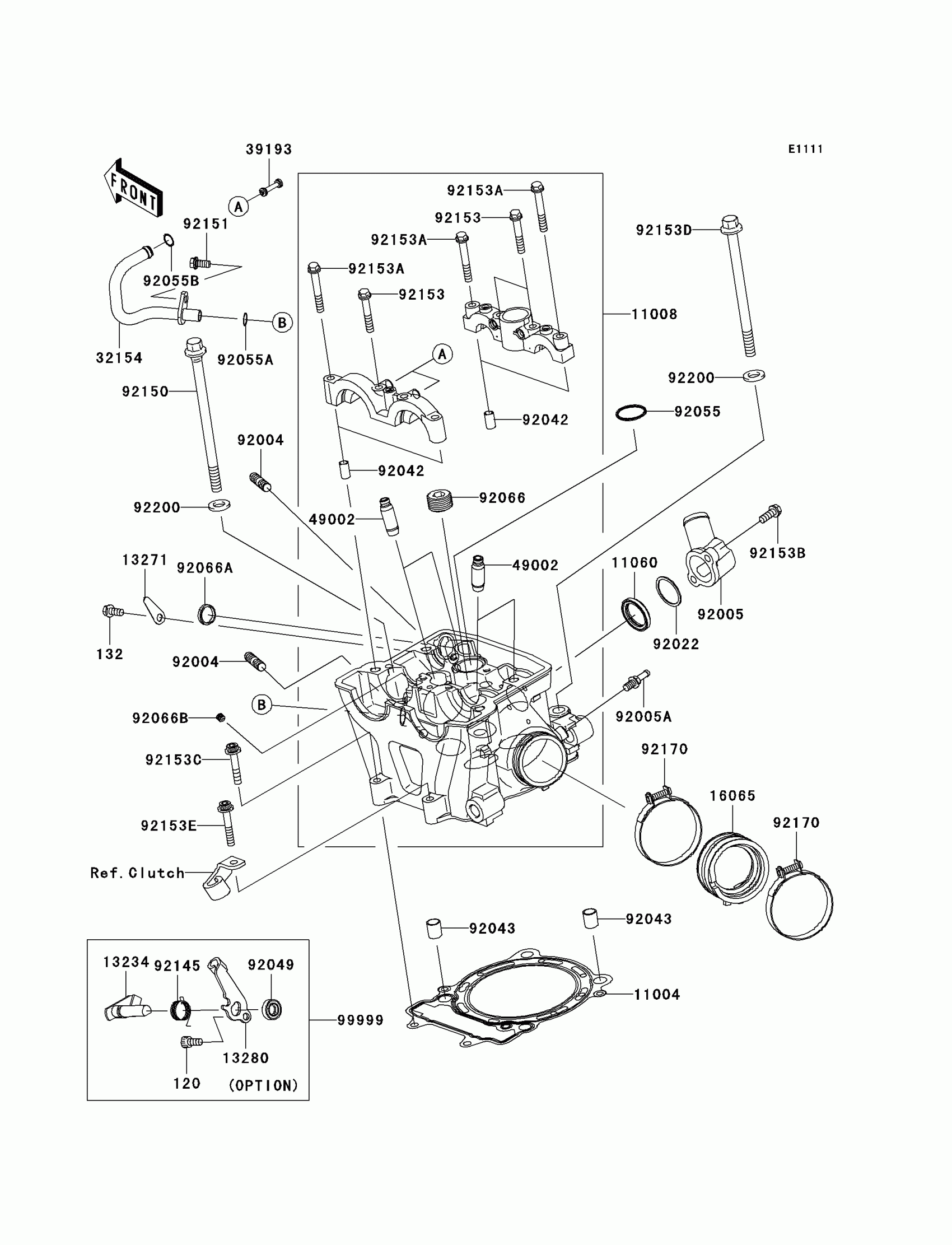

2009 Kawasaki KLX®450R Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11004

GASKET-HEAD

11004-0045

1
Out of stock

11008

HEAD-COMP-CYLINDER

11008-0139

1
Out of stock

11060

GASKET,THERMOSTAT

11060-1300

1
Out of stock

13234

SHAFT-COMP,DECOMP

13234-0009

1
Out of stock

13271

PLATE

13271-0675

1

$2.71

In stock

13280

HOLDER,DECOMP

13280-0038

1

$7.47

In stock

16065

HOLDER-CARBURETOR

16065-0050

1
Out of stock

32154

PIPE,2ND AIR

32154-1180

1
Out of stock

39193

PIPE-OIL

39193-0027

1

$13.74

In stock

49002

GUIDE-VALVE

49002-0007

—
Out of stock

92004

STUD,8X22

92004-0025

1
Out of stock

92005

FITTING

92005-0018

1
Out of stock

92005A

FITTING

92005-0056

1
Out of stock

92022

WASHER,25.3X30X1

92022-161

1
Out of stock

92042

PIN,DOWEL,6.3X8X14

92042-007

1
Out of stock

92043

PIN,10.1X12X14

92043-4009

1
Out of stock

92049

SEAL-OIL

92049-1196

1
Out of stock

92055

RING-O,23.5X2.0

92055-0046

1
Out of stock

92055A

RING-O,9.8X1.9

92055-0061

1
Out of stock

92055B

RING-O,9.8X2.4

92055-1150

1
Out of stock

92066

PLUG,PT1/2X12.5

92066-0002

1
Out of stock

92066A

PLUG,4X18

92066-0024

1
Out of stock

92066B

PLUG,6X6

92066-0068

1
Out of stock

92145

SPRING

92145-0048

1
Out of stock

92150

BOLT,L=140

92150-1935

1
Out of stock

92151

BOLT,6X12

92151-1133

1
Out of stock

92153

BOLT,6X38

92153-0338

1
Out of stock

92153A

BOLT,6X45

92153-0339

1
Out of stock

92153B

BOLT,6X16

92153-0695

1
Out of stock

92153C

BOLT,6X35

92153-0810

1
Out of stock

92153D

BOLT,FLANGED-SMALL,10X127

92153-1001

1
Out of stock

92153E

BOLT,SOCKET,6X40

92153-1725

1
Out of stock

92170

CLAMP

92170-1448

1

$6.44

In stock

92200

WASHER,10.5X19X2.3

92200-0114

1
Out of stock

99999

KIT.,MANUAL DECOMP

99999-0023

1
Out of stock

120

BOLT-SOCKET,6X12

120CA0612

1
Out of stock

132

1

$1.12

In stock
