2009 Kawasaki KLX®450R Kickstarter Mechanism Diagram

← All diagrams

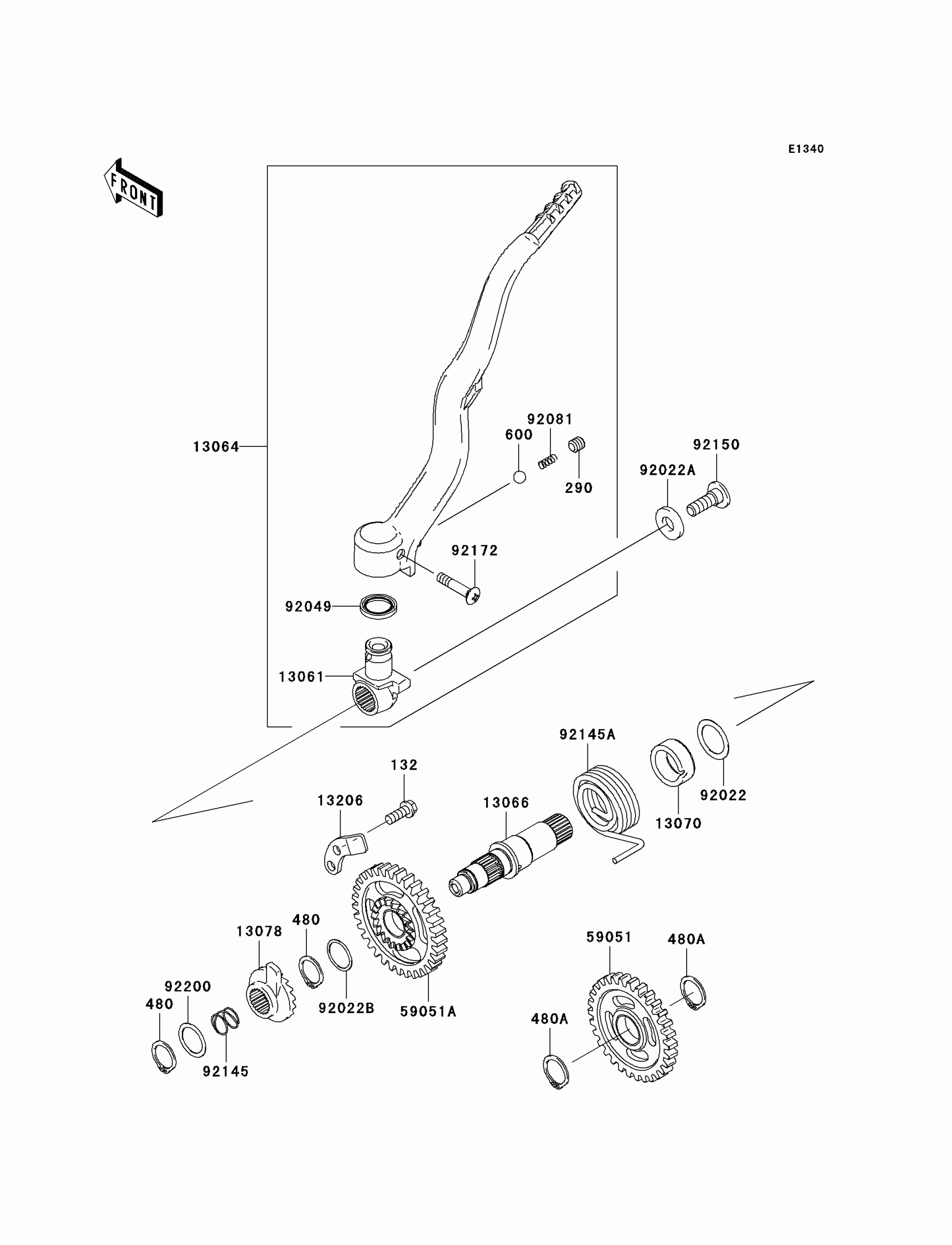

Find the part on the Kickstarter Mechanism diagram for your 2009 Kawasaki KLX®450R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Kawasaki KLX®450R Kickstarter Mechanism Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

1

$1.21

In stock

290

1

$2.71

In stock

480

1

$1.14

In stock

480A

1

$1.14

In stock

600

BALL-STEEL,1/4

600A0800

1

$0.67

In stock

13061

BOSS

13061-0146

1

$80.57

In stock

13064

LEVER-ASSY-KICK

13064-0044

1
Out of stock

13066

SHAFT-KICK

13066-0008

1

$122.88

In stock

13070

GUIDE,KICK SPRING

13070-1378

1

$19.47

In stock

13078

RATCHET

13078-0008

1
Out of stock

13206

GUIDE-KICK

13206-0005

1

$11.90

In stock

59051

GEAR-SPUR,30T

59051-0030

1

$94.16

In stock

59051A

GEAR-SPUR,33T

59051-0046

1

$101.43

In stock

92022

WASHER,20.3X28.0X0.5

92022-1885

1
Out of stock

92022A

WASHER,10X22X3.2

92022-1944

1
Out of stock

92022B

WASHER,18.3X22X0.5

92022-271

1
Out of stock

92049

SEAL-OIL,KICK PEDAL

92049-1387

1
Out of stock

92081

SPRING,KICK PEDAL

92081-020

1

$3.39

In stock

92145

SPRING

92145-0162

1

$12.07

In stock

92145A

SPRING,RETURN

92145-0297

1

$9.86

In stock

92150

BOLT,8X25

92150-1858

1

$6.24

In stock

92172

SCREW,6X30

92172-1088

1

$3.70

In stock

92200

WASHER,18.3X24X0.5

92200-0075

1
Out of stock
