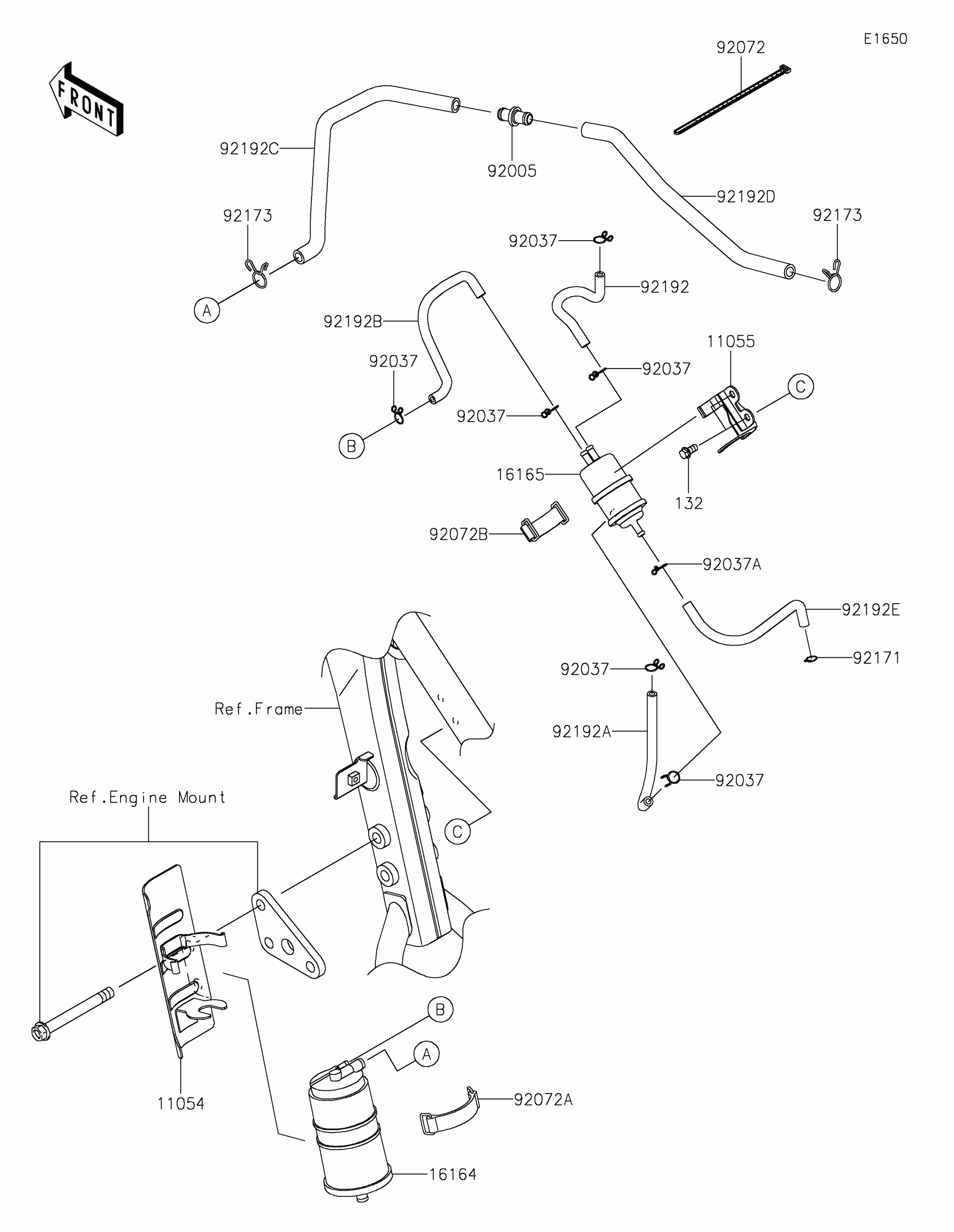

Kawasaki KLX®300SM Fuel Evaporative System(CA) Diagram

Description

Price

11054

BRACKET,CANISTER

11054-1638

$24.78

11055

BRACKET,SEPARATOR

11055-1149

$8.25

16164

CANISTER

16164-0022

$136.75

16165

SEPARATOR

16165-1001

$79.83

92005

FITTING

92005-1379

$4.66

92037

CLAMP,TUBE

92037-147

$5.61

92037A

CLAMP

92037-1712

$3.81

92072

BAND,L=250

92072-1237

$1.55

92072A

BAND,TOOL,L=82

92072-1294

$14.14

92072B

BAND,L=50

92072-1419

$12.21

92171

CLAMP

92171-0573

$1.20

92173

CLAMP,14MM

92173-0192

$3.29

92192

TUBE,TANK-SEPARATOR,BLUE

92192-0722

$41.54

92192A

TUBE,SEPARATOR-TANK,RED

92192-0723

$41.54

92192B

TUBE,SEPARATOR-CANISTER,BLUE

92192-0724

$51.75

92192C

TUBE,CANISTER-FITTING,GRN/WHT

92192-0725

$66.63

92192D

TUBE,FITTING-A/C,GRN/WHT

92192-0726

$66.63

92192E

TUBE,THROBO-SEPARATOR,WHITE

92192-0787

$3.19

132

BOLT-FLANGED-SMALL,6X12

132BB0612

$1.49
