2021 Kawasaki KLX®300SM Fuel Tank Diagram

← All diagrams

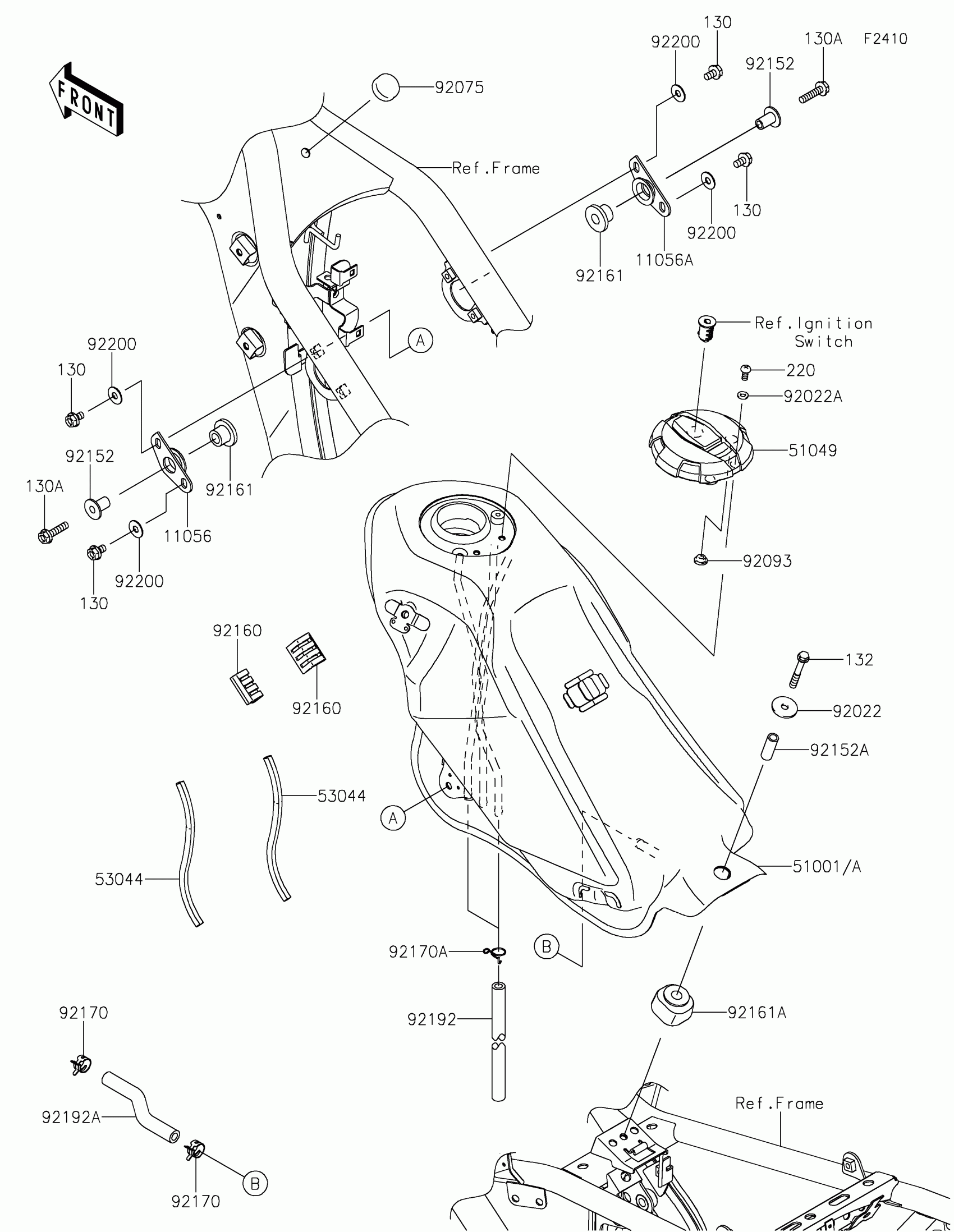

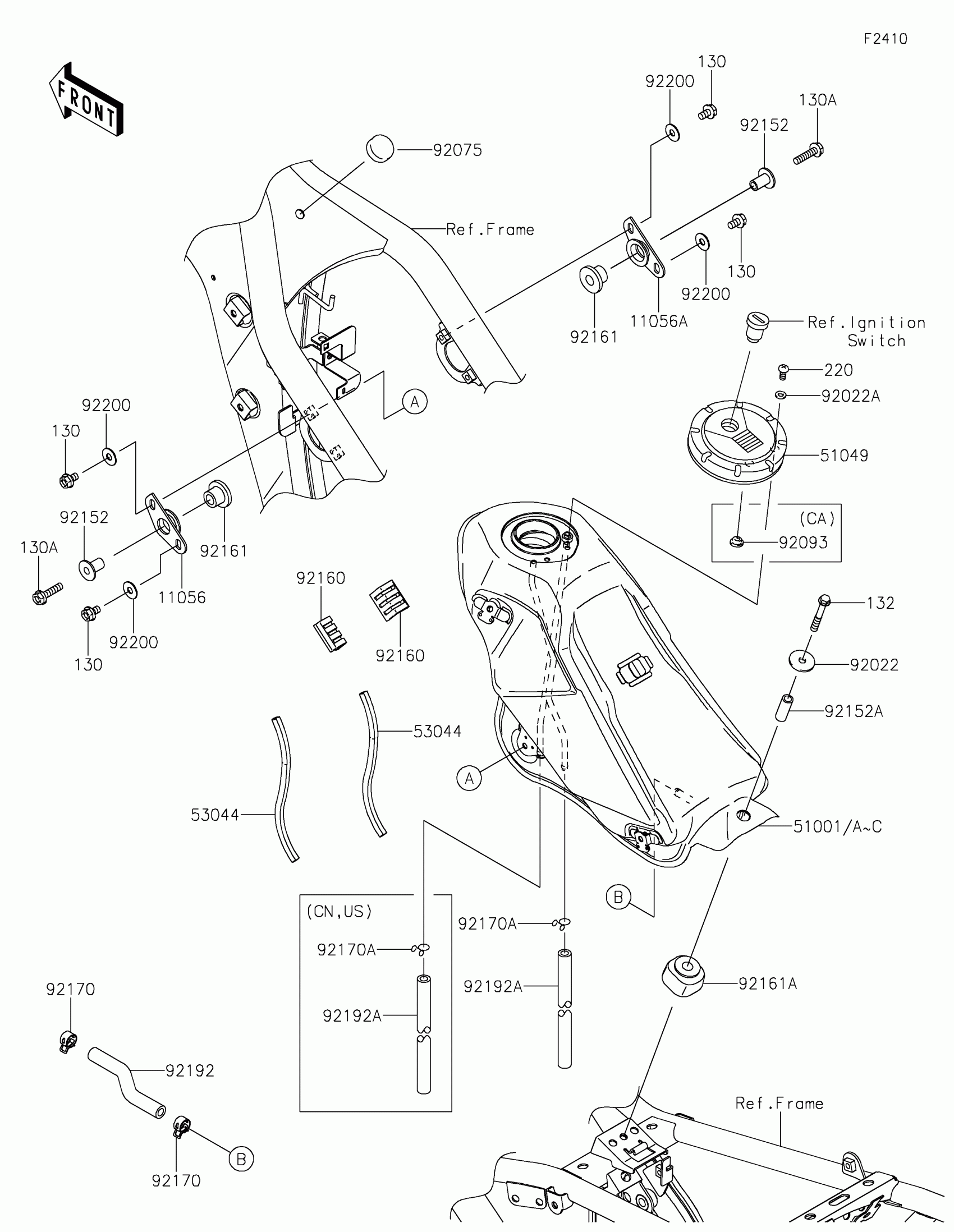

Find the part on the Fuel Tank diagram for your 2021 Kawasaki KLX®300SM, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2021 Kawasaki KLX®300SM Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11056

BRACKET,ADJUSTER,LH

11056-1452

1
Out of stock

11056A

BRACKET,ADJUSTER,RH

11056-1457

1
Out of stock

130

BOLT-FLANGED,6X10

130BB0610

1

$2.05

In stock

130A

BOLT-FLANGED,6X25

130BB0625

1

$1.92

In stock

132

1

$3.53

In stock

220

SCREW-PAN-CROS,5X10

220AA0510

1
Out of stock

51049

CAP-TANK,FUEL

51049-0049

1
Out of stock

53044

TRIM,L=157

53044-1276

1

$8.63

In stock

92022

WASHER,6.5X24X2

92022-1690

1
Out of stock

92022A

WASHER,5.1X10X1.0

92022-1977

1
Out of stock

92075

DAMPER,9X24X14

92075-281

1
Out of stock

92152

COLLAR,6.5X10X18

92152-1560

1
Out of stock

92152A

COLLAR,6.8X10X27

92152-2779

1
Out of stock

92160

DAMPER,FUEL TANK

92160-1328

1
Out of stock

92161

DAMPER,10X16X15

92161-1397

1
Out of stock

92161A

DAMPER,FUEL TANK

92161-2373

1
Out of stock

92170

CLAMP

92170-1492

1

$3.97

In stock

92192

TUBE

92192-0604

1
Out of stock

92200

WASHER,6.5X18X1.6

92200-0766

1
Out of stock
