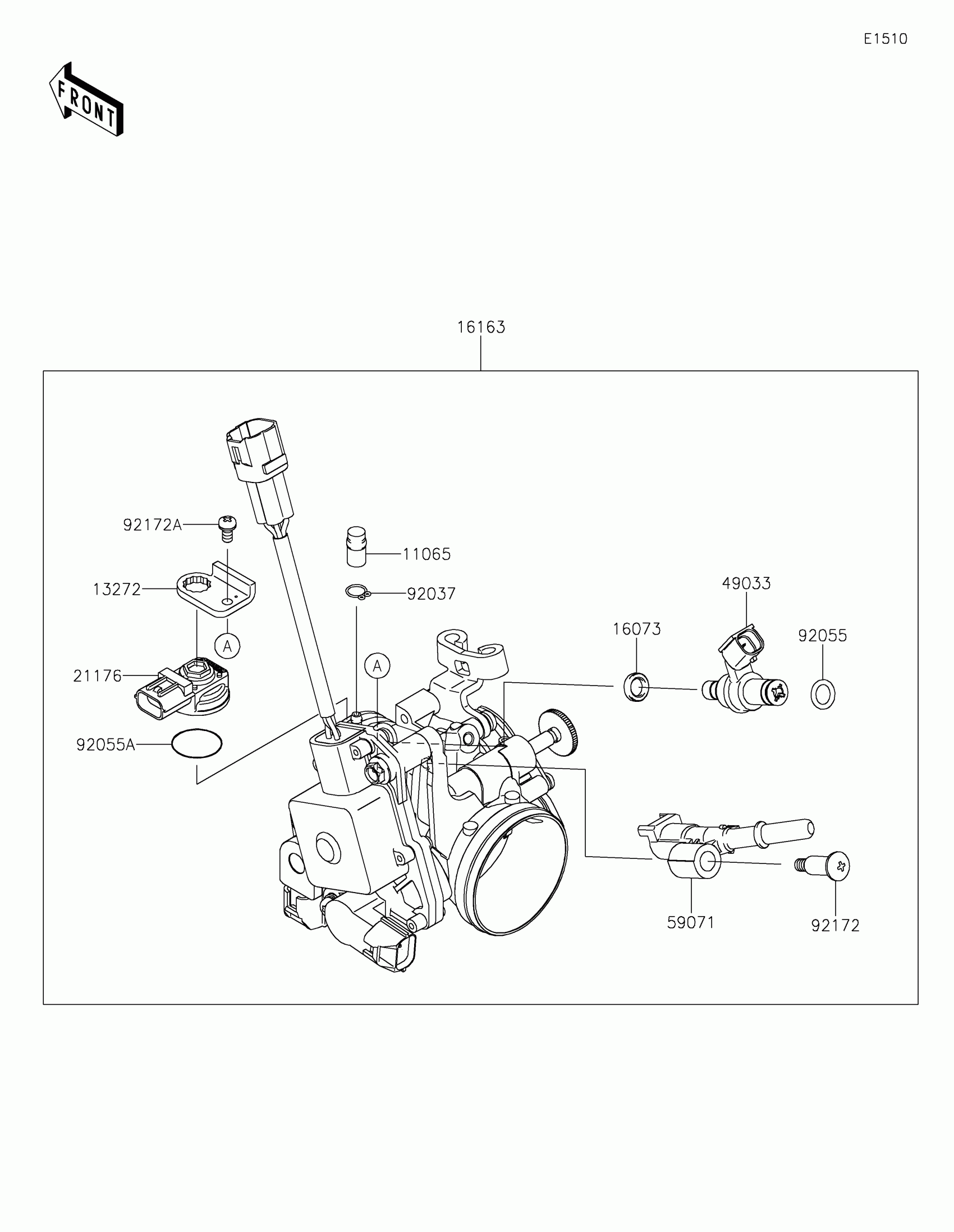

Kawasaki KLX®300SM Throttle Diagram

Description

Price

11065

CAP

11065-0018

$4.61

13272

PLATE

13272-0676

$14.78

16073

INSULATOR

16073-0077

$7.12

16163

THROTTLE-ASSY

16163-1246

$693.06

21176

SENSOR

21176-0122

$138.38

49033

NOZZLE-INJECTION

49033-0016

$129.38

59071

JOINT

59071-0063

$43.83

92037

CLAMP,TUBE

92037-1142

$3.29

92055

RING-O

92055-0170

$2.08

92055A

RING-O

92055-0184

$3.81

92172

SCREW,PIPE INJECTION

92172-0064

$1.98

92172A

SCREW

92172-0415

$2.58
