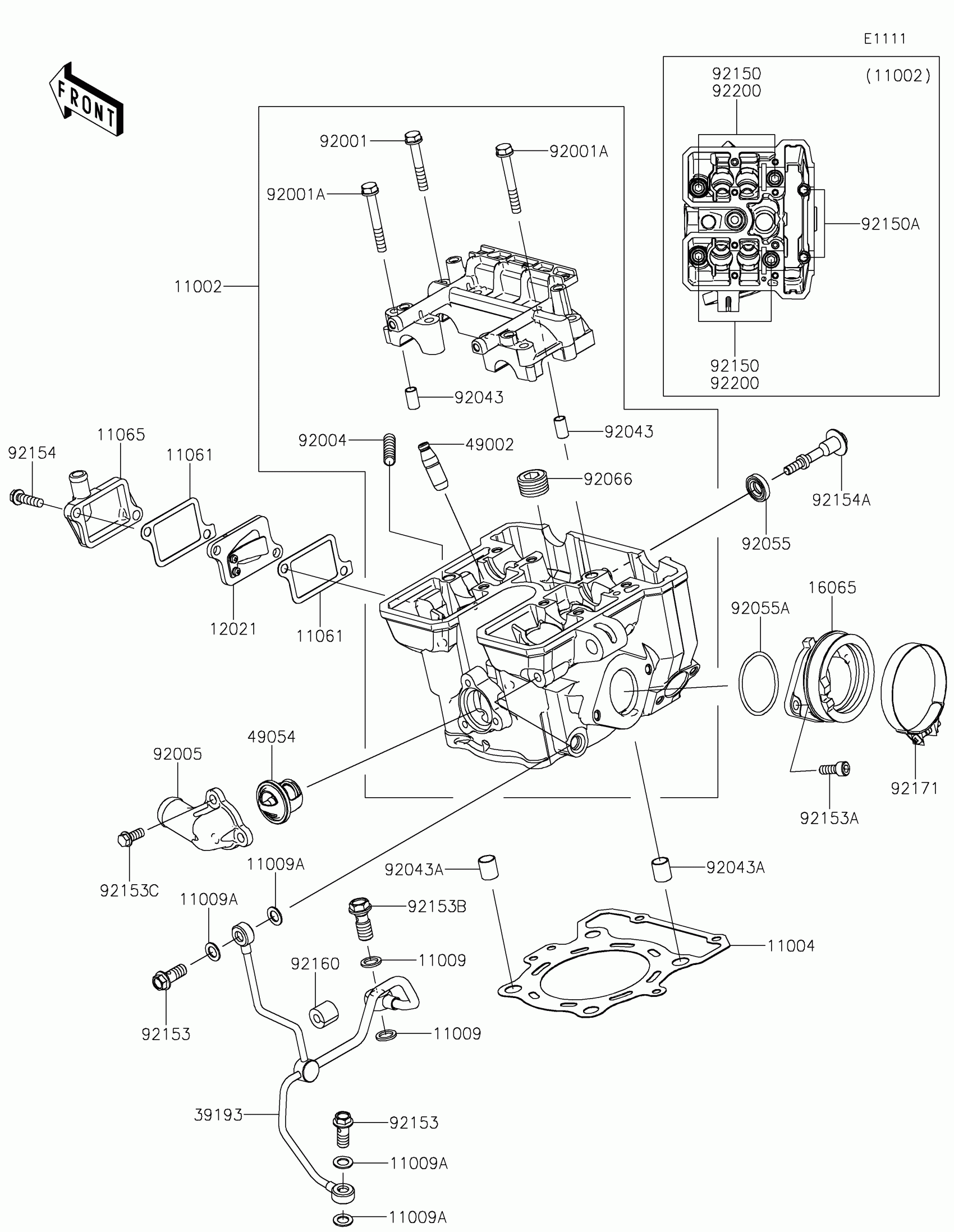

Find the part on the Cylinder Head diagram for your 2026 Kawasaki KLX®300SM, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2026 Kawasaki KLX®300SM Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11002

HEAD-ASSY-CYLINDER

11002-0262

1
Out of stock

11004

GASKET-HEAD

11004-0091

1
Out of stock

11009

GASKET,10X14.5X1.5

11009-1105

1
Out of stock

11009A

GASKET,8.2X14X1.0

11009-1344

1
Out of stock

11061

GASKET,REED VALVE

11061-0890

1
Out of stock

11065

CAP

11065-1308

1
Out of stock

12021

VALVE-ASSY-REED

12021-0049

1
Out of stock

16065

HOLDER-CARBURETOR

16065-0045

1
Out of stock

39193

PIPE-OIL

39193-0591

1
Out of stock

49002

GUIDE-VALVE

49002-1126

1
Out of stock

49054

THERMOSTAT

49054-1053

1
Out of stock

92001

BOLT,FLANGED,6X38

92001-1105

1
Out of stock

92001A

BOLT,6X46

92001-1872

1
Out of stock

92004

STUD,8X25

92004-0731

1
Out of stock

92005

FITTING

92005-0107

1
Out of stock

92043

PIN,6.2X8X14

92043-1263

1
Out of stock

92043A

PIN,10.1X12X14

92043-4009

1
Out of stock

92055

RING-O,HEAD COVER BOLT

92055-0195

1
Out of stock

92055A

RING-O

92055-1255

1
Out of stock

92066

PLUG,PT1/2X12.5

92066-0002

1
Out of stock

92150

BOLT,10X165

92150-1368

1
Out of stock

92150A

BOLT,6X135

92150-1552

1
Out of stock

92153

BOLT,BANJO,8X20

92153-0651

1
Out of stock

92153A

BOLT,SOCKET,6X16

92153-1344

1
Out of stock

92153B

BOLT,BANJO,10X23

92153-1345

1
Out of stock

92153C

BOLT

92153-1805

1
Out of stock

92154

BOLT,FLANGED,6X22

92154-0504

1
Out of stock

92154A

BOLT

92154-1230

1
Out of stock

92160

DAMPER,6.3X15X14

92160-1523

1
Out of stock

92171

CLAMP

92171-0643

1
Out of stock

92200

WASHER,10.5X19X2.3

92200-1042

1
Out of stock
