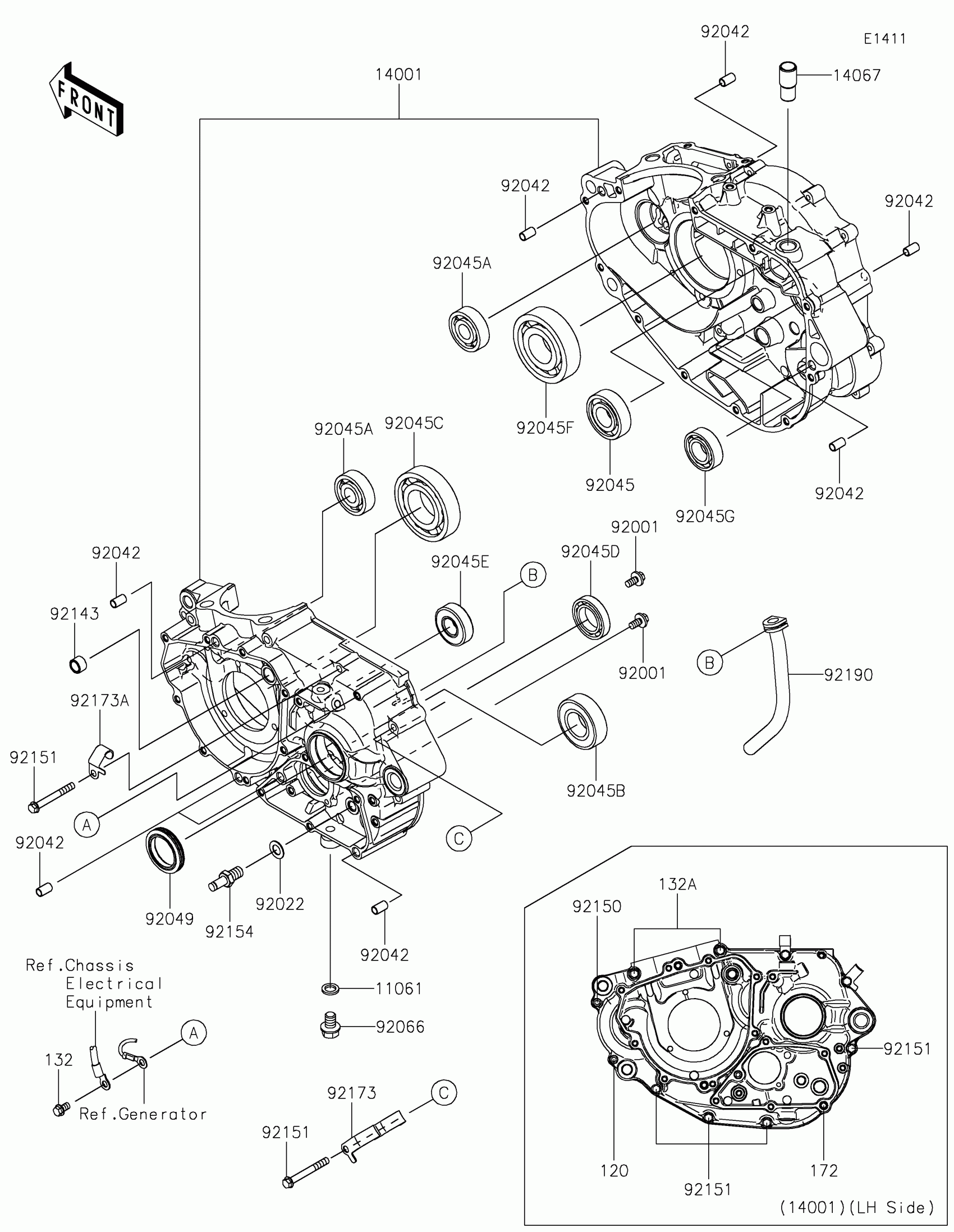

Kawasaki KLX®300SM Crankcase Diagram

#

Description
Price

11061

GASKET,10.5X16X2

11061-0222

$4.24

120

BOLT-SOCKET,6X50

120CC0650

$2.10

132

BOLT-FLANGED-SMALL

132BC0610

$1.68

132A

BOLT-FLANGED-SMALL,6X70

132BC0670

$3.51

14001

SET-CRANKCASE

14001-0728

$800.64

14067

FITTING,BREATHER

14067-006

$19.78

172

BOLT-STUD,6X80

172BA0680

$1.95

92001

BOLT,W/WASHER,6X14

92001-1829

$3.53

92022

WASHER,10.2X18X1.0,SK5

92022-1415

$4.17

92042

PIN,DOWEL,6.3X8X14

92042-007

$4.31

92045

BEARING-BALL,20X47X14

92045-0752

$31.01

92045A

BEARING-BALL,15X42X13

92045-0753

$16.42

92045B

BEARING-BALL,25X52X15

92045-0756

$32.62

92045C

BEARING-BALL,35X72X17

92045-0757

$35.88

92045D

BEARING-BALL,25X42X9

92045-0761

$25.86

92045E

BEARING-BALL,17X40X12

92045-0938

$23.83

92045F

BEARING-BALL,30X72X19

92045-0941

$31.05

92045G

BEARING-BALL,DG204012

92045-1414

$29.10

92049

SEAL-OIL,32X45X7.5

92049-0825

$17.85

92066

PLUG,DRAIN

92066-0143

$2.79

92143

COLLAR

92143-1263

$3.71

92150

BOLT,SOCKET,6X35

92150-1875

$4.66

92151

BOLT,6X50

92151-1234

$2.03

92154

BOLT,RETURN SPRING

92154-1306

$8.51

92173

CLAMP

92173-1715

$7.47

92173A

CLAMP

92173-2289

$2.63

92190

TUBE

92190-1493

$11.19
