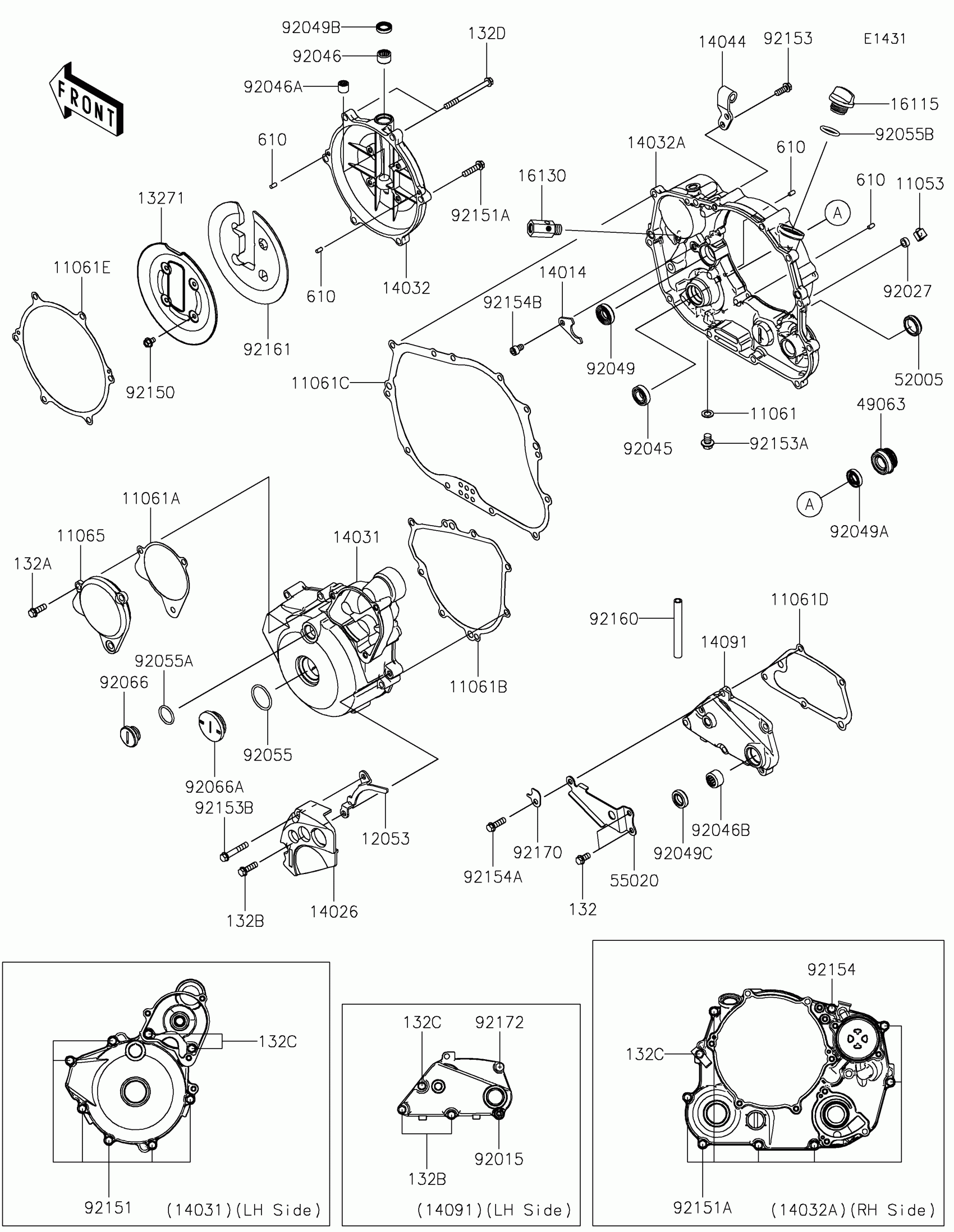

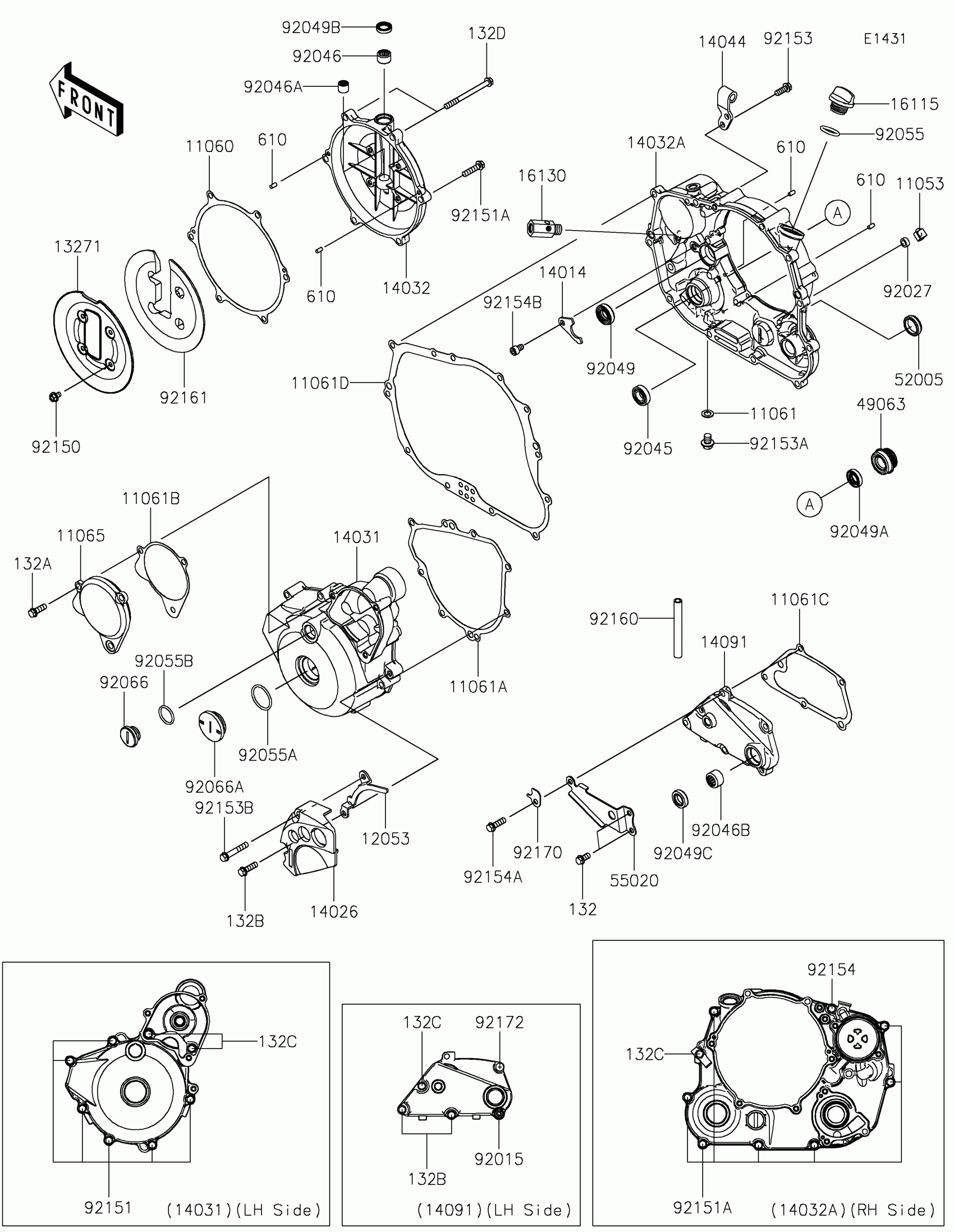

Kawasaki KLX®300SM Engine Cover(s) Diagram

#

Description
Price

11053

BRACKET

11053-1656

$8.19

11060

GASKET,CLUTCH COVER OUTER

11060-1325

$12.05

11061

GASKET,8.2X14X1.0

11061-0418

$5.15

11061A

GASKET,GENERATOR COVER

11061-0891

$16.82

11061B

GASKET,CAP

11061-0892

$9.75

11061C

GASKET,TRANSMISSION COVER

11061-0897

$10.71

11061D

GASKET,CLUTCH COVER INNER

11061-0923

$36.58

11065

CAP,GENERATOR COVER

11065-0274

$29.01

12053

GUIDE-CHAIN

12053-1337

$12.36

13271

PLATE

13271-1567

$47.22

14014

PLATE-POSITION

14014-0567

$8.12

14026

COVER-CHAIN

14026-0027

$31.04

14031

COVER-GENERATOR

14031-0110

$167.55

14032

COVER-CLUTCH,OUTER

14032-0004

$56.05

14032A

COVER-CLUTCH

14032-0684

$169.20

14044

HOLDER-CABLE

14044-1078

$7.36

14091

COVER

14091-0019

$52.99

16115

CAP-OIL FILLER

16115-1053

$9.28

16130

VALVE-ASSY-RELIEF

16130-0002

$23.95

49063

SEAL-MECHANICAL

49063-1055

$16.33

52005

GAUGE,OIL LEVEL

52005-1009

$13.87

55020

GUARD,TRANSMISSION COVER

55020-1460

$14.17

92015

NUT,FLANGED,6MM

92015-1367

$2.53

92027

COLLAR,6.5X10.5X4.5

92027-1885

$5.42

92045

BEARING-BALL,6901

92045-1246

$26.33

92046

BEARING-NEEDLE,HK1210FM

92046-0034

$11.87

92046A

BEARING-NEEDLE

92046-0042

$14.46

92046B

BEARING-NEEDLE,HK1312

92046-1148

$14.13

92049

SEAL-OIL

92049-1191

$22.97

92049A

SEAL-OIL,SC 12X22X5

92049-1228

$7.08

92049B

SEAL-OIL,AG0353-F0

92049-1262

$4.93

92049C

SEAL-OIL

92049-1559

$2.71

92055

RING-O

92055-012

$0.82

92055A

RING-O,27.7X2.4

92055-091

$4.67

92055B

RING-O,20X2

92055-1146

$6.55

92066

PLUG

92066-0967

$16.24

92066A

PLUG

92066-0968

$18.36

92150

BOLT,5X8

92150-1406

$3.56

92151

BOLT,6X40

92151-1131

$3.71

92151A

BOLT,FLANGED-SMALL,6X25

92151-1930

$1.98

132

BOLT-FLANGED-SMALL,6X12

132BC0612

$1.81

132A

BOLT-FLANGED-SMALL,6X18

132BC0618

$1.57

132B

BOLT-FLANGED-SMALL,6X20

132BC0620

$0.90

132C

BOLT-FLANGED-SMALL,6X30

132BC0630

$1.57

132D

BOLT-FLANGED-SMALL,6X70

132BC0670

$3.51

610

ROLLER,4X8

610A0408

$3.29

92153

BOLT,6X16

92153-0695

$2.14

92153A

BOLT,FLANGED,8X10

92153-1342

$2.71

92153B

BOLT,FLANGED,6X35

92153-1351

$5.05

92154

BOLT,FLANGED,6X25

92154-0490

$1.66

92154A

BOLT,FLANGED,6X20

92154-3945

$0.85

92154B

BOLT,SOCKET,6X10

92154-4072

$1.93

92160

DAMPER

92160-1866

$2.68

92161

DAMPER

92161-1182

$47.22

92170

CLAMP

92170-1785

$2.49

92172

SCREW,6X16

92172-0223

$1.81
