2020 Kawasaki KLX®300R Ignition System Diagram

← All diagrams

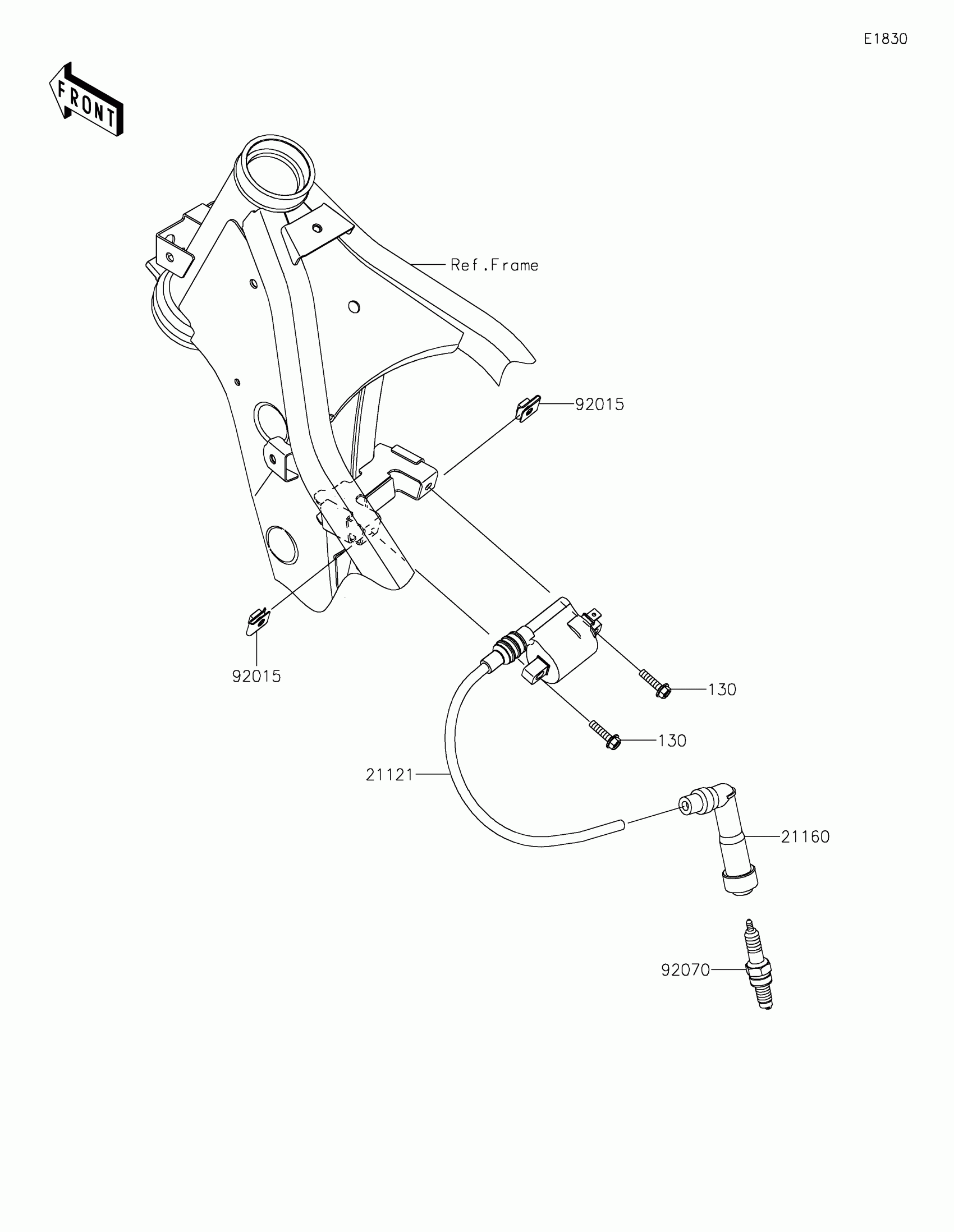

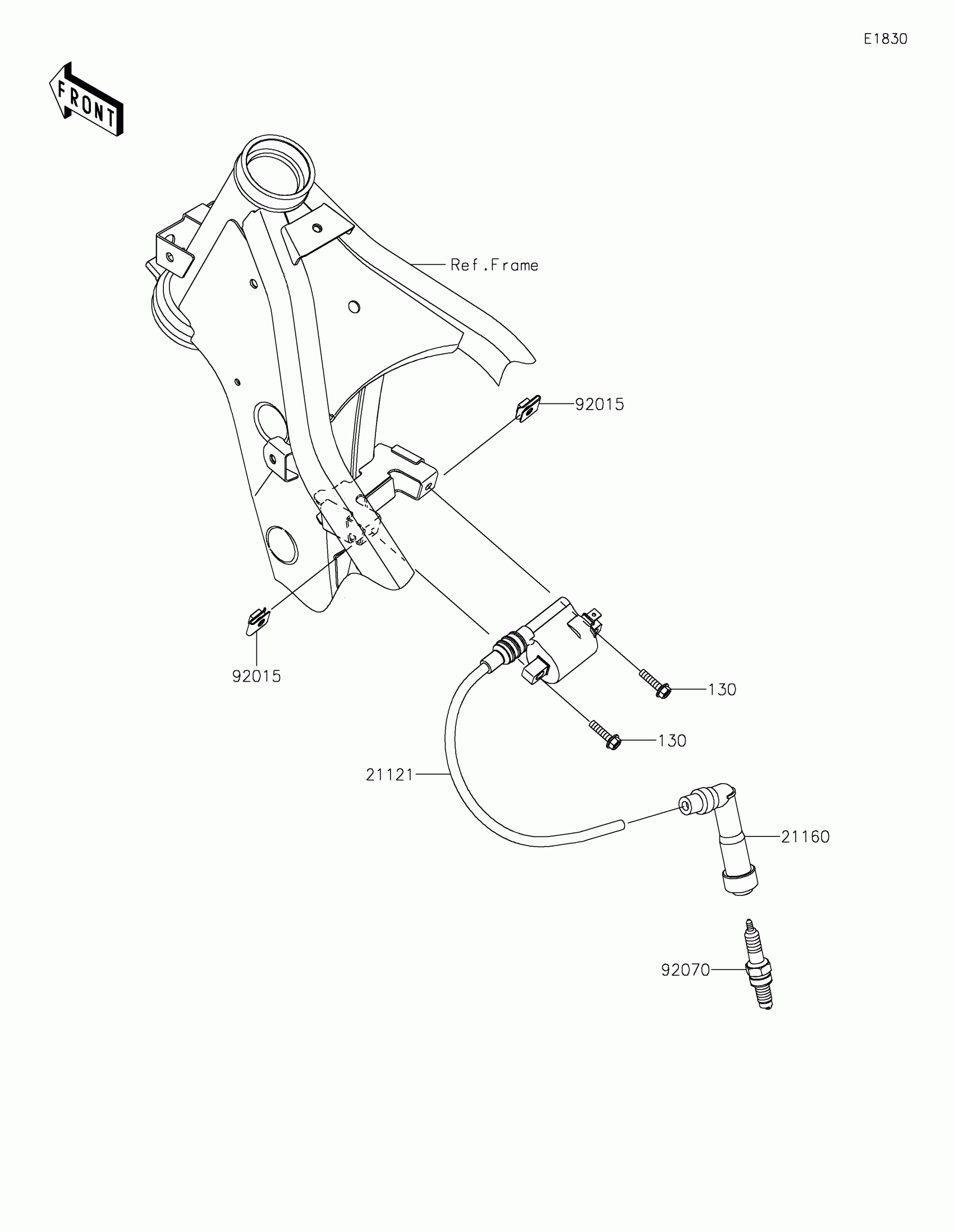

Find the part on the Ignition System diagram for your 2020 Kawasaki KLX®300R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2020 Kawasaki KLX®300R Ignition System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,5X20

130BC0520

1

$1.22

In stock

21121

COIL-IGNITION

21121-0740

1

$91.65

In stock

21160

CAP-ASSY-PLUG

21160-0019

1

$19.93

In stock

92015

NUT,5MM

92015-1996

1

$7.49

In stock

92070

1

$6.44

In stock
