2020 Kawasaki KLX®300R Chassis Electrical Equipment Diagram

← All diagrams

Find the part on the Chassis Electrical Equipment diagram for your 2020 Kawasaki KLX®300R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

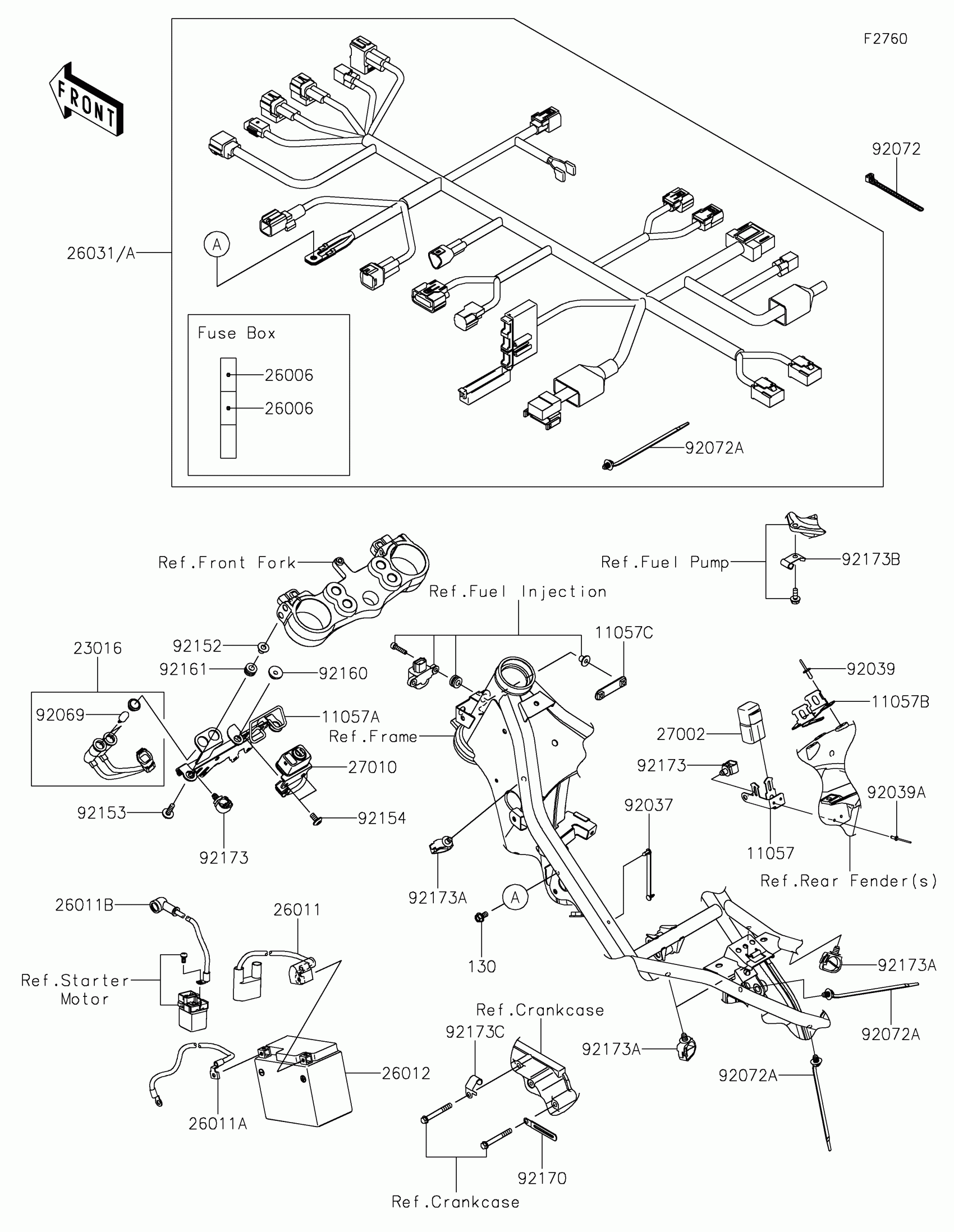

2020 Kawasaki KLX®300R Chassis Electrical Equipment Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET,RELAY

11057-2300

1
Out of stock

11057A

BRACKET,FR CONNECTOR

11057-2301

1
Out of stock

11057B

BRACKET,ECU

11057-2302

1
Out of stock

11057C

BRACKET,VEHICLE-DOWN

11057-2303

1
Out of stock

130

BOLT-FLANGED,6X12

130BB0612

1
Out of stock

23016

LAMP-ASSY,INDICATOR

23016-0638

1
Out of stock

26006

FUSE,MINI BLADE,15A,BLUE

26006-0001

1
Out of stock

26011

WIRE-LEAD,BATTERY(+)

26011-1875

1
Out of stock

26011A

WIRE-LEAD,BATTERY(-)

26011-1876

1
Out of stock

26011B

WIRE-LEAD,STARTER

26011-1877

1
Out of stock

26012

BATTERY,FTZ6V,12V 5AH

26012-0908

1
Out of stock

26031

HARNESS,MAIN

26031-2581

1
Out of stock

26031A

HARNESS,MAIN

26031-2583

1
Out of stock

27002

RELAY-ASSY

27002-1086

1
Out of stock

27010

SWITCH,IGNITION

27010-0929

1
Out of stock

92037

CLAMP,SPEED,L=80.5

92037-1903

1
Out of stock

92039

RIVET

92039-0039

1
Out of stock

92039A

RIVET,3.2X9.5

92039-0752

1
Out of stock

92069

BULB,12V 3.4W,T10

92069-1007

1
Out of stock

92072

BAND,L=140

92072-1293

1
Out of stock

92072A

BAND,OS170-FT7(BLACK)

92072-1414

—
Out of stock

92152

COLLAR,6.3X8.3X9.8

92152-2697

1
Out of stock

92153

BOLT,FLANGED,6X22

92153-0950

1
Out of stock

92154

BOLT,SOCKET,6X12

92154-0951

1
Out of stock

92160

DAMPER

92160-1613

1
Out of stock

92161

DAMPER,8X16X8.6

92161-0685

1
Out of stock

92170

CLAMP

92170-1514

1
Out of stock

92173

CLAMP,12MM DIA.

92173-0736

1
Out of stock

92173A

CLAMP

92173-0861

1
Out of stock

92173B

CLAMP

92173-2202

1
Out of stock

92173C

CLAMP

92173-2289

1
Out of stock
