2020 Kawasaki KLX®300R Generator Diagram

← All diagrams

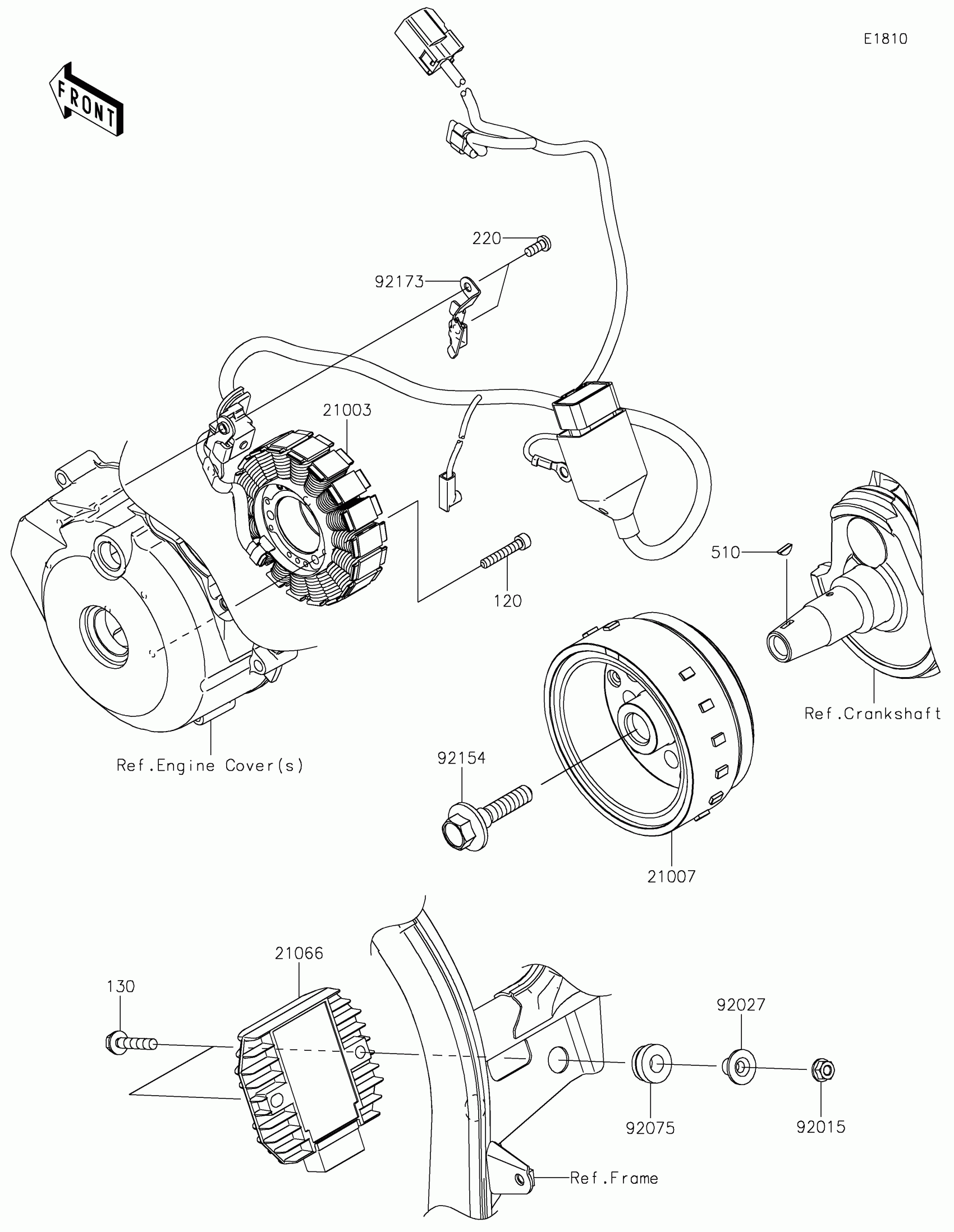

Find the part on the Generator diagram for your 2020 Kawasaki KLX®300R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2020 Kawasaki KLX®300R Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET,5X30

120CA0530

1

$4.85

In stock

130

BOLT-FLANGED,6X30

130BA0630

1

$1.31

In stock

21003

STATOR

21003-0187

1

$559.55

In stock

21007

ROTOR

21007-0678

1

$652.99

In stock

21066

REGULATOR-VOLTAGE

21066-0724

1

$236.87

In stock

220

1

$0.51

In stock

510

KEY-WOODRUFF

510A3100

1

$2.17

In stock

92015

NUT,FLANGED,6MM,BLACK

92015-1233

1
Out of stock

92027

1

$4.37

In stock

92075

DAMPER

92075-277

1

$2.20

In stock

92154

BOLT

92154-1309

1

$5.66

In stock

92173

CLAMP

92173-1150

1

$4.61

In stock
