2020 Kawasaki KLX®300R Front Hub Diagram

← All diagrams

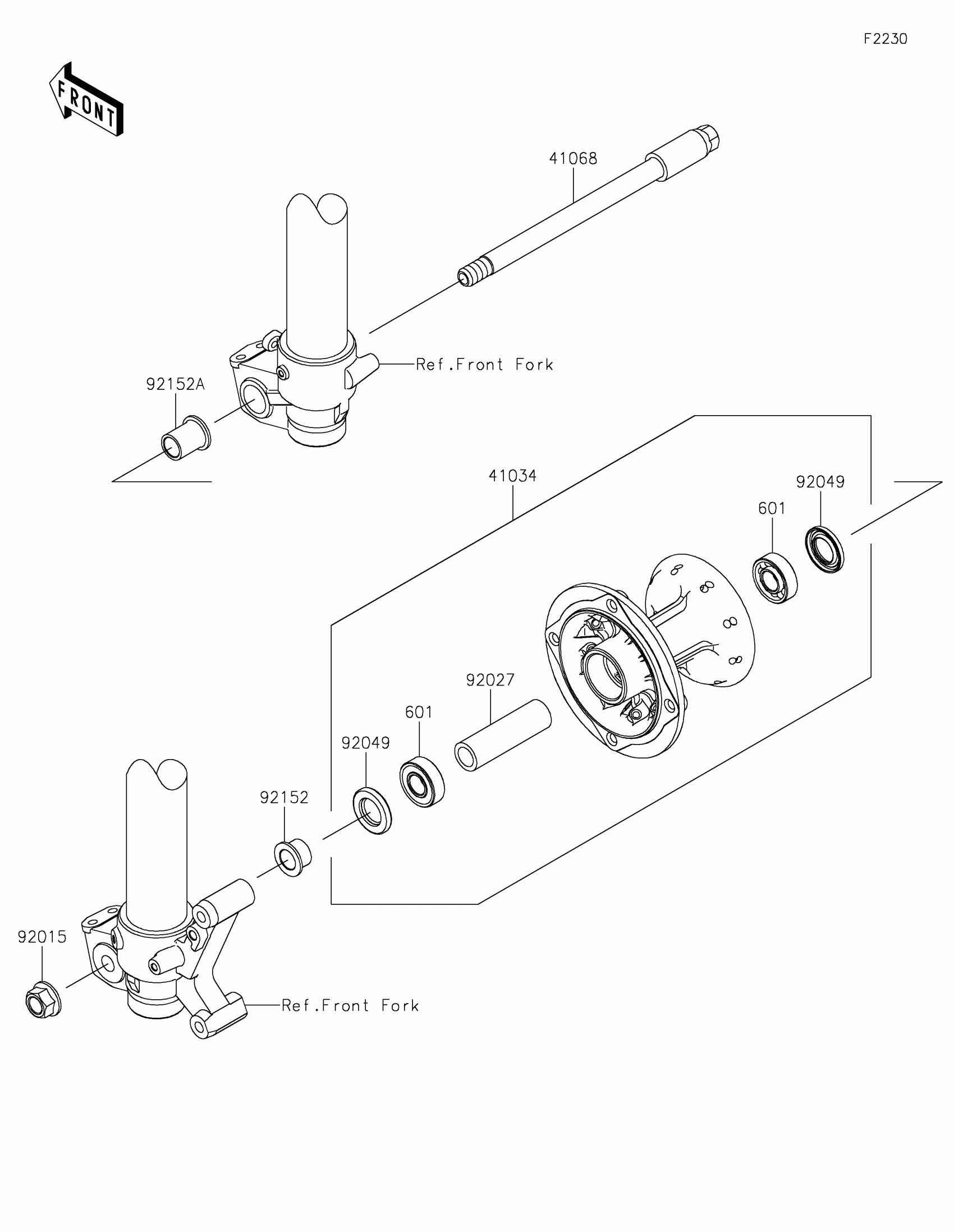

Find the part on the Front Hub diagram for your 2020 Kawasaki KLX®300R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2020 Kawasaki KLX®300R Front Hub Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

41034

DRUM-ASSY,FR

41034-0604

1

$401.45

In stock

41068

AXLE,FR,15X194

41068-0601

1

$104.62

In stock

601

1

$16.17

In stock

92015

NUT,14MM

92015-1407

1

$7.86

In stock

92027

COLLAR,15.2X22.2X75

92027-1958

1

$41.65

In stock

92049

SEAL-OIL

92049-0136

1
Out of stock

92152

COLLAR,FR AXLE,L=14

92152-0528

1

$15.47

In stock

92152A

1

$12.49

In stock
