2021 Kawasaki KLX®300 Throttle Diagram

← All diagrams

Find the part on the Throttle diagram for your 2021 Kawasaki KLX®300, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

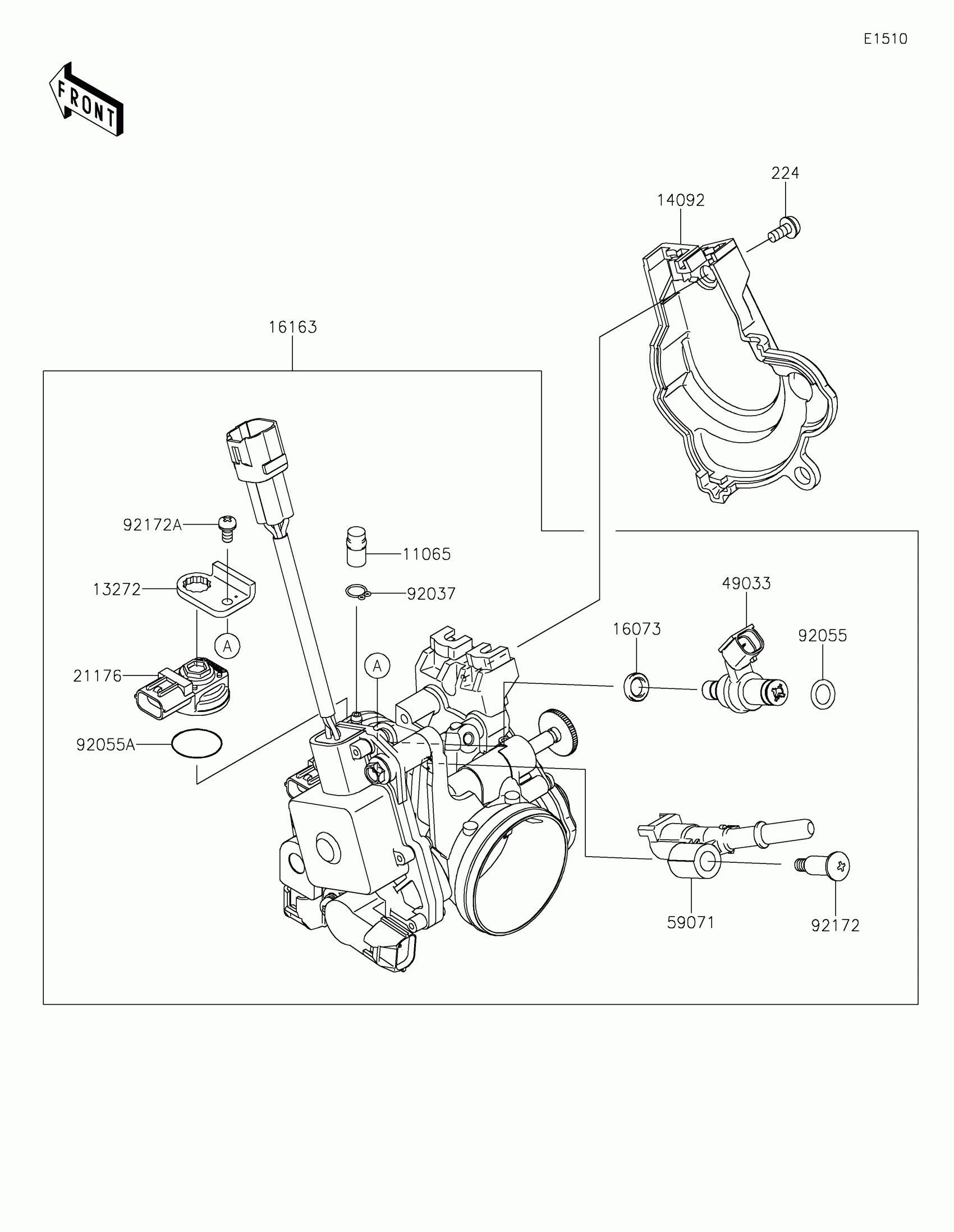

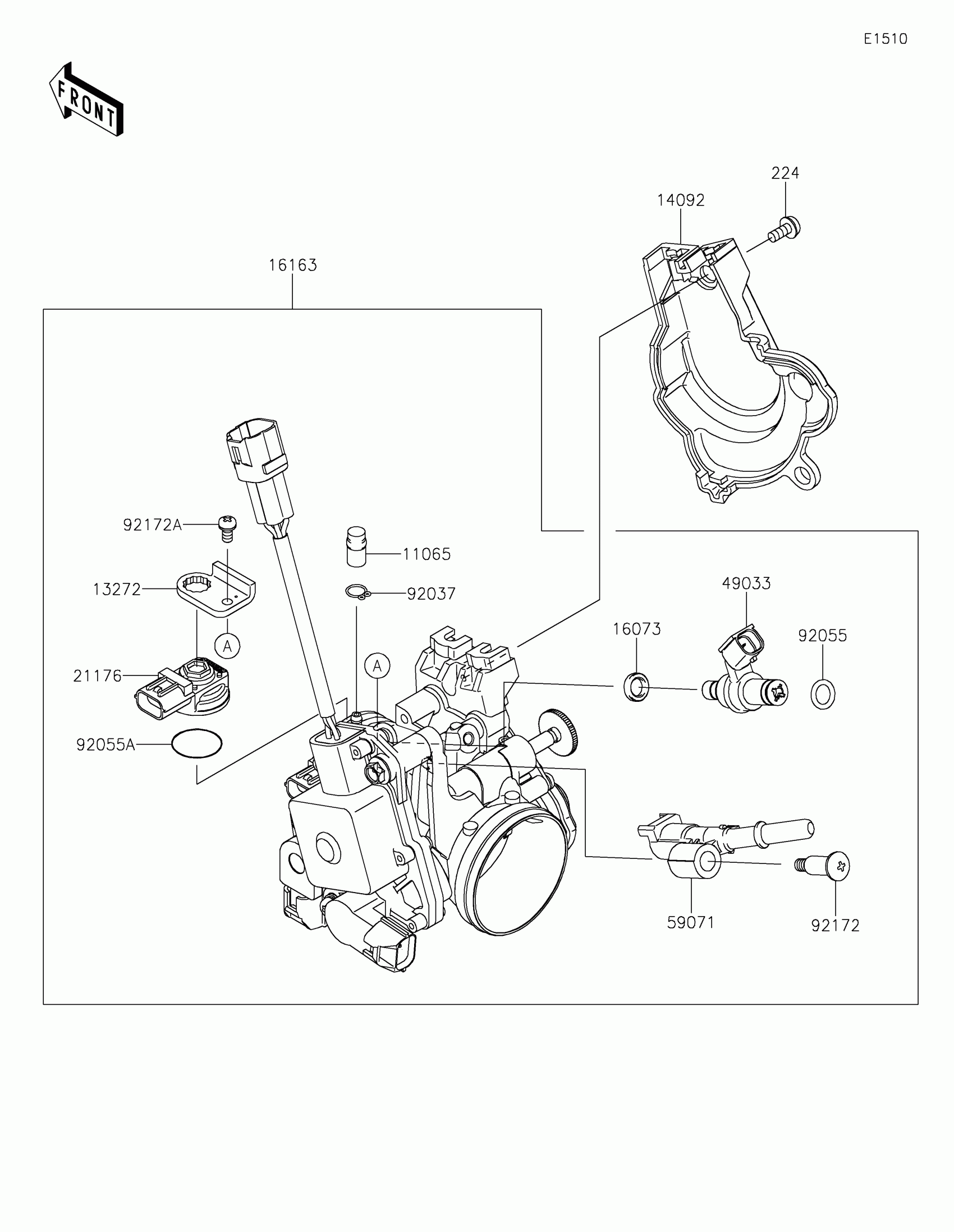

2021 Kawasaki KLX®300 Throttle Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11065

CAP

11065-0018

1

$4.84

In stock

13272

PLATE

13272-0676

1

$14.78

In stock

14092

COVER

14092-0887

1

$29.28

In stock

16073

INSULATOR

16073-0077

1

$7.12

In stock

16163

THROTTLE-ASSY

16163-1245

1

$693.06

In stock

21176

SENSOR

21176-0122

1

$138.38

In stock

49033

NOZZLE-INJECTION

49033-0016

1

$129.38

In stock

59071

JOINT

59071-0063

1

$43.83

In stock

92037

CLAMP,TUBE

92037-1142

1

$3.43

In stock

92055

RING-O

92055-0170

1

$2.41

In stock

92055A

RING-O

92055-0184

1

$3.81

In stock

92172

1

$2.29

In stock

92172A

SCREW

92172-0415

1

$2.58

In stock

224

1

$1.25

In stock
