2023 Kawasaki KLX®300 Fuel Evaporative System Diagram

← All diagrams

Find the part on the Fuel Evaporative System diagram for your 2023 Kawasaki KLX®300, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

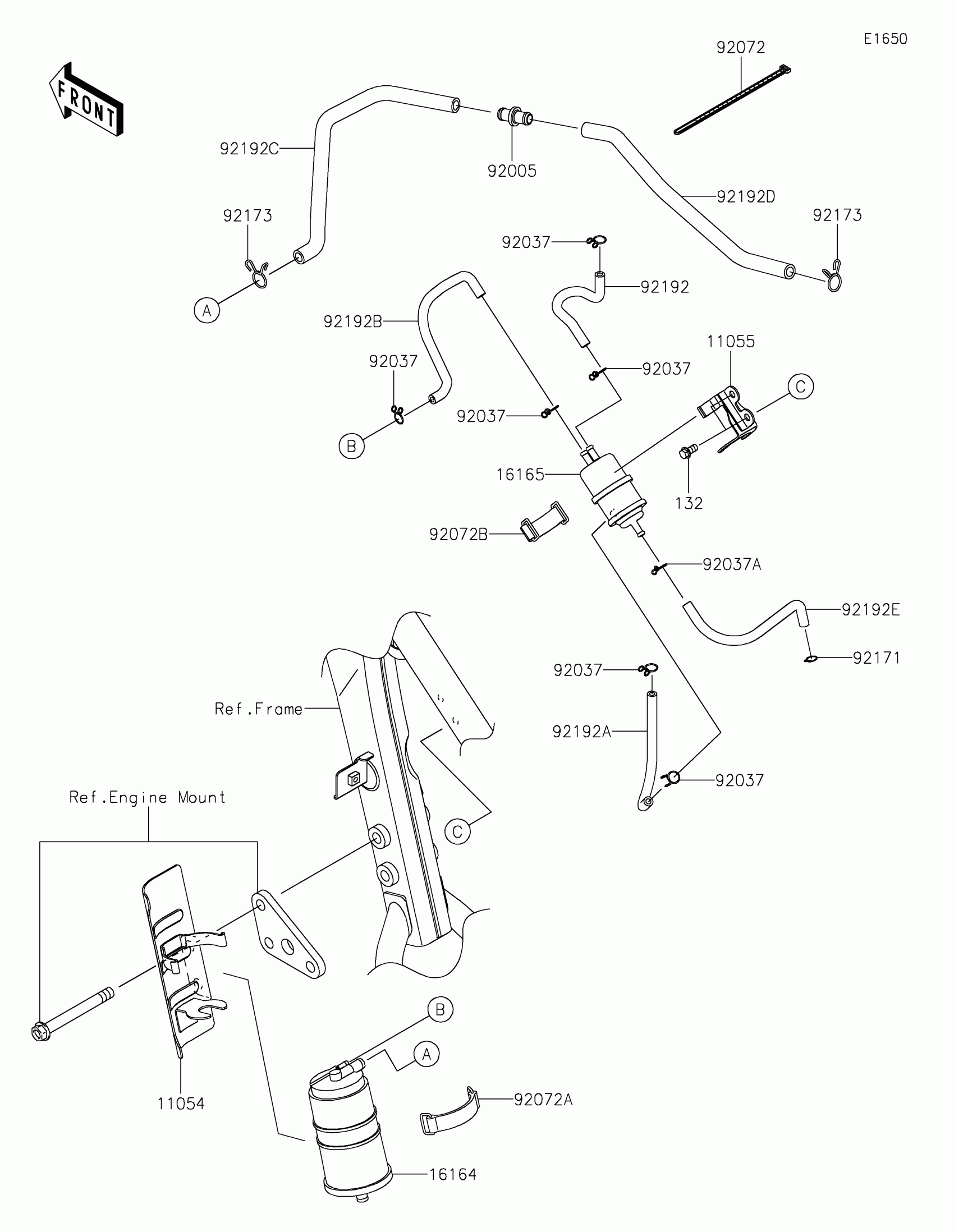

2023 Kawasaki KLX®300 Fuel Evaporative System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11054

BRACKET,CANISTER

11054-1638

1

$24.78

In stock

11055

BRACKET,SEPARATOR

11055-1149

1

$8.25

In stock

16164

CANISTER

16164-0022

1
Out of stock

16165

SEPARATOR

16165-1001

1
Out of stock

92005

FITTING

92005-1379

1
Out of stock

92037

CLAMP,TUBE

92037-147

1
Out of stock

92037A

CLAMP

92037-1712

1
Out of stock

92072

BAND,L=250

92072-1237

1
Out of stock

92072A

BAND,TOOL,L=82

92072-1294

1
Out of stock

92072B

BAND,L=50

92072-1419

1
Out of stock

92171

CLAMP

92171-0573

1

$1.20

In stock

92173

CLAMP,14MM

92173-0192

1
Out of stock

92192

TUBE,TANK-SEPARATOR,BLUE

92192-0722

1
Out of stock

92192A

TUBE,SEPARATOR-TANK,RED

92192-0723

1
Out of stock

92192B

TUBE,SEPARATOR-CANISTER,BLUE

92192-0724

1
Out of stock

92192C

TUBE,CANISTER-FITTING,GRN/WHT

92192-0725

1
Out of stock

92192D

TUBE,FITTING-A/C,GRN/WHT

92192-0726

1
Out of stock

92192E

TUBE,THROBO-SEPARATOR,WHITE

92192-0787

1
Out of stock

132

1

$1.73

In stock
