2021 Kawasaki KLX®300 Clutch Diagram

← All diagrams

Find the part on the Clutch diagram for your 2021 Kawasaki KLX®300, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

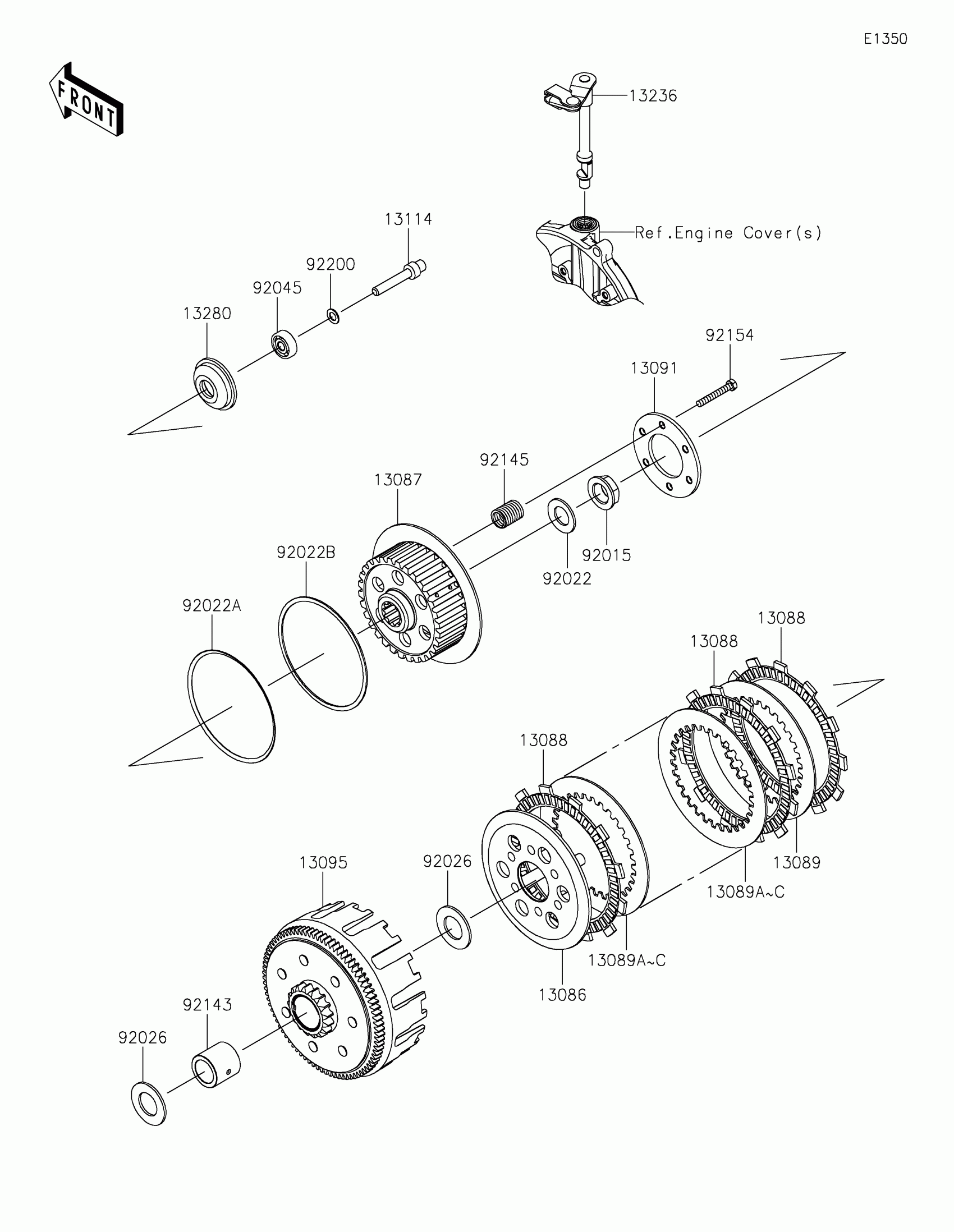

2021 Kawasaki KLX®300 Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13086

WHEEL-CLUTCH

13086-0004

1

$47.99

In stock

13087

HUB-CLUTCH

13087-0045

1

$137.42

In stock

13088

PLATE-FRICTION

13088-0042

1

$14.78

In stock

13089

PLATE-CLUTCH

13089-1085

1

$10.86

In stock

13089A

PLATE-CLUTCH,T=1.6

13089-1094

1

$10.14

In stock

13089B

PLATE-CLUTCH,T=2.0

13089-1116

—

$11.97

In stock

13089C

PLATE-CLUTCH,T=1.2

13089-1117

—

$11.97

In stock

13091

1

$20.69

In stock

13095

HOUSING-COMP-CLUTCH

13095-0576

1

$441.66

In stock

13114

PUSHER-CLUTCH

13114-1068

1

$24.34

In stock

13236

LEVER-COMP

13236-0158

1
Out of stock

13280

1

$13.39

In stock

92015

NUT,16MM

92015-1581

1

$15.43

In stock

92022

WASHER,16.3X29X1.75

92022-1356

1

$5.84

In stock

92022A

WASHER,JUDDER SPRING

92022-1974

1
Out of stock

92022B

WASHER,JUDDER SPRING SEAT

92022-1993

1
Out of stock

92026

SPACER,20.3X36.6X2

92026-0725

1
Out of stock

92045

BEARING-BALL,627

92045-1236

1

$18.51

In stock

92143

COLLAR

92143-1959

1

$30.45

In stock

92145

SPRING

92145-0637

1

$11.15

In stock

92154

BOLT,UPSET,5X35

92154-0065

1

$2.64

In stock

92200

WASHER,7X12.5X0.8

92200-0909

1
Out of stock
