2021 Kawasaki KLX®300 Frame Fittings Diagram

← All diagrams

Find the part on the Frame Fittings diagram for your 2021 Kawasaki KLX®300, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

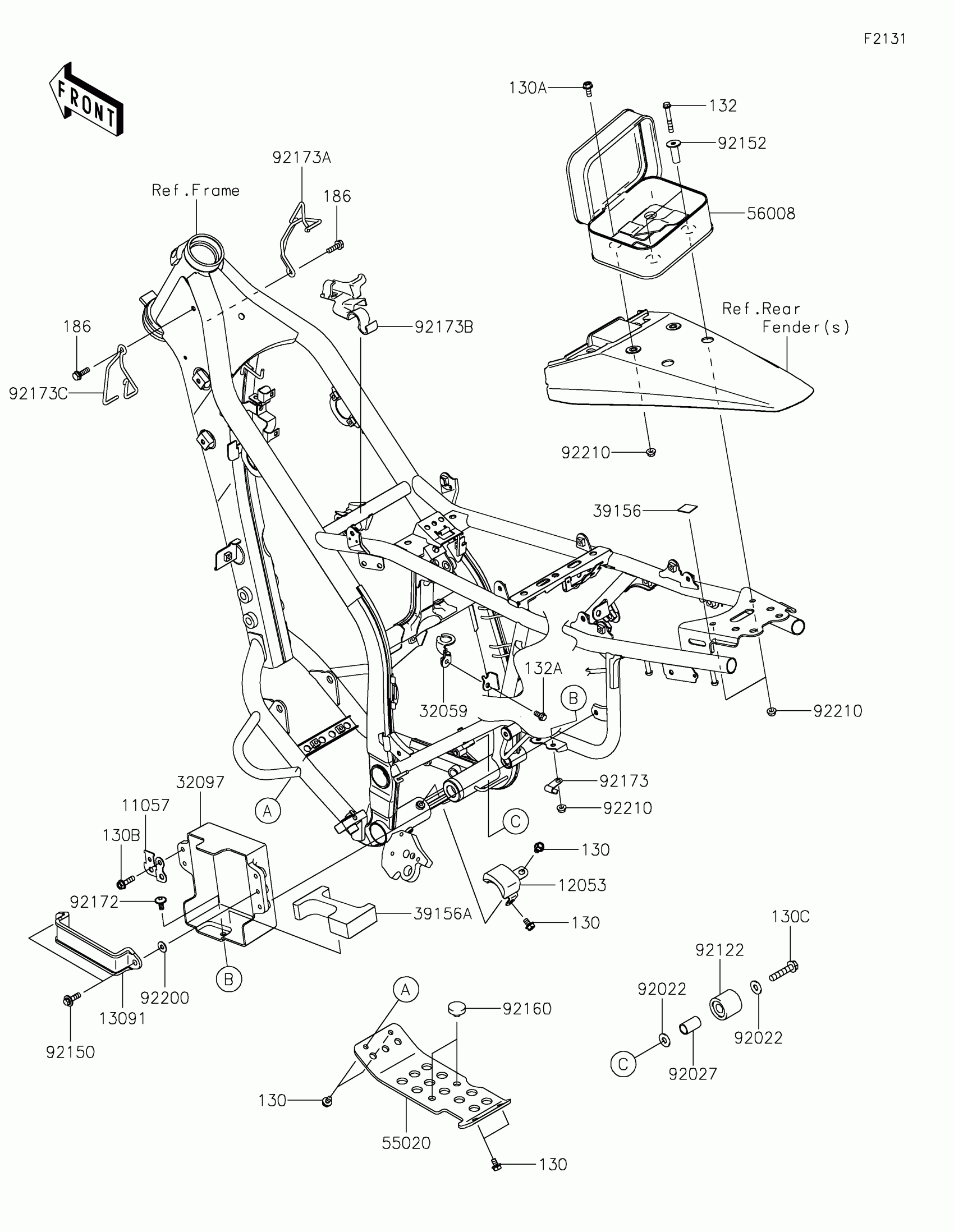

2021 Kawasaki KLX®300 Frame Fittings Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP

11012-1369

1
Out of stock

11057

BRACKET,SIGNAL LAMP RELAY

11057-4270

1
Out of stock

12053

GUIDE-CHAIN

12053-0001

1
Out of stock

13091

HOLDER

13091-1875

1

$7.14

In stock

32059

BRACKET-SWITCH,BRAKE

32059-1117

1
Out of stock

32097

CASE-BATTERY

32097-0001

1
Out of stock

39156

PAD,BATTERY

39156-2766

1
Out of stock

55020

GUARD,ENGINE

55020-1456

1
Out of stock

56008

BAG,TOOL,BLACK

56008-0037-MA

1
Out of stock

92022

WASHER,8.5X20X1.6

92022-1561

1
Out of stock

92027

COLLAR,CHAIN ROLLER

92027-1670

1
Out of stock

92122

ROLLER,CHAIN GUIDE

92122-1153

1
Out of stock

92150

BOLT,6X12

92150-1435

1
Out of stock

92150A

BOLT,FLANGED,6X22

92150-1481

1
Out of stock

92150B

BOLT,FLANGED,6X16

92150-1506

1
Out of stock

92152

COLLAR

92152-0604

1
Out of stock

92153

BOLT,6X45

92153-0003

1
Out of stock

92160

DAMPER

92160-1396

1
Out of stock

92172

SCREW,6X14

92172-0004

1
Out of stock

92173

CLAMP,HARNESS

92173-1368

1
Out of stock

92173A

CLAMP,HARNESS,RH

92173-2206

1
Out of stock

92173B

CLAMP,UNDER TANK

92173-2311

1
Out of stock

92173C

CLAMP,HARNESS,LH

92173-2312

1
Out of stock

92200

WASHER,6.5X16X1.0

92200-0796

1
Out of stock

92210

NUT,FLANGED,6MM

92210-0630

1
Out of stock

130

BOLT-FLANGED,6X22

130BA0622

1

$1.17

In stock

130A

BOLT-FLANGED,8X40

130BA0840

1

$1.68

In stock

132

1

$1.73

In stock

186

BOLT-UPSET-WP,6X20

186BA0620

1
Out of stock
