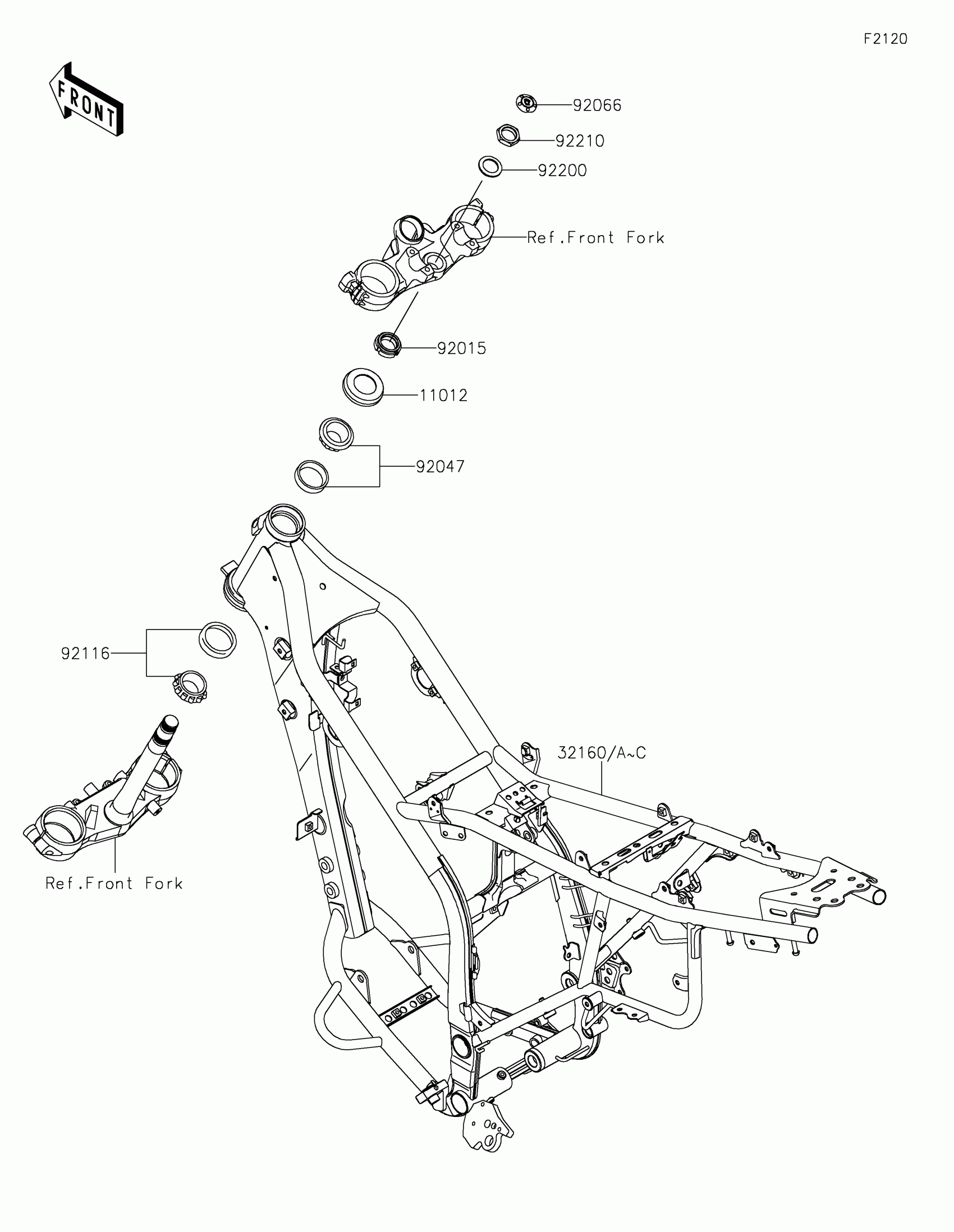

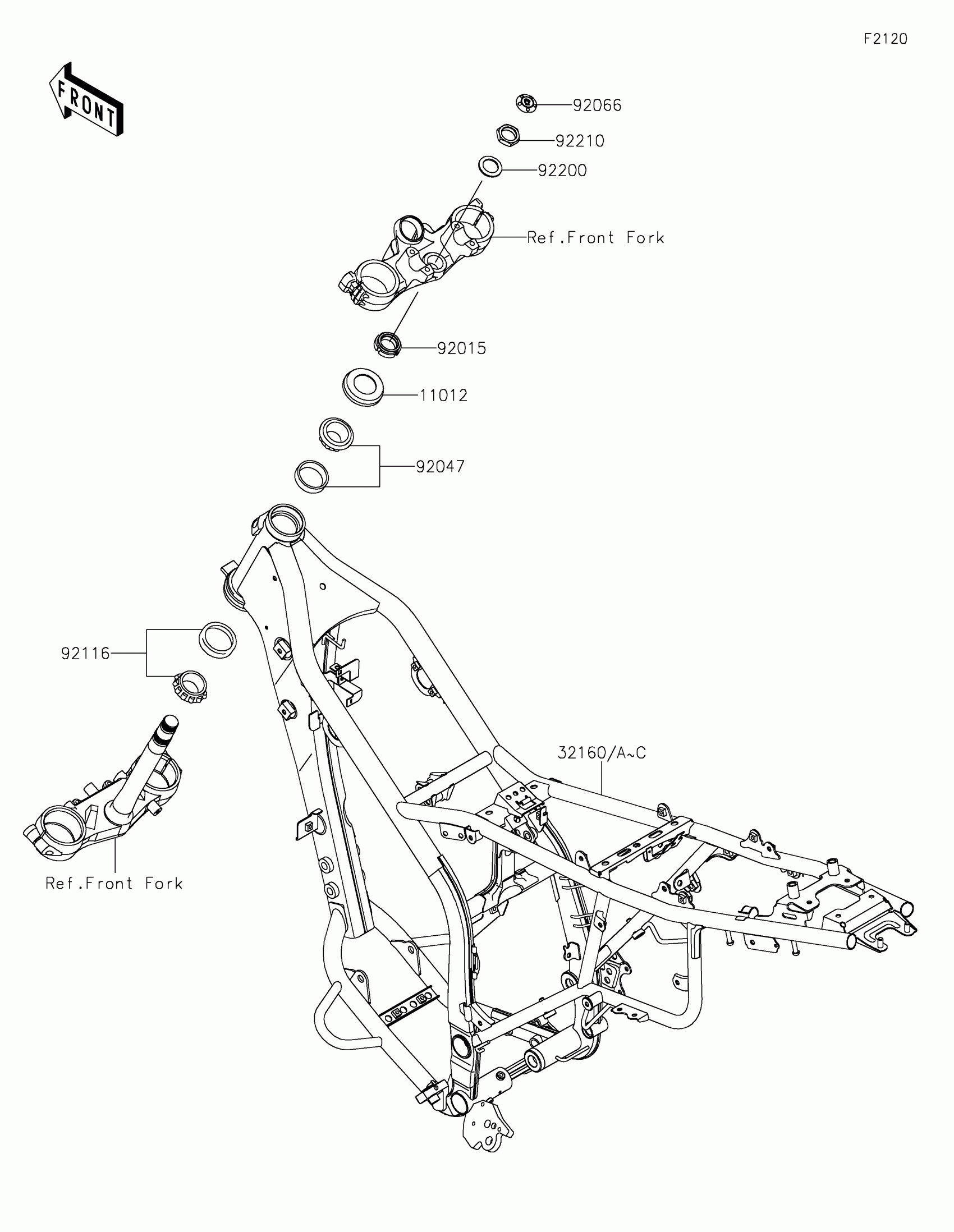

Kawasaki KLX®300 Frame Diagram

#

Description
Price

11012

CAP,STEERING STEM

11012-1762

$5.37

32160

FRAME-COMP,F.S.BLACK

32160-1893-18R

$1,602.30

32160B

FRAME-COMP,F.S.BLACK

32160-1894-18R

$1,602.30

92015

NUT,25MM,T=12

92015-1546

$19.66

92047

RACE,ROLLER,32005JR RS

92047-017

$38.84

92066

PLUG

92066-0162

$4.22

92116

BEARING-ROLLER,HI-CAP32006JRRS

92116-1069

$57.86

92200

WASHER,STEERING STEM

92200-0517

$7.47

92210

NUT,STEERING STEM,22MM

92210-1521

$12.66
