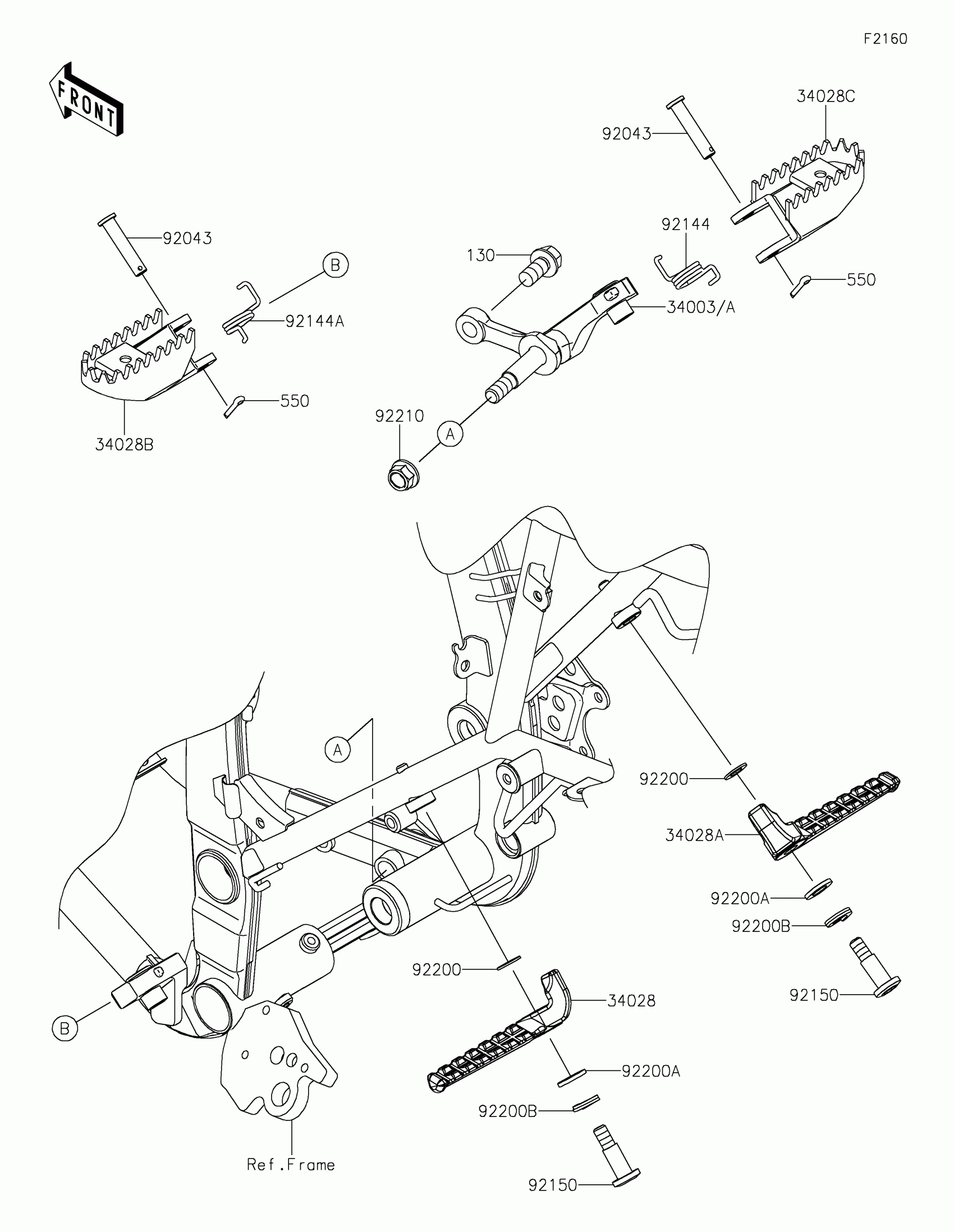

Kawasaki KLX®300 Footrests Diagram

Description

Price

34003

HOLDER-STEP,RH,F.S.BLACK

34003-0084-18R

$122.64

34003A

HOLDER-STEP,RH,P.SILVER

34003-0084-458

$122.64

34028

STEP,RR,LH

34028-0325

$52.41

34028A

STEP,RR,RH

34028-0326

$52.41

34028B

STEP,FR,LH

34028-1361

$42.96

34028C

STEP,FR,RH

34028-1362

$49.47

92043

PIN,8X35.5

92043-115

$9.22

92144

SPRING,STEP RETURN,RH

92144-1685

$7.29

92144A

SPRING,STEP RETURN,LH

92144-1749

$1.32

92150

BOLT,SOCKET,8X34

92150-1584

$7.56

92200

WASHER,8.5X16X1.2

92200-0089

$1.30

92200A

WASHER,10.5X19X2.3

92200-1042

$2.99

92200B

WASHER,SPRING

92200-1133

$9.80

92210

NUT,LOCK,FLANGED,10MM

92210-1080

$7.83

130

BOLT-FLANGED,10X20

130CA1020

$1.76

550

PIN-COTTER,2.5X15

550AA2515

$0.47
