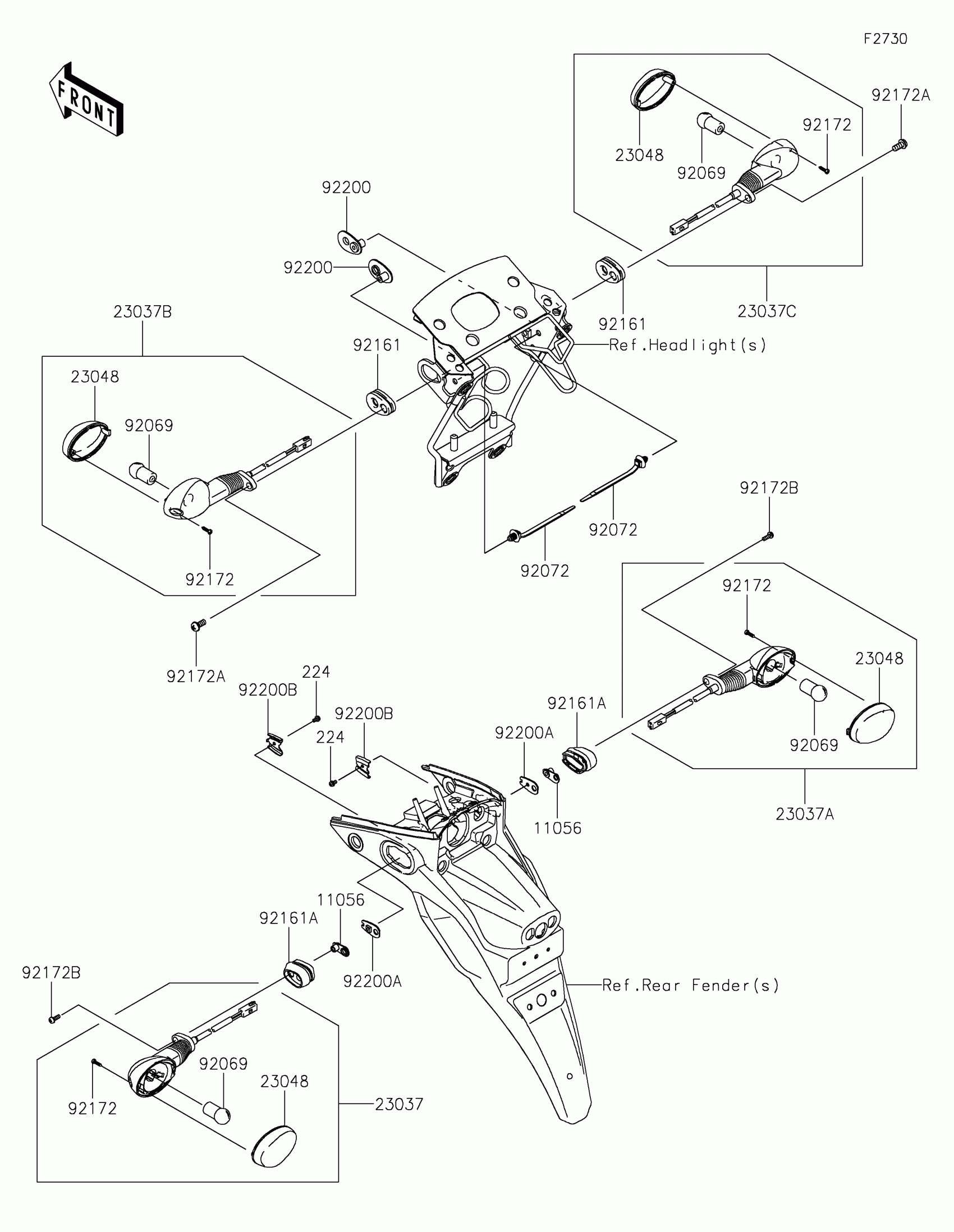

Find the part on the Turn Signals diagram for your 2023 Kawasaki KLX®230SM, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2023 Kawasaki KLX®230SM Turn Signals Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11056

BRACKET,6MM

11056-4156

1
Out of stock

23037

LAMP-ASSY-SIGNAL,RR,LH

23037-0418

1
Out of stock

23037A

LAMP-ASSY-SIGNAL,RR,RH

23037-0419

1
Out of stock

23037B

LAMP-ASSY-SIGNAL,FR,LH

23037-0456

1
Out of stock

23037C

LAMP-ASSY-SIGNAL,FR,RH

23037-0457

1
Out of stock

23048

LENS-SIGNAL LAMP

23048-0035

1
Out of stock

92069

BULB,12V 10W

92069-0106

1
Out of stock

92072

BAND,OS170-FT7(BLACK)

92072-1414

1
Out of stock

92161

DAMPER,MOUNT,FR

92161-2113

1
Out of stock

92161A

DAMPER

92161-2287

1
Out of stock

92172

SCREW,TAPPING,2.9X13

92172-0343

1
Out of stock

92172A

SCREW,6X14

92172-0497

1
Out of stock

92172B

SCREW-PAN-WP-CROS,6X14

92172-1256

1
Out of stock

92200

WASHER

92200-0874

1
Out of stock

92200A

WASHER,W/NUT,M4

92200-1978

1
Out of stock

92200B

WASHER

92200-1979

1
Out of stock

224

SCREW-PAN-WP-CROS,4X8

224AB0408

1
Out of stock
