2023 Kawasaki KLX®230SM Chassis Electrical Equipment Diagram

← All diagrams

Find the part on the Chassis Electrical Equipment diagram for your 2023 Kawasaki KLX®230SM, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

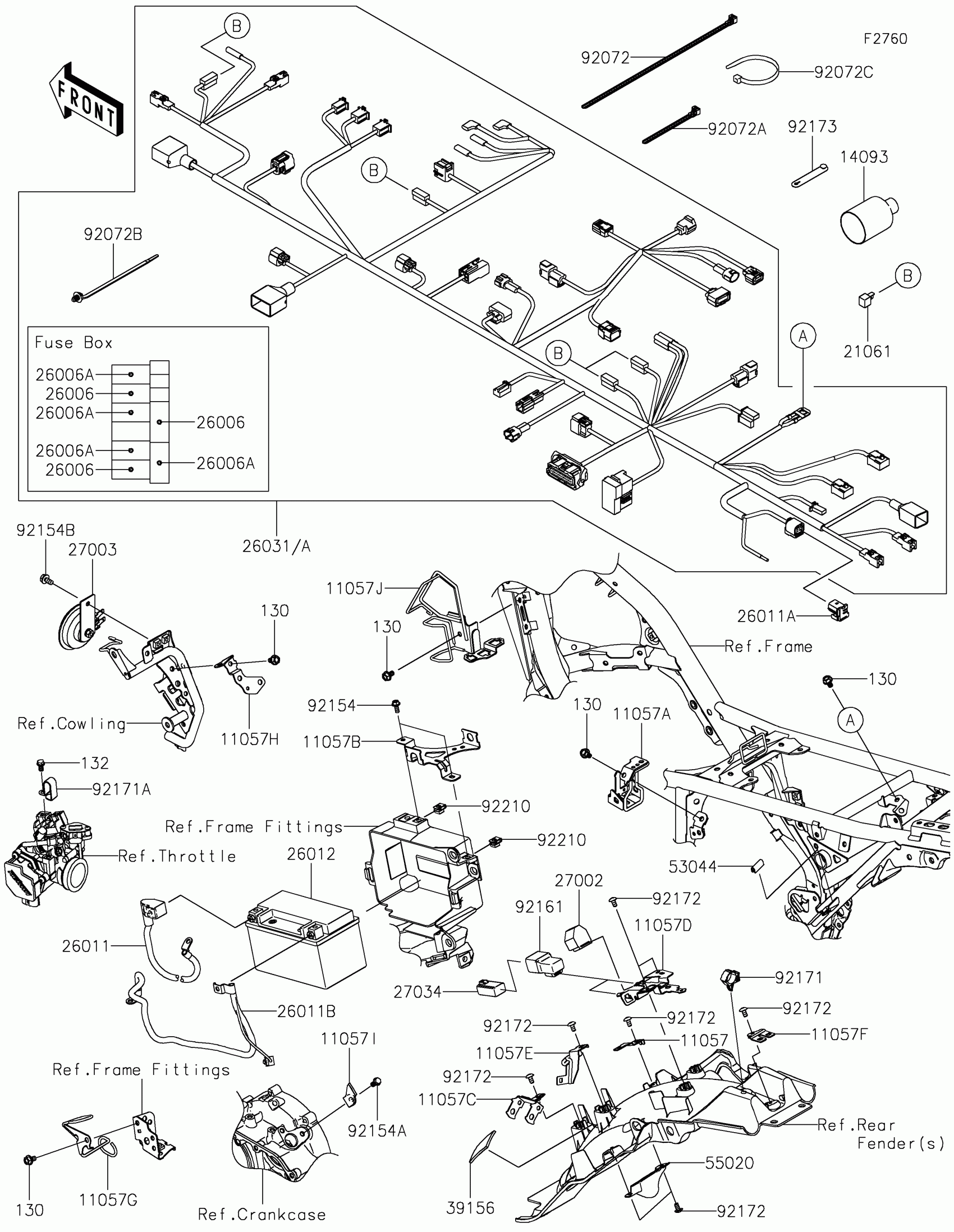

2023 Kawasaki KLX®230SM Chassis Electrical Equipment Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET,DIAG

11057-2018

1
Out of stock

11057A

BRACKET,VEHICLE DOWN SENSOR

11057-2021

1
Out of stock

11057B

BRACKET,ECU

11057-2022

1
Out of stock

11057C

BRACKET,MAGNETIC SWITCH

11057-2348

1
Out of stock

11057D

BRACKET,RELAY

11057-2349

1
Out of stock

11057E

BRACKET,FUSE BOX

11057-2350

1
Out of stock

11057F

BRACKET,RR HARNESS

11057-2351

1
Out of stock

11057G

BRACKET

11057-2463

1
Out of stock

11057H

BRACKET,ENGINE START SWITCH

11057-2520

1
Out of stock

11057I

BRACKET

11057-7929

1
Out of stock

11057J

BRACKET,FR HARNESS

11057-7930

1
Out of stock

14093

COVER,HARNESS

14093-0720

1
Out of stock

21061

RECTIFIER

21061-1003

1
Out of stock

26006

FUSE,MINI BLADE,15A,BLUE

26006-0001

1
Out of stock

26006A

FUSE,MINI BLADE,10A,RED

26006-1078

1
Out of stock

26011

WIRE-LEAD,BATTERY(+)

26011-1880

1
Out of stock

26011A

WIRE-LEAD,DIAG CONNECTOR

26011-1901

1
Out of stock

26011B

WIRE-LEAD,BATTERY(-)

26011-1915

1
Out of stock

26012

BATTERY,YTX7A-BS,12V 6.3AH

26012-0989

1
Out of stock

26031

HARNESS,MAIN

26031-3857

1
Out of stock

26031A

HARNESS,MAIN

26031-3858

1
Out of stock

27002

RELAY-ASSY,TURN SIGNAL

27002-0031

1
Out of stock

27003

HORN

27003-0155

1
Out of stock

27034

RELAY

27034-0012

1
Out of stock

39156

PAD,55X30X5

39156-2451

1
Out of stock

53044

TRIM,9X6.5X20

53044-0596

1

$3.68

In stock

55020

GUARD,OXYGEN SENSOR

55020-2254

1
Out of stock

92072

BAND,L=250

92072-1237

1
Out of stock

92072A

BAND,L=140

92072-1293

1
Out of stock

92072B

BAND,OS170-FT7(BLACK)

92072-1414

—
Out of stock

92072C

BAND,L=152

92072-3874

1
Out of stock

92154

BOLT,FLANGED,5X12

92154-1215

1
Out of stock

92154A

BOLT,FLANGED,6X12

92154-1776

1
Out of stock

92154B

BOLT,FLANGED,6X12

92154-2776

1
Out of stock

92161

DAMPER

92161-2290

1
Out of stock

92171

CLAMP,BRAKE HOSE

92171-0316

1

$3.08

In stock

92171A

CLAMP

92171-0911

1
Out of stock

92172

SCREW,CROS,5X10

92172-1255

1
Out of stock

92173

CLAMP

92173-2199

1
Out of stock

92210

NUT,PLATE,5MM

92210-0262

1
Out of stock

130

BOLT-FLANGED,6X10

130BA0610

1

$1.12

In stock

132

1

$1.47

In stock
