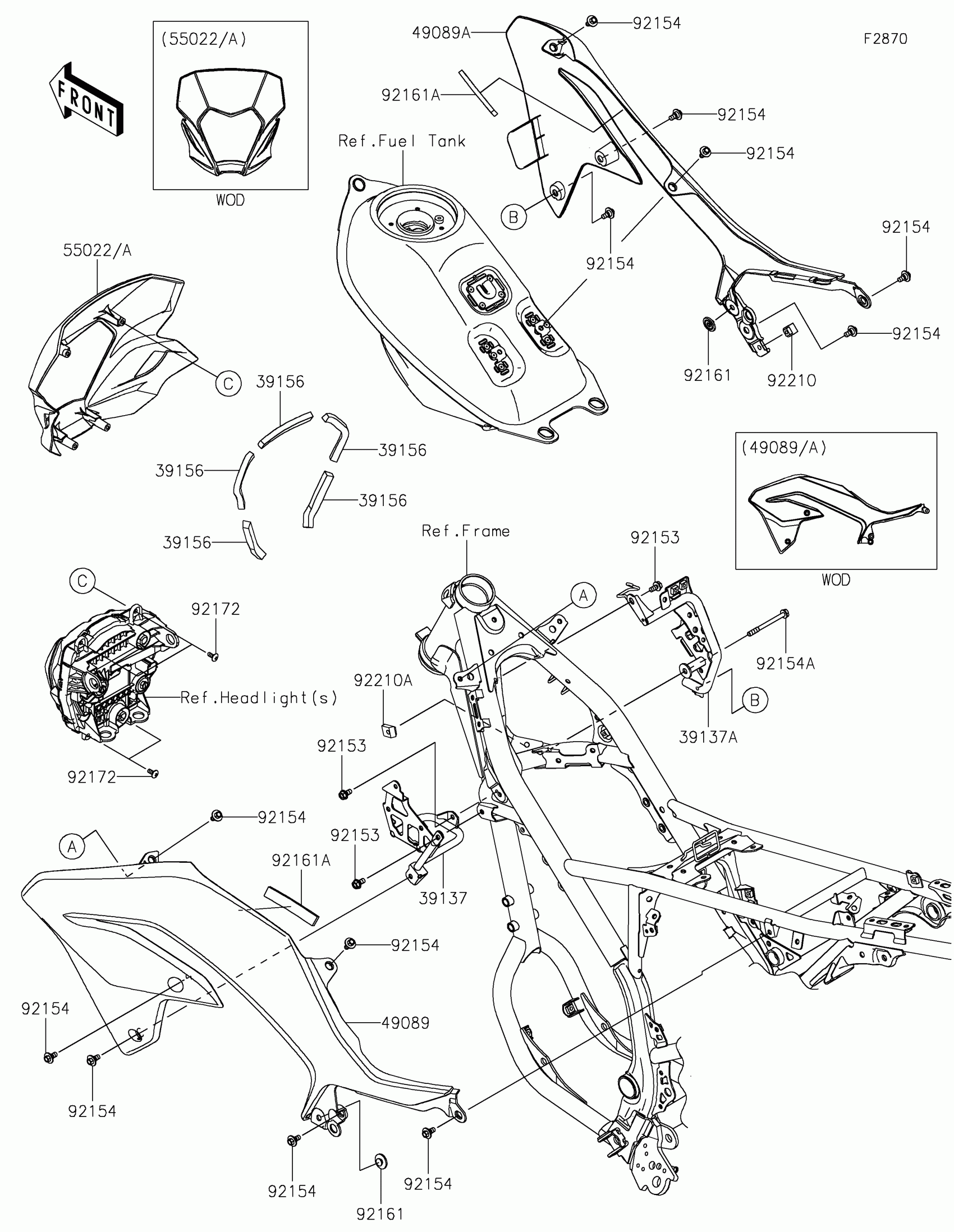

Kawasaki KLX®230SM Cowling Diagram

Description

Price

39137

STAY-COMP,LH,F.S.BLACK

39137-0704-18R

$90.79

39137A

STAY-COMP,RH,F.S.BLACK

39137-0706-18R

$115.01

39156

PAD,100X10X10

39156-2827

$1.46

49089

SHROUD-ENGINE,LH,EBONY

49089-0957-68L

$54.51

49089A

SHROUD-ENGINE,RH,EBONY

49089-0958-68L

$54.51

55022

COVER-HEAD LAMP,O.BLUE

55022-0329-274

$54.00

55022A

COVER-HEAD LAMP,L.GREEN

55022-0329-290

Unavailable

92153

BOLT,FLANGED,6X12

92153-1283

$1.73

92154

BOLT,FLANGED,6X9

92154-0546

$2.84

92154A

BOLT-FLANGED,6X70

92154-4093

$4.31

92161

DAMPER,8X22X10

92161-1685

$0.74

92161A

DAMPER,70X15X6

92161-1838

$2.59

92172

SCREW,5X12

92172-1095

Unavailable

92210

NUT,6MM

92210-0218

$1.81

92210A

NUT

92210-1771

$20.47
