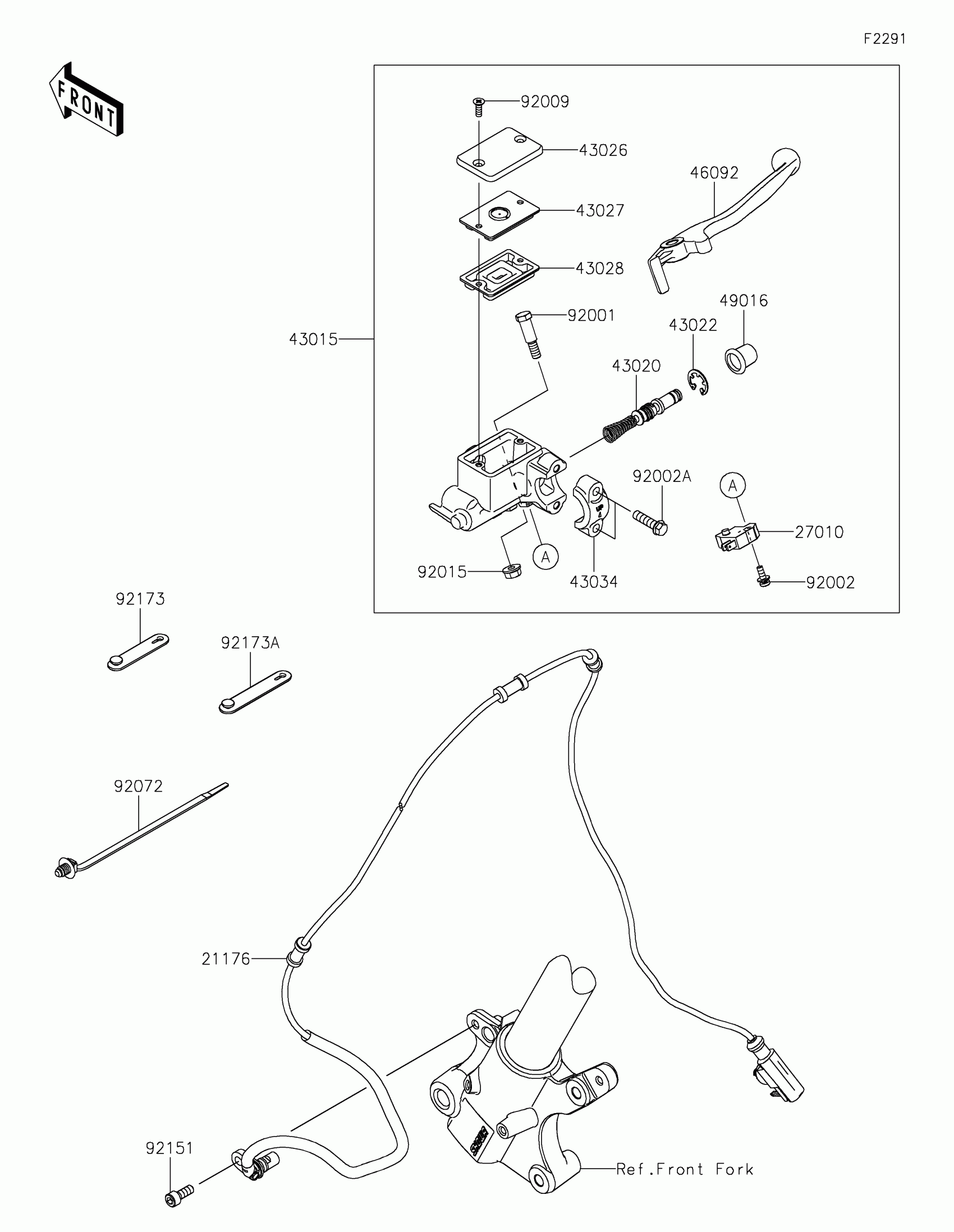

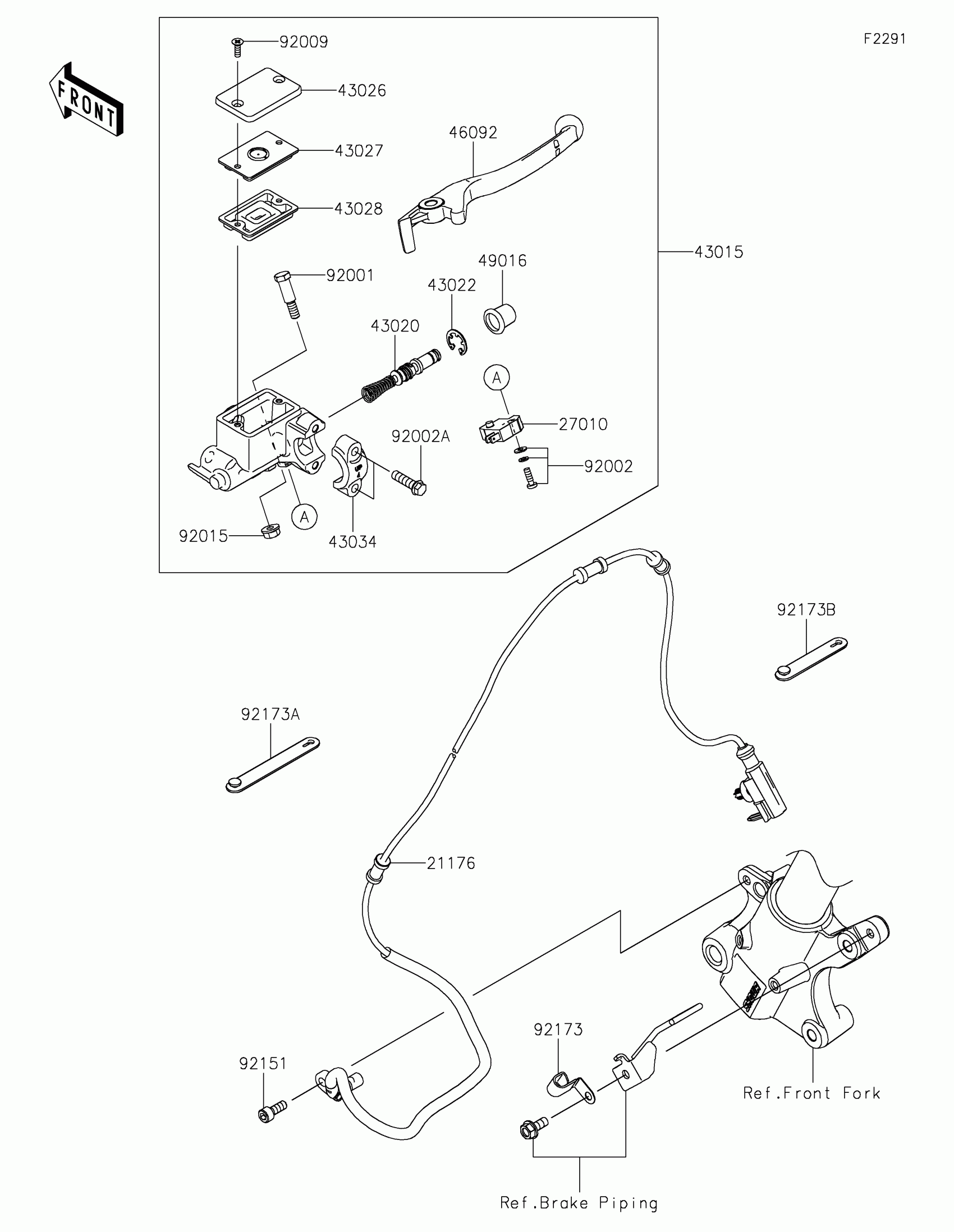

Kawasaki KLX®230SM ABS Front Master Cylinder Diagram

Description

Price

21176

SENSOR,SPEED,FR

21176-1159

$271.24

27010

SWITCH,BRAKE

27010-0873

Unavailable

43015

CYLINDER-ASSY-MASTER,FR

43015-0741

$229.36

43020

PISTON-COMP-BRAKE

43020-0034

$52.23

43022

STOPPER-BRAKE,PISTON

43022-0004

$4.14

43026

CAP-BRAKE

43026-1082

$19.58

43027

PLATE-DIAPHRAGM

43027-1057

$3.69

43028

DIAPHRAGM

43028-1061

$12.27

43034

HOLDER-BRAKE,MASTER CYLINDER

43034-1016

$14.67

46092

LEVER-GRIP,FRONT BRAKE

46092-0044

$31.39

49016

COVER-SEAL,MASTER CYLINDER

49016-1044

$6.62

92001

BOLT,FRONT BRAKE LEVER

92001-1728

$10.80

92002

BOLT,SCREW,4X12

92002-1323

$2.99

92002A

BOLT

92002-1894

$4.18

92009

SCREW,4MM

92009-1458

$2.23

92015

NUT,FLANGED,6MM,BLACK

92015-1233

$4.18

92072

BAND,OS170-FT7(BLACK)

92072-1414

$2.84

92151

BOLT

92151-1166

$1.88

92173

CLAMP

92173-2198

$1.32

92173A

CLAMP

92173-2199

$1.32
