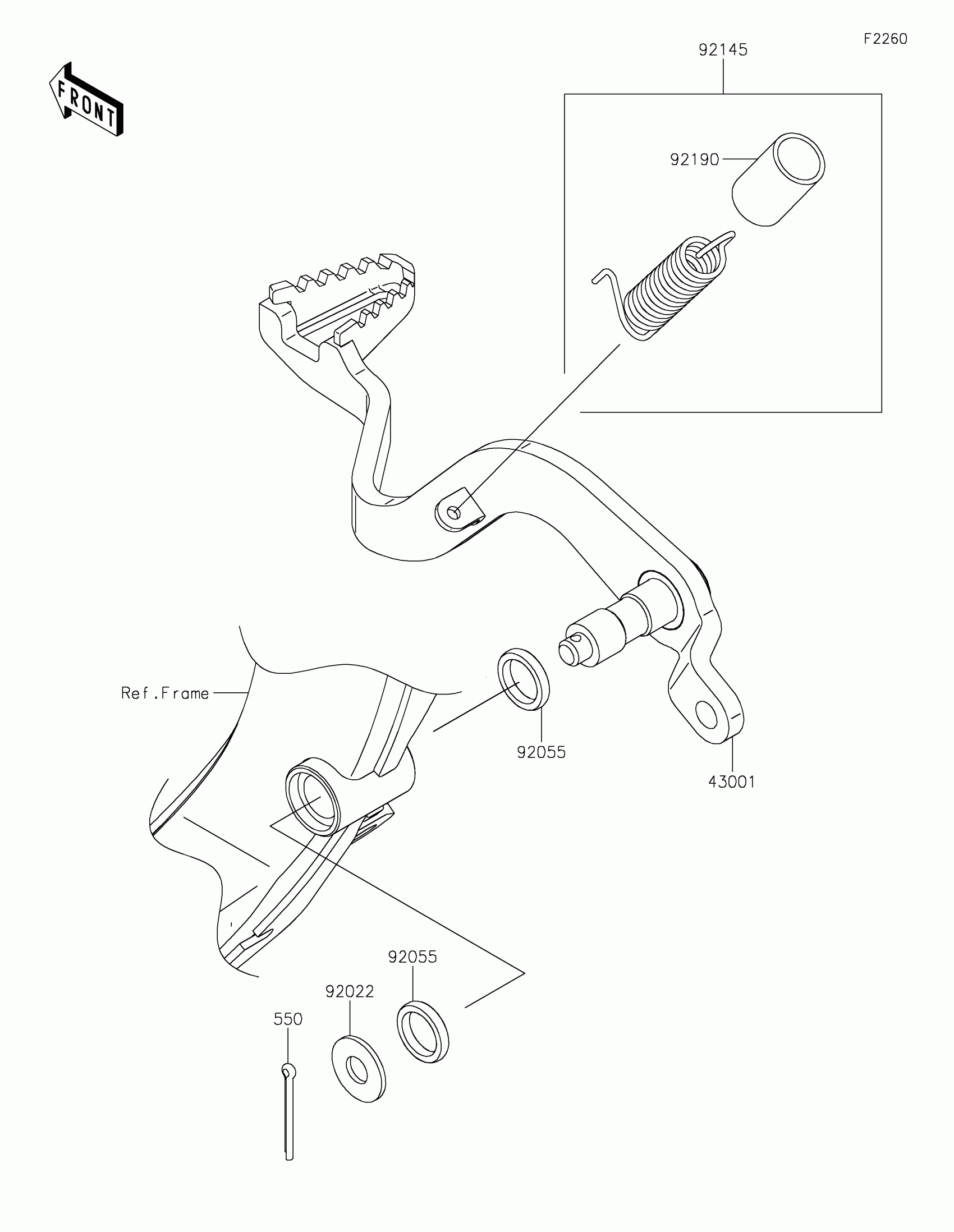

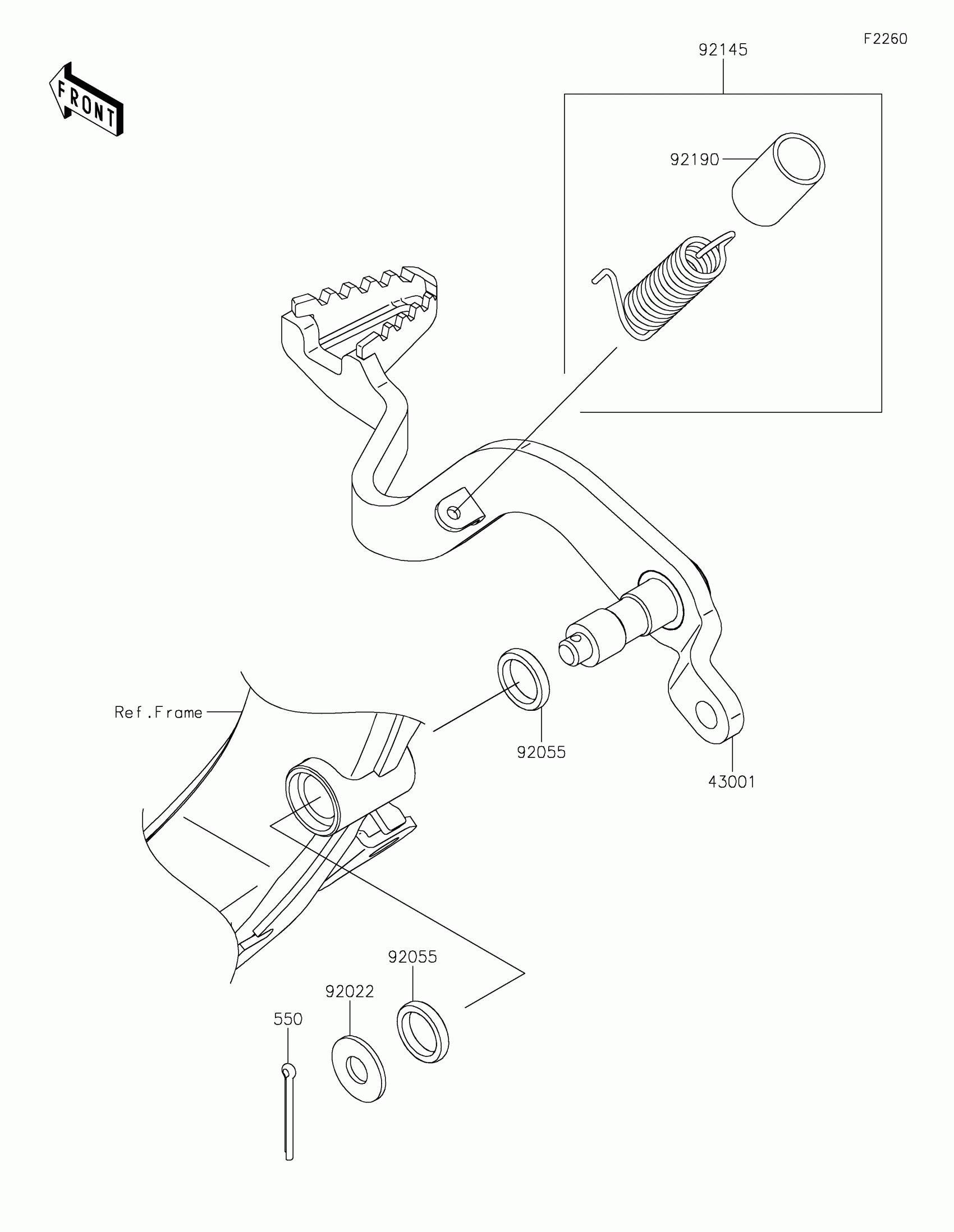

Kawasaki KLX®230SM ABS Brake Pedal Diagram

#

Description

Price

43001

LEVER-BRAKE

43001-0776

$58.80

92022

WASHER,8.5X20X1.6

92022-1561

$3.43

92055

RING-O,13.1X2.7

92055-0768

$14.90

92145

SPRING,BRAKE PEDAL RETURN

92145-1867

$7.80

92190

TUBE,13X16X25

92190-1488

$3.11

550

PIN-COTTER,2.5X25

550AA2525

$1.22
