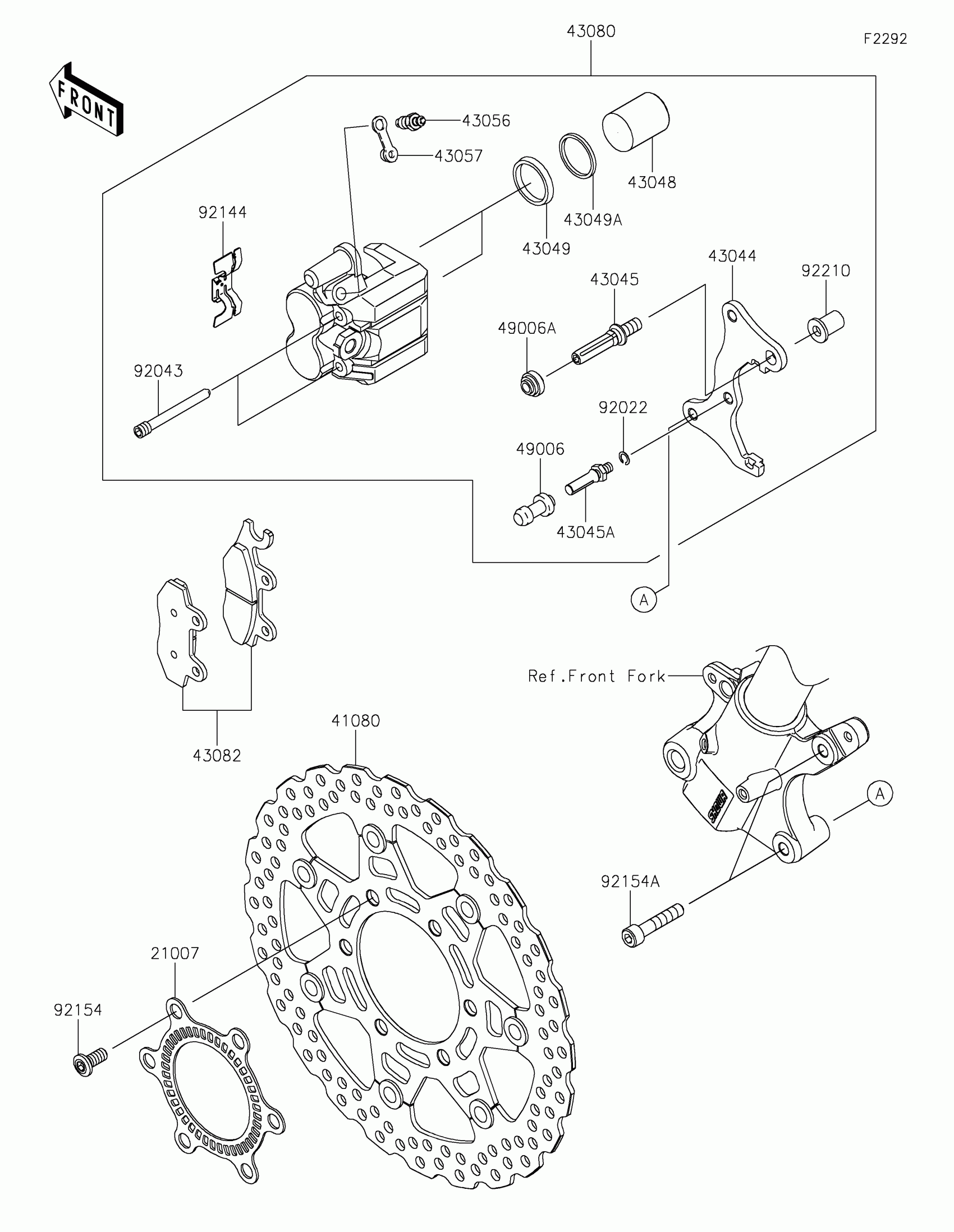

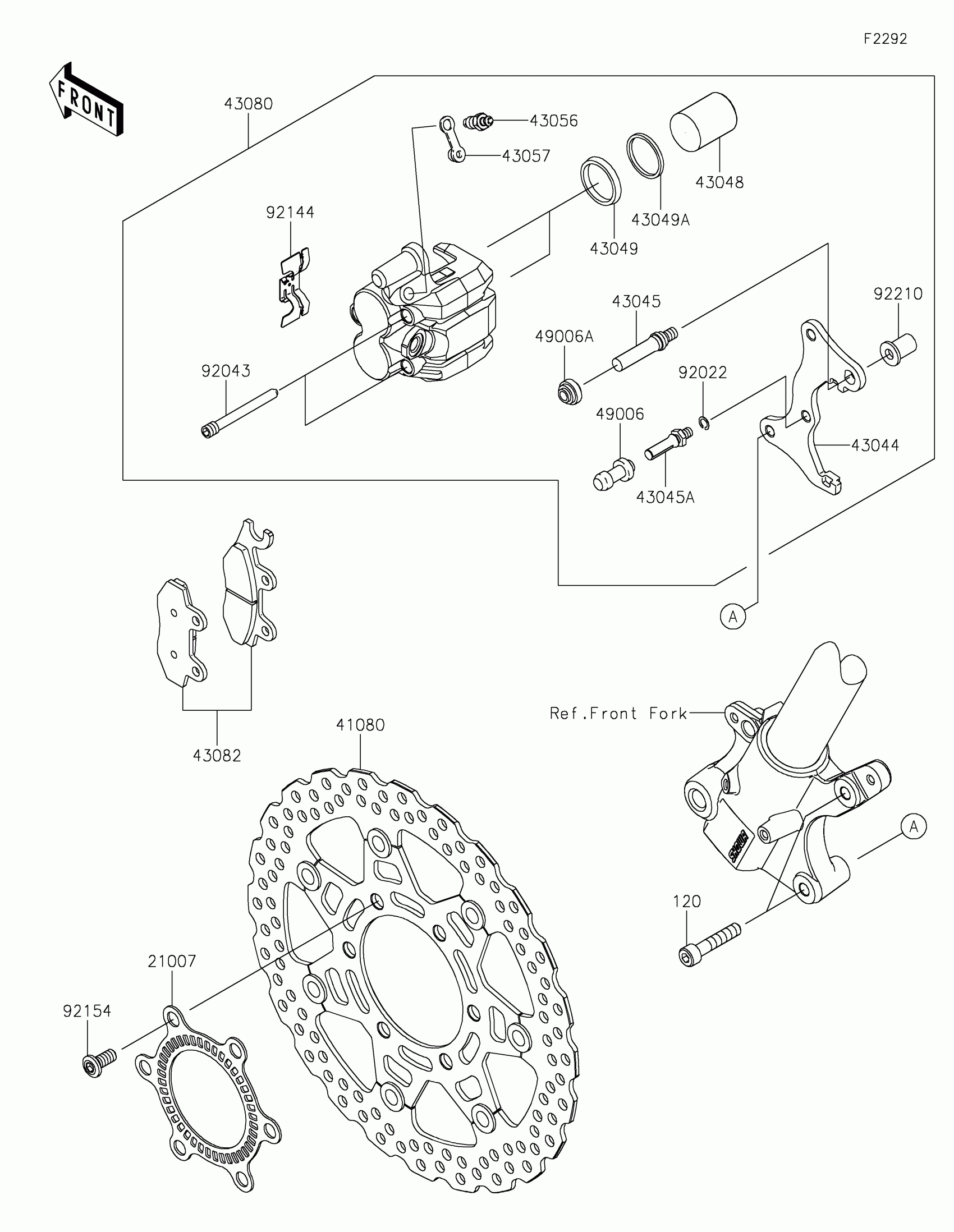

Kawasaki KLX®230SM ABS Front Brake Diagram

Description

Price

21007

ROTOR,SENSOR

21007-0683

$91.54

41080

DISC,FR

41080-0740

$306.03

43044

HOLDER-COMP-CALIPER,FR,LH

43044-0026

$160.14

43045

SHAFT-CALIPER

43045-0013

$19.49

43045A

SHAFT-CALIPER

43045-1010

$19.49

43048

PISTON-CALIPER

43048-0010

$47.25

43049

PACKING,PISTON SEAL

43049-1060

$15.29

43049A

PACKING,PISTON SEAL

43049-1061

$8.38

43056

BREATHER-BRAKE

43056-0004

$12.83

43057

CAP-BREATHER

43057-1001

$3.89

43080

CALIPER-SUB-ASSY,FR

43080-0243

$340.91

43082

PAD-ASSY-BRAKE

43082-0060

$62.44

49006

BOOT,CALIPER

49006-1088

$9.20

49006A

BOOT,CALIPER

49006-1242

$4.34

92022

WASHER,WAVE

92022-1373

$3.53

92043

PIN,HANGER

92043-1416

$14.60

92144

SPRING,PAD

92144-1847

$30.92

92154

BOLT,SOCKET,8X18

92154-3951

$3.47

92210

NUT

92210-0615

$5.46

120

BOLT-SOCKET,8X40

120CC0840

$2.12
