2022 Kawasaki KLX®230S ABS Rear Brake Diagram

← All diagrams

Find the part on the Rear Brake diagram for your 2022 Kawasaki KLX®230S ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

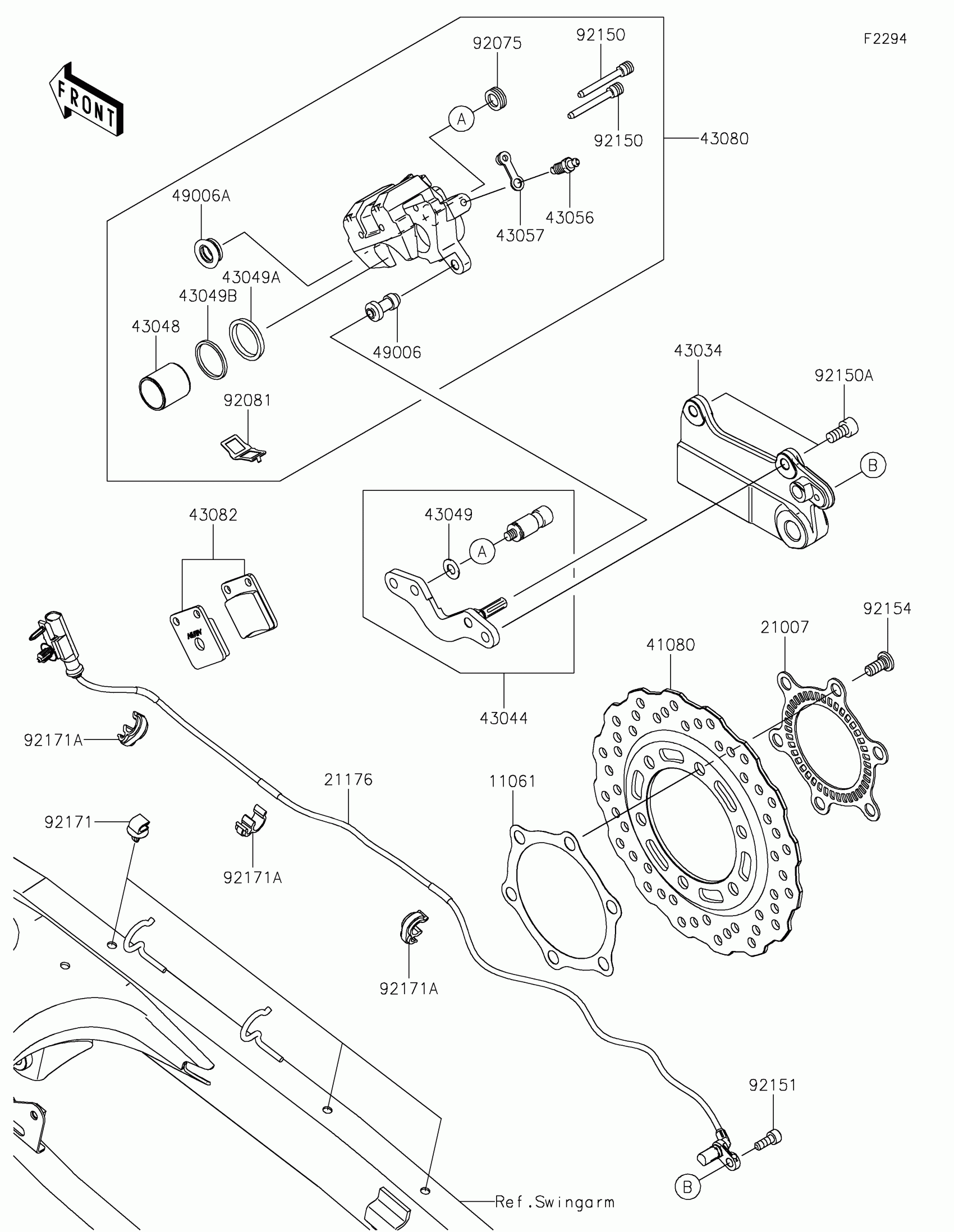

2022 Kawasaki KLX®230S ABS Rear Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11061

GASKET,DISC

11061-1349

1

$34.44

In stock

21007

ROTOR,SENSOR

21007-0683

1

$91.54

In stock

21176

SENSOR,SPEED,RR

21176-0905

1

$264.90

In stock

41080

DISC,RR

41080-0702

1

$200.23

In stock

43034

HOLDER-BRAKE

43034-0160

1

$101.53

In stock

43044

1

$50.69

In stock

43048

PISTON-CALIPER

43048-1090

1

$68.10

In stock

43049

PACKING

43049-1025

1

$4.80

In stock

43049A

PACKING,PISTON SEAL

43049-1060

1

$15.29

In stock

43049B

PACKING,PISTON SEAL

43049-1061

1

$8.38

In stock

43056

BREATHER-BRAKE

43056-0004

1

$12.83

In stock

43057

CAP-BREATHER

43057-1001

1

$3.89

In stock

43080

CALIPER-SUB-ASSY,RR

43080-0078

1

$129.45

In stock

43082

PAD-ASSY-BRAKE

43082-0159

1

$100.23

In stock

49006

BOOT,CALIPER

49006-1088

1

$9.20

In stock

49006A

BOOT,CALIPER

49006-1089

1

$5.88

In stock

92075

DAMPER

92075-1414

1

$7.25

In stock

92081

SPRING,PAD

92081-1502

1

$8.31

In stock

92150

BOLT

92150-1144

1

$7.86

In stock

92150A

BOLT,SOCKET,8X16

92150-1840

1

$3.75

In stock

92151

BOLT

92151-1166

1

$1.88

In stock

92154

BOLT,SOCKET,8X18

92154-3951

1

$3.47

In stock

92171

CLAMP

92171-0640

1

$3.51

In stock

92171A

CLAMP,BRAKE HOSE

92171-1819

1

$4.85

In stock
