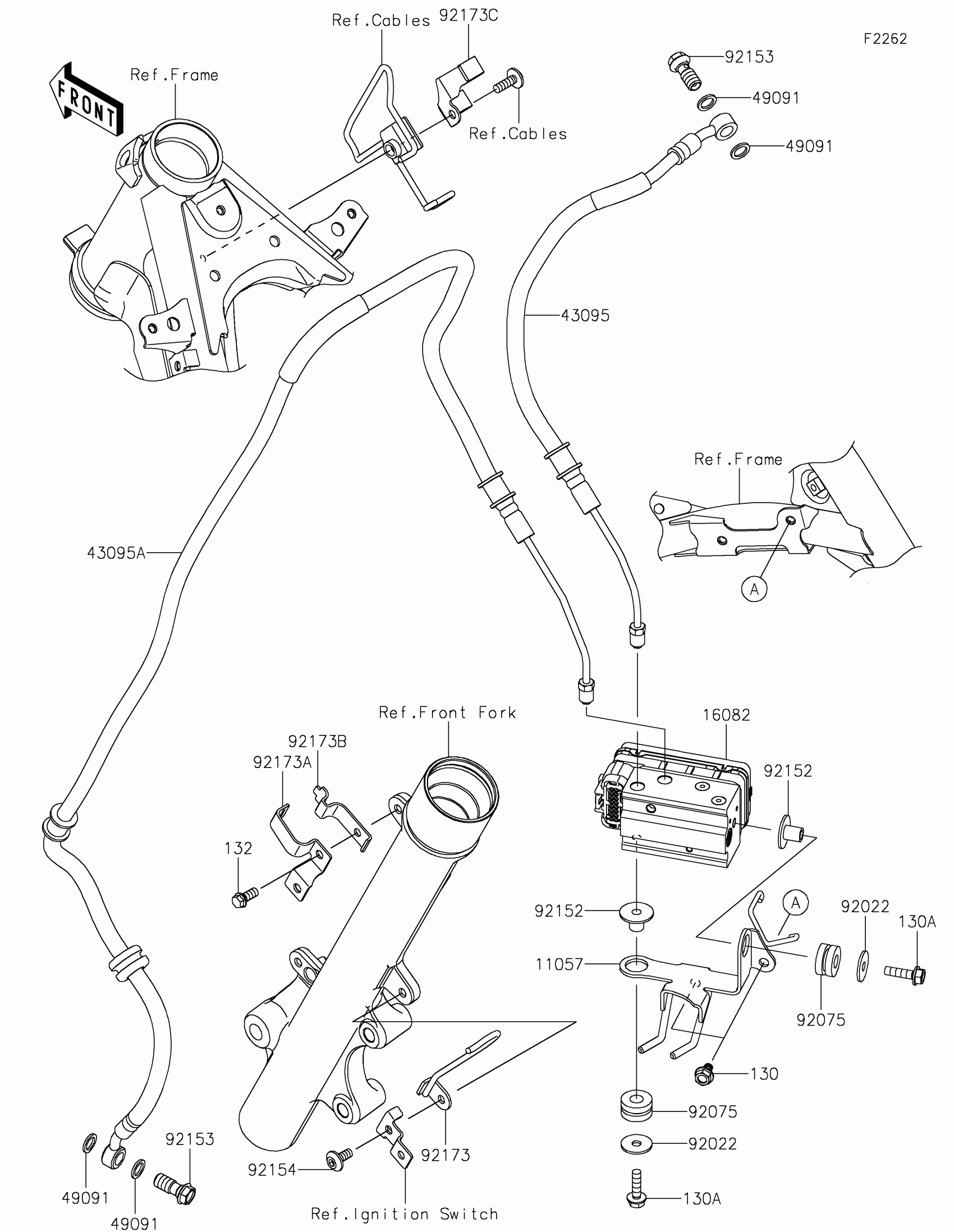

Find the part on the Brake Piping diagram for your 2022 Kawasaki KLX®230S ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2022 Kawasaki KLX®230S ABS Brake Piping Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET,ABS UNIT

11057-2358

1

$19.81

In stock

16082

1

$1,435.72

In stock

43095

1

$249.14

In stock

43095A

1

$226.93

In stock

49091

1

$1.81

In stock

92022

WASHER,6.5X22X1.6

92022-237

1
Out of stock

92075

1

$3.72

In stock

92152

COLLAR,6.5X10X13.6

92152-2204

1
Out of stock

92153

BOLT,OIL,L=23

92153-0029

1
Out of stock

92154

BOLT,SOCKET,6X14

92154-3763

1

$1.27

In stock

92173

1

$4.31

In stock

92173A

CLAMP

92173-2043

1

$4.08

In stock

92173B

CLAMP

92173-2044

1

$1.93

In stock

92173C

CLAMP

92173-2045

1

$4.08

In stock

130

BOLT-FLANGED,6X10

130BA0610

1

$1.12

In stock

130A

BOLT-FLANGED,6X22

130BA0622

1

$1.17

In stock

132

1

$1.31

In stock
