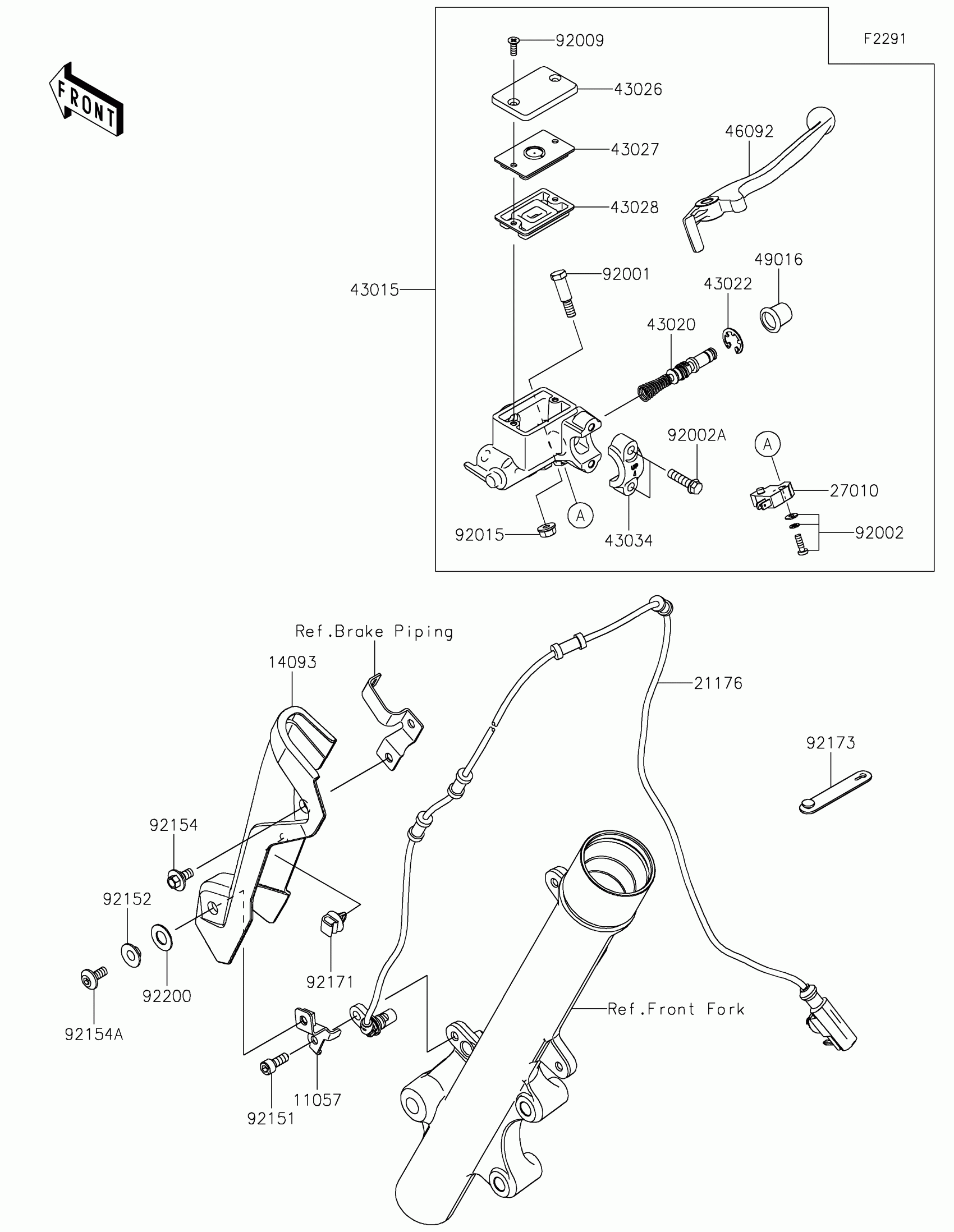

Find the part on the Front Master Cylinder diagram for your 2022 Kawasaki KLX®230S ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2022 Kawasaki KLX®230S ABS Front Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET,ABS SENSOR

11057-4142

1

$3.92

In stock

14093

COVER,ABS SENSOR

14093-0863

1

$4.44

In stock

21176

SENSOR,SPEED,FR

21176-0904

1

$271.24

In stock

27010

SWITCH,BRAKE

27010-0873

1
Out of stock

43015

1

$229.36

In stock

43020

PISTON-COMP-BRAKE

43020-0034

1

$52.23

In stock

43022

1

$4.14

In stock

43026

CAP-BRAKE

43026-1082

1
Out of stock

43027

PLATE-DIAPHRAGM

43027-1057

1
Out of stock

43028

DIAPHRAGM

43028-1061

1

$12.79

In stock

43034

1

$15.29

In stock

46092

1

$32.14

In stock

49016

1

$6.90

In stock

92001

1

$11.26

In stock

92002

BOLT,SCREW,4X12

92002-1323

1

$3.12

In stock

92002A

BOLT

92002-1894

1
Out of stock

92009

SCREW,4MM

92009-1458

1
Out of stock

92015

NUT,FLANGED,6MM,BLACK

92015-1233

1
Out of stock

92151

BOLT

92151-1166

1

$1.88

In stock

92152

COLLAR

92152-0427

1

$6.16

In stock

92154

BOLT,FLANGED,6X9

92154-0546

1

$2.97

In stock

92154A

BOLT,SOCKET,6X14

92154-3763

1

$1.27

In stock

92171

CLAMP

92171-0640

1

$3.51

In stock

92173

CLAMP

92173-2199

1

$1.32

In stock

92200

WASHER,10.5X20X1.0

92200-0870

1
Out of stock
