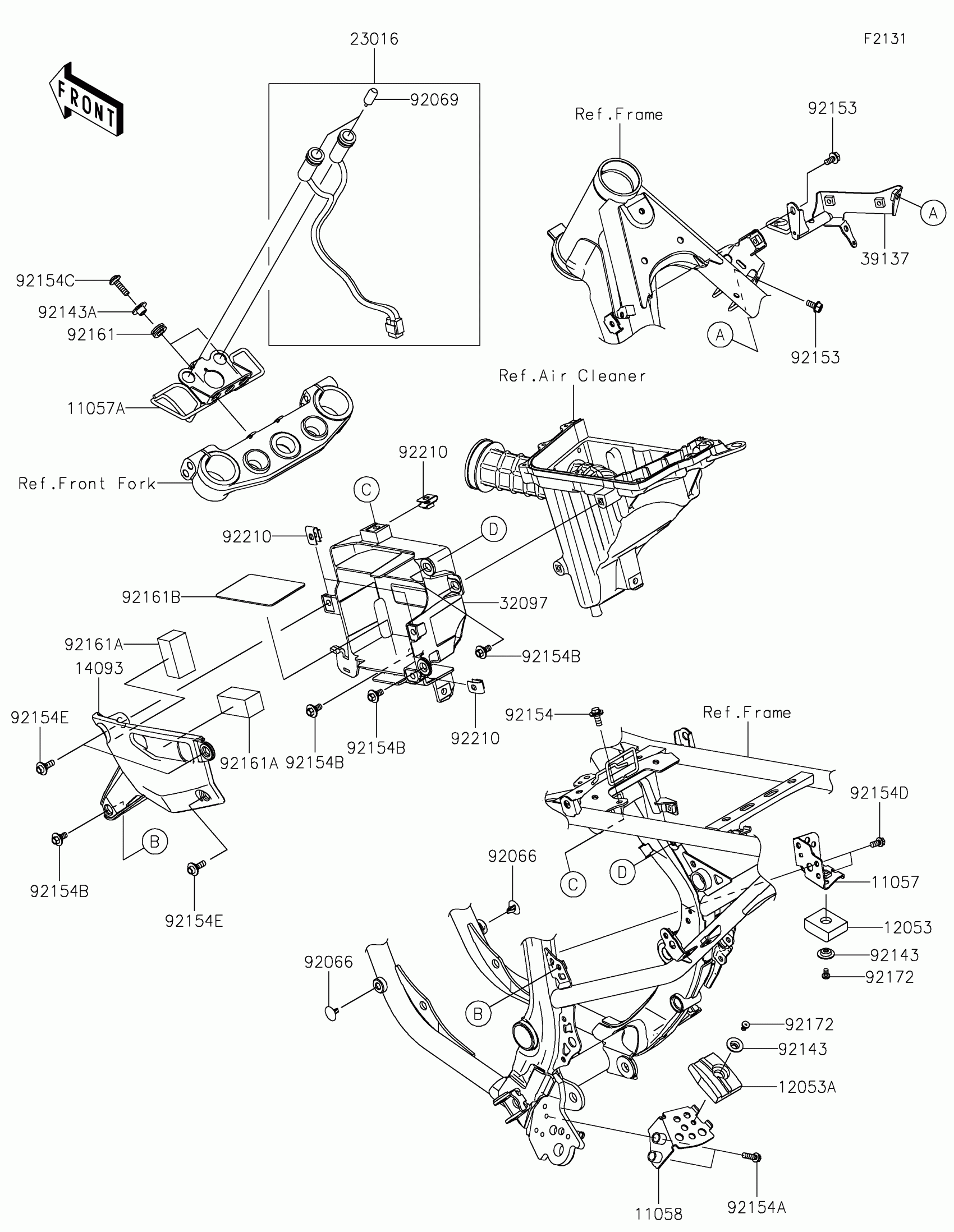

Kawasaki KLX®230R S Frame Fittings Diagram

#

Description
Price

11057

BRACKET,LWR

11057-2065

$16.36

11057A

BRACKET,UPP

11057-2067

$13.61

11057B

BRACKET,INDICATOR

11057-2082

Unavailable

11057C

BRACKET,INDICATOR&IGNITION

11057-2976

$49.13

11057C

BRACKET,INDICATOR&IGNITION

11057-2976

$49.13

12053

GUIDE-CHAIN,UPP

12053-0270

$2.27

12053A

GUIDE-CHAIN,LWR

12053-0271

$2.44

14093

COVER,CASE-BATTERY

14093-0785

$5.24

23016

LAMP-ASSY,INDICATOR

23016-0626

$147.07

27005

SWITCH-ASSY-IGNITION

27005-0677

$95.63

27005

SWITCH-ASSY-IGNITION

27005-0677

$95.63

32097

CASE-BATTERY

32097-0048

$11.29

92015

NUT,6MM

92015-1602

$5.61

92069

BULB,12V 3.4W,T10

92069-1007

$3.81

92072

BAND,BATTERY

92072-0839

$5.27

92143

COLLAR

92143-1676

$4.67

92143A

COLLAR

92143-1833

$0.71

92152

COLLAR,6.5X10X10.4

92152-1688

$1.44

92153

BOLT,SOCKET,6X22

92153-0574

$1.85

92154

BOLT,FLANGED,6X10

92154-0459

$7.54

92154

BOLT,FLANGED,6X10

92154-0459

$7.54

92154A

BOLT,6X25

92154-0467

$1.66

92154B

BOLT,FLANGED,6X9

92154-0546

$2.84

92154C

BOLT,FLANGED,6X20

92154-2757

$2.41

92161

DAMPER,10X18X6.5

92161-2091

$1.74

92161A

DAMPER,146X22X1

92161-2210

$2.12

92161B

DAMPER,BATTERY

92161-2294

$2.63

92172

SCREW,5X8

92172-0119

$1.54

132

BOLT-FLANGED-SMALL,6X12

132BA0612

$0.97
