2022 Kawasaki KLX®230R S Cowling Diagram

← All diagrams

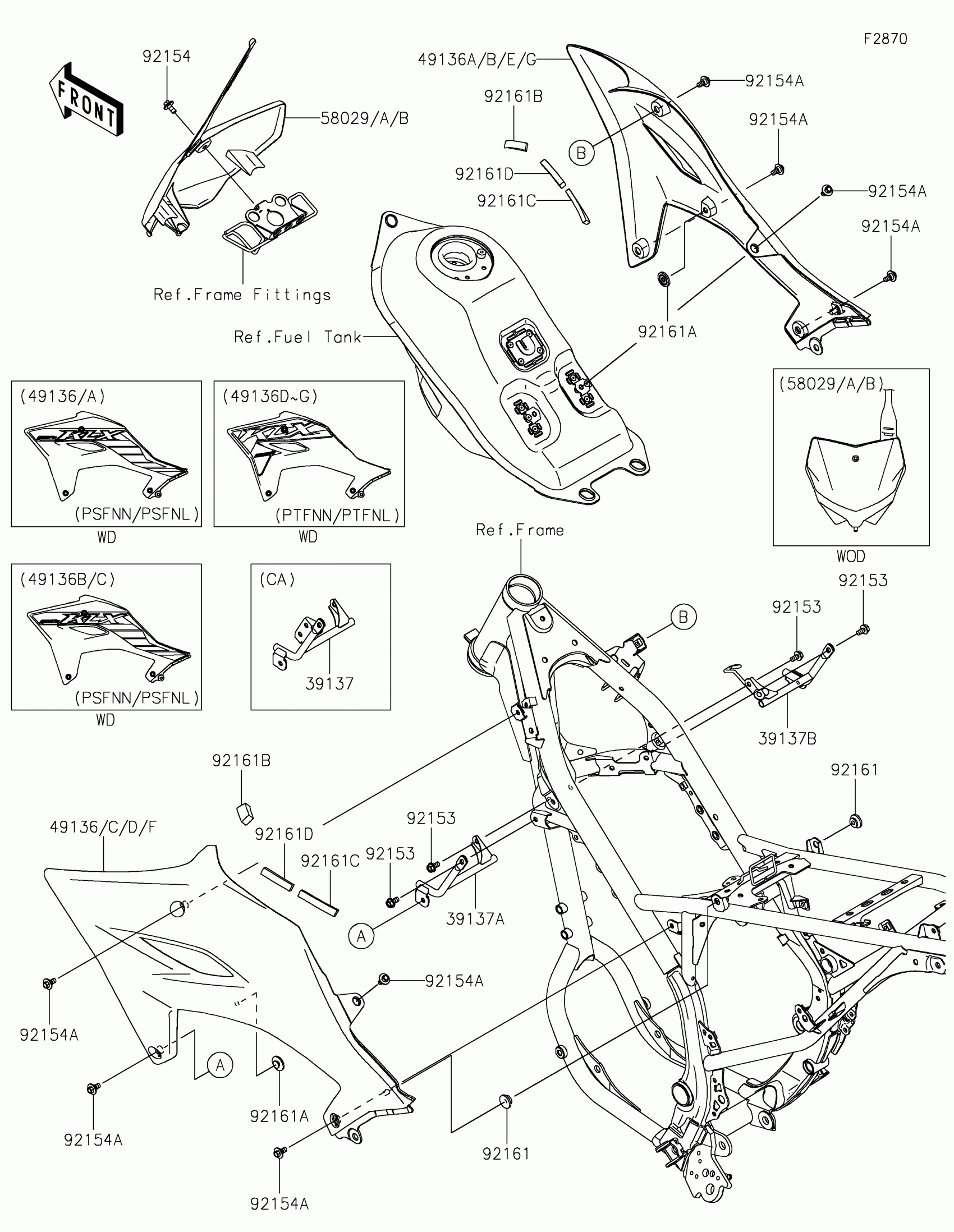

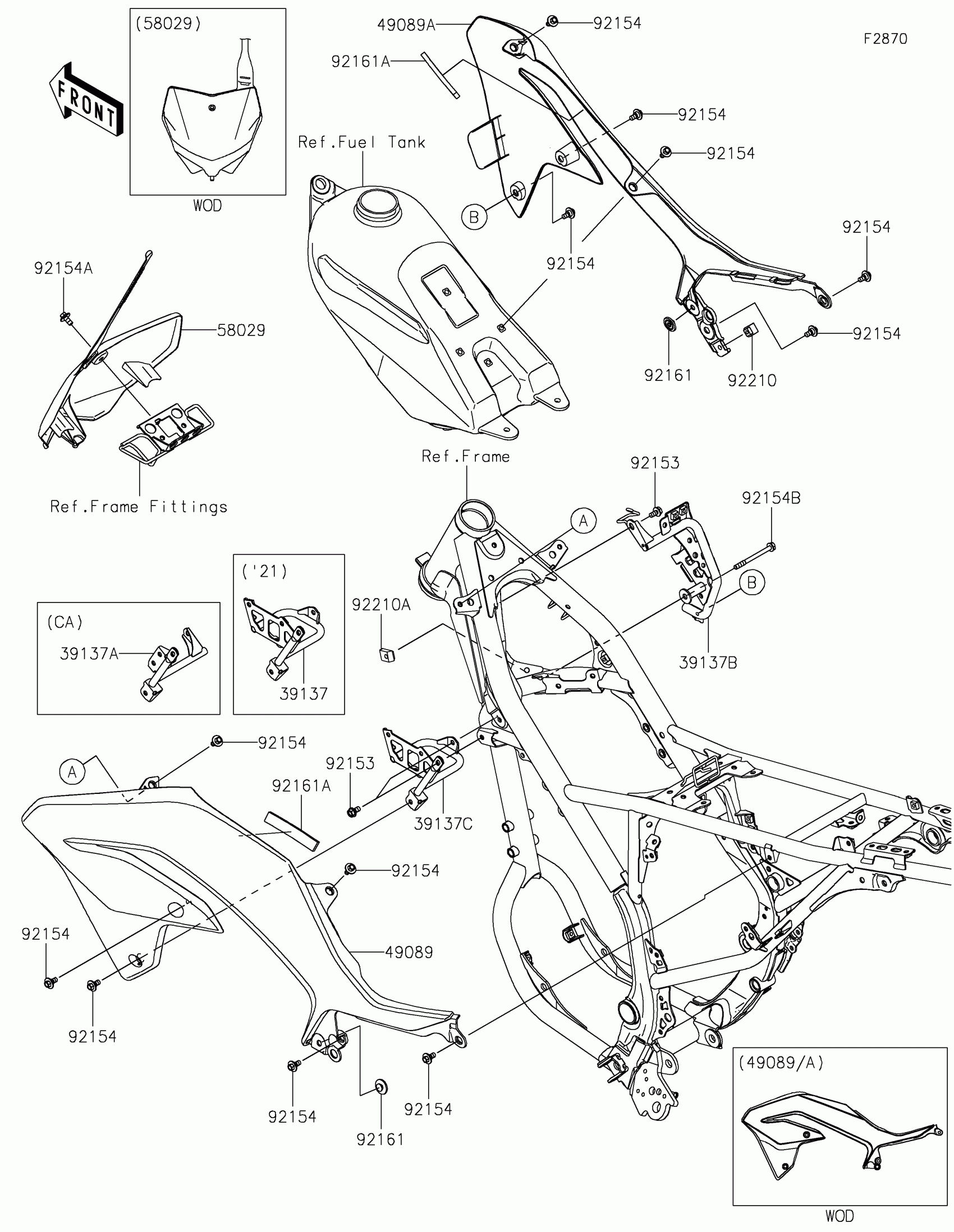

Find the part on the Cowling diagram for your 2022 Kawasaki KLX®230R S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2022 Kawasaki KLX®230R S Cowling Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

39137

STAY-COMP,LH,P.SILVER

39137-0703-458

1
Out of stock

39137A

STAY-COMP,LH,P.SILVER

39137-0705-458

1
Out of stock

39137B

STAY-COMP,RH,P.SILVER

39137-0706-458

1
Out of stock

39137C

STAY-COMP,LH,P.SILVER

39137-0732-458

1
Out of stock

49089

SHROUD-ENGINE,LH,L.GREEN

49089-0957-290

1
Out of stock

49089A

SHROUD-ENGINE,RH,L.GREEN

49089-0958-290

1
Out of stock

58029

PLATE-NUMBER,B.WHITE

58029-0005-266

1
Out of stock

92153

BOLT,FLANGED,6X12

92153-1283

1
Out of stock

92154

BOLT,FLANGED,6X9

92154-0546

1
Out of stock

92154A

BOLT,FLANGED,6X14

92154-1231

1
Out of stock

92154B

BOLT-FLANGED,6X70

92154-4093

1
Out of stock

92161

DAMPER,8X22X10

92161-1685

1
Out of stock

92161A

DAMPER,70X15X6

92161-1838

1
Out of stock

92210

NUT,6MM

92210-0218

1
Out of stock

92210A

NUT

92210-1771

1
Out of stock
