2022 Kawasaki KLX®230R S Footrests Diagram

← All diagrams

Find the part on the Footrests diagram for your 2022 Kawasaki KLX®230R S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

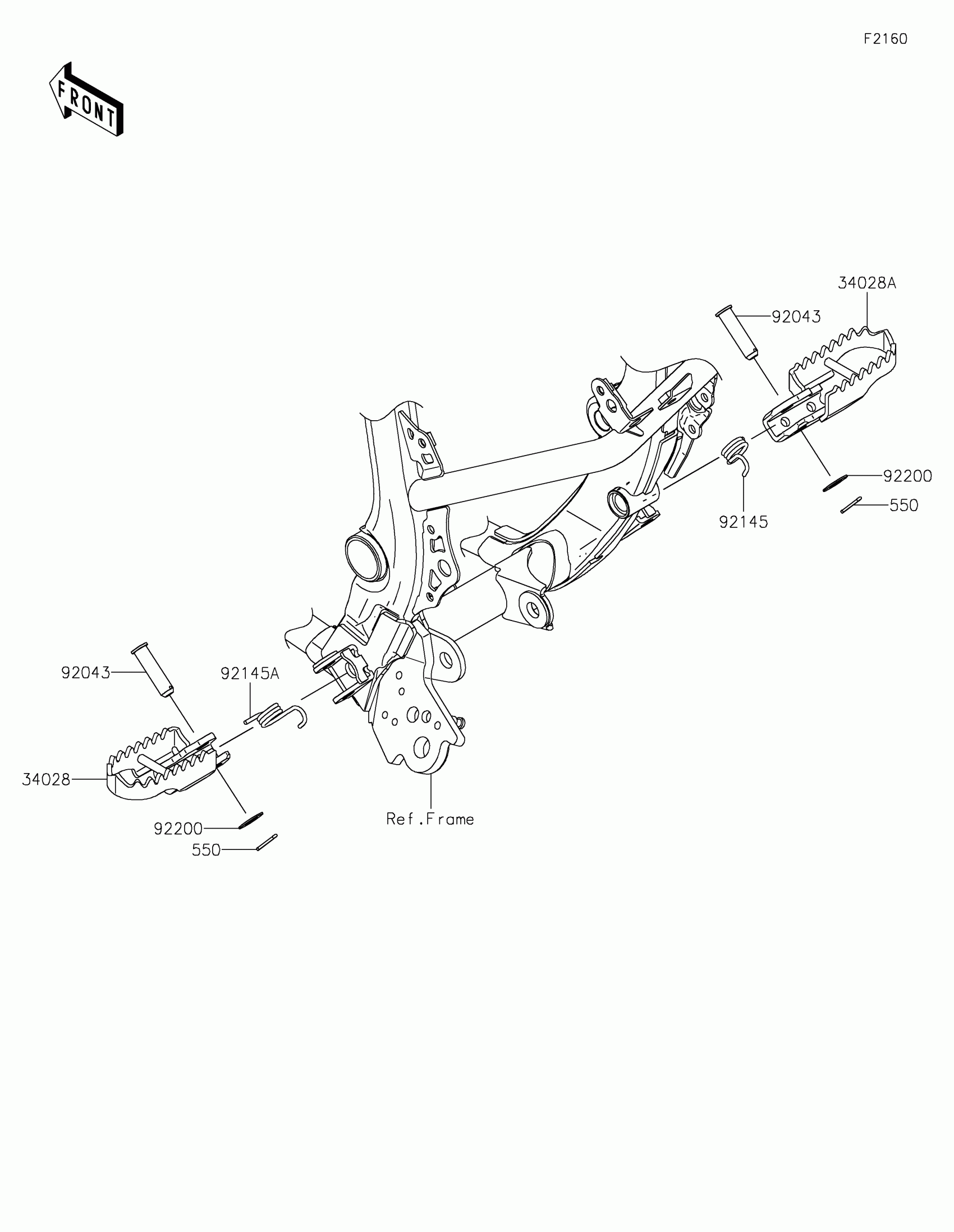

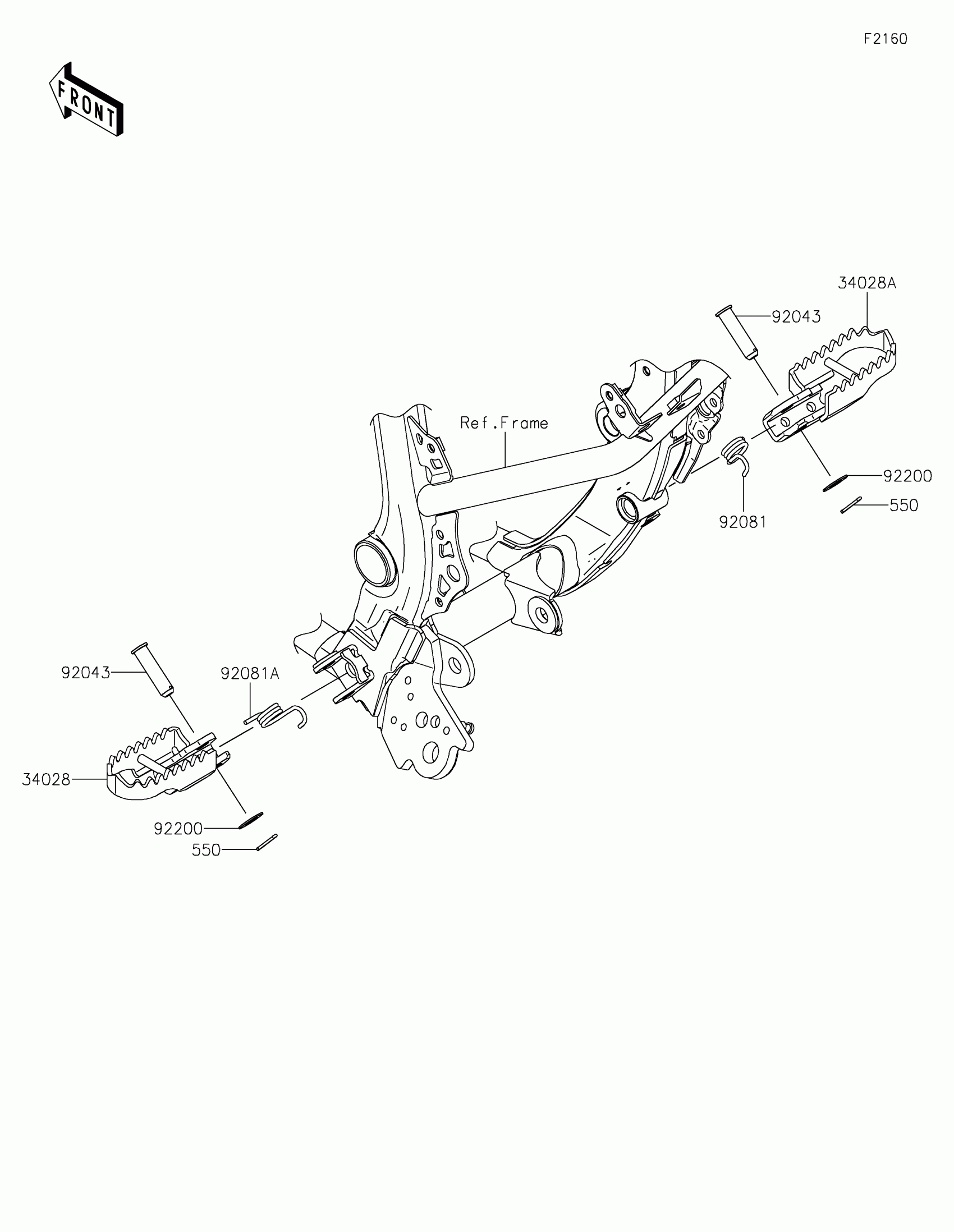

2022 Kawasaki KLX®230R S Footrests Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

34028

STEP,LH

34028-0369

1
Out of stock

34028A

STEP,RH

34028-0371

1
Out of stock

92043

PIN,10X35

92043-0744

1
Out of stock

92081

SPRING,STEP,LH

92081-1606

1
Out of stock

92081A

SPRING,STEP,RH

92081-1607

1
Out of stock

92200

WASHER,10.5X20X1.0

92200-0870

1
Out of stock

550

PIN-COTTER,2.0X18

550AA2018

1
Out of stock
