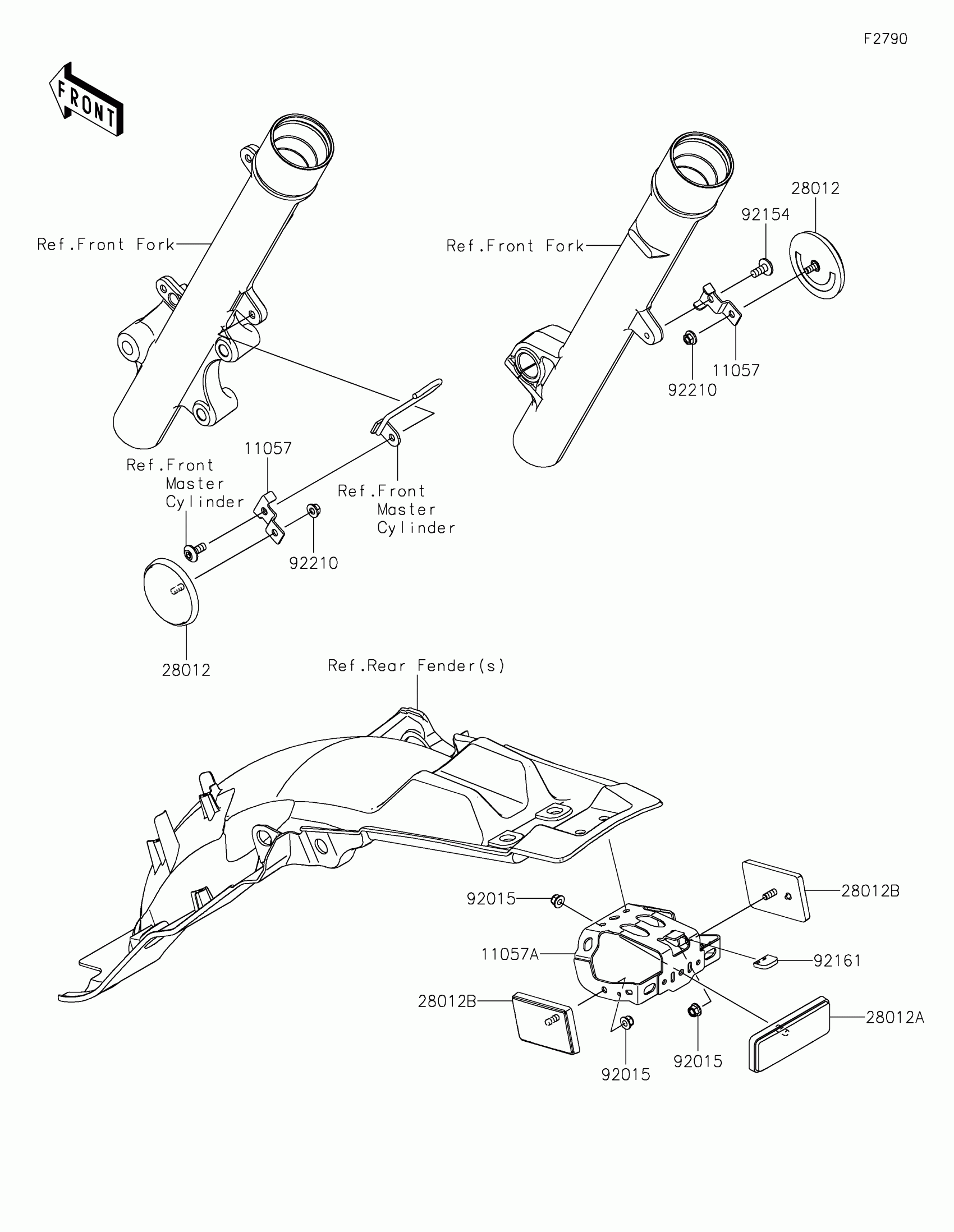

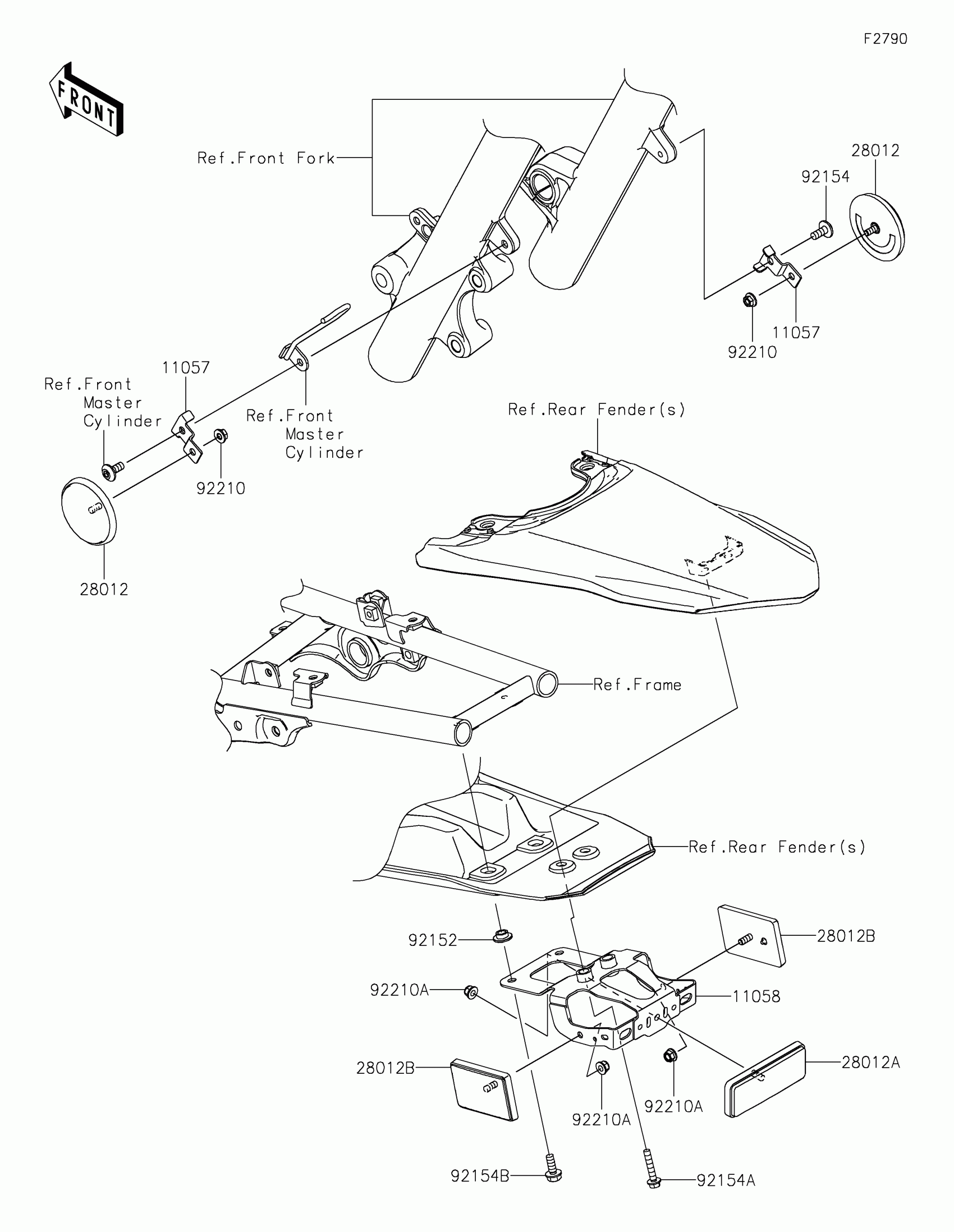

Find the part on the Reflectors diagram for your 2026 Kawasaki KLX®230R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2026 Kawasaki KLX®230R Reflectors Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET,FR

11057-2421

1
Out of stock

11058

BRACKET,REFLECTOR,RR

11058-2265

1
Out of stock

28012

REFLECTOR-REFLEX

28012-0008

1
Out of stock

28012A

REFLECTOR-REFLEX

28012-1077

1
Out of stock

28012B

REFLECTOR-REFLEX

28012-1088

1
Out of stock

92152

COLLAR,6.5X16X5.6

92152-1830

1
Out of stock

92154

BOLT,SOCKET,6X14

92154-3763

1
Out of stock

92154A

BOLT,FLANGED,5X28

92154-7459

1
Out of stock

92154B

BOLT,FLANGED,6X16

92154-7460

1
Out of stock

92210

NUT,FLANGED,5MM

92210-0007

1
Out of stock

92210A

NUT,LOCK,FLANGED,5MM

92210-1991

1
Out of stock
