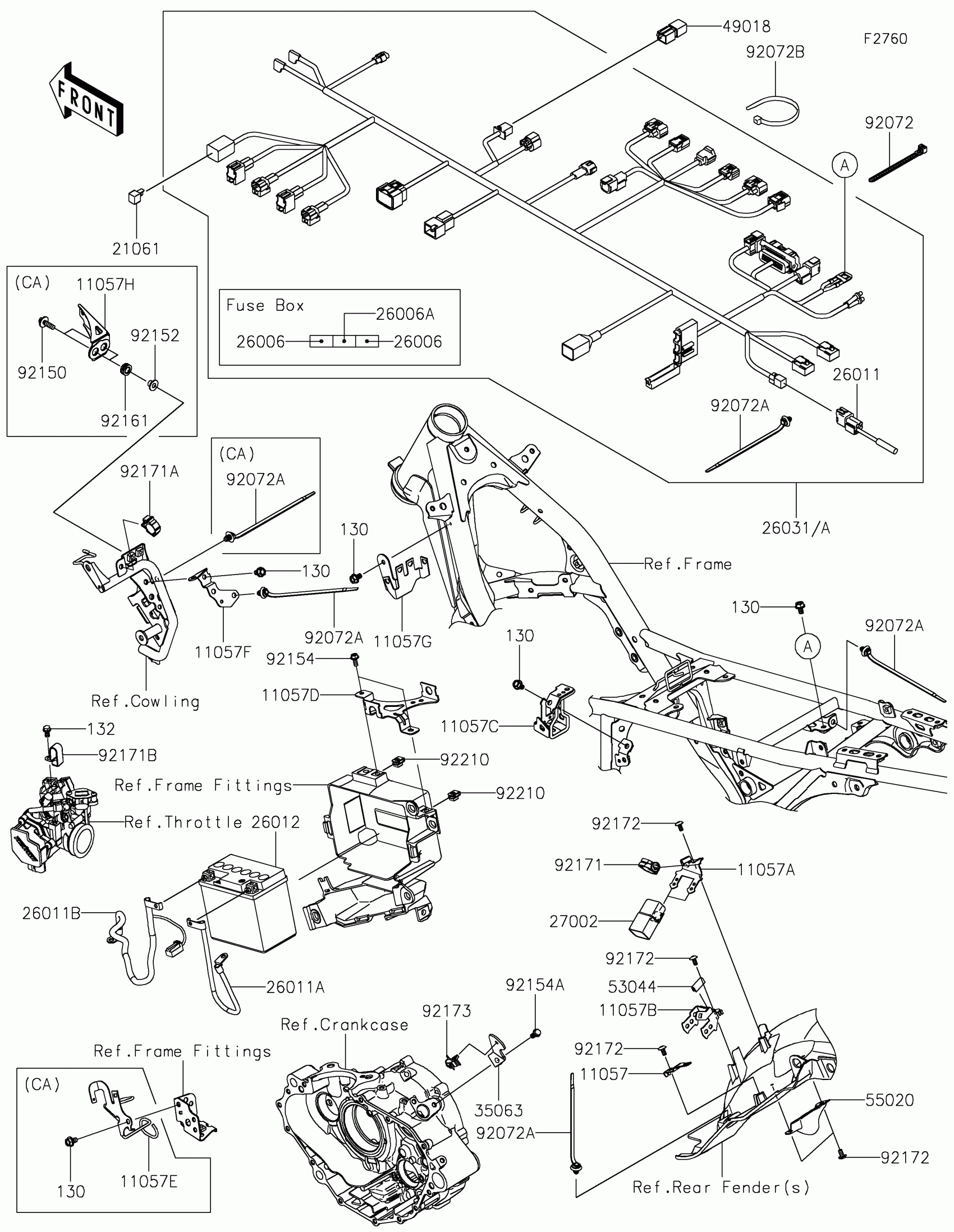

Find the part on the Chassis Electrical Equipment diagram for your 2020 Kawasaki KLX®230R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2020 Kawasaki KLX®230R Chassis Electrical Equipment Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET,DIAG

11057-2018

1
Out of stock

11057A

BRACKET,RELAY-ASSY

11057-2019

1
Out of stock

11057B

BRACKET,SWITCH

11057-2020

1
Out of stock

11057C

BRACKET,VEHICLE DOWN SENSOR

11057-2021

1
Out of stock

11057D

BRACKET,ECU

11057-2022

1
Out of stock

11057E

BRACKET

11057-2463

1
Out of stock

11057F

BRACKET,ENGINE START SWITCH

11057-2520

1
Out of stock

11057G

BRACKET

11057-2539

1
Out of stock

11057H

BRACKET,REGULATOR

11057-4104

1
Out of stock

21061

RECTIFIER

21061-1003

1
Out of stock

26006

FUSE,MINI BLADE,15A,BLUE

26006-0001

1
Out of stock

26006A

FUSE,MINI BLADE,10A,RED

26006-1078

1
Out of stock

26011

WIRE-LEAD,DIAG

26011-0858

1
Out of stock

26011A

WIRE-LEAD,BATTERY(+)

26011-1869

1
Out of stock

26011B

WIRE-LEAD,BATTERY(-)

26011-1870

1
Out of stock

26012

BATTERY,YTX5L-BS,12V 4AH

26012-0905

1
Out of stock

26031

HARNESS,MAIN

26031-2573

1
Out of stock

26031A

HARNESS,MAIN

26031-2807

1
Out of stock

27002

RELAY-ASSY

27002-1086

1
Out of stock

35063

STAY

35063-1476

1
Out of stock

49018

DIODE

49018-0005

1
Out of stock

53044

TRIM,9X6.5X20

53044-0596

1

$3.68

In stock

55020

GUARD,OXYGEN SENSOR

55020-2254

1
Out of stock

92072

BAND,L=140

92072-1293

1
Out of stock

92072A

BAND,OS170-FT7(BLACK)

92072-1414

—
Out of stock

92072B

BAND,L=152

92072-3874

1
Out of stock

92150

BOLT,6X20

92150-1339

1
Out of stock

92152

COLLAR

92152-2595

1
Out of stock

92154

BOLT,FLANGED,5X12

92154-1215

1
Out of stock

92154A

BOLT,FLANGED,6X12

92154-1776

1
Out of stock

92161

DAMPER,8.3X16X6.4

92161-1848

1

$7.98

In stock

92171

CLAMP,20MM DIA.

92171-0069

1

$2.29

In stock

92171A

CLAMP,BRAKE HOSE

92171-0316

1

$3.08

In stock

130

BOLT-FLANGED,6X10

130BA0610

1

$1.12

In stock

132

1

$2.05

In stock

92171B

CLAMP

92171-0911

1
Out of stock

92172

SCREW,CROS,5X10

92172-1255

1
Out of stock

92173

CLAMP

92173-1163

1
Out of stock

92210

NUT,PLATE,5MM

92210-0262

1
Out of stock

130

BOLT-FLANGED,6X10

130BA0610

1

$1.12

In stock
