2020 Kawasaki KLX®230R Fuel Evaporative System Diagram

← All diagrams

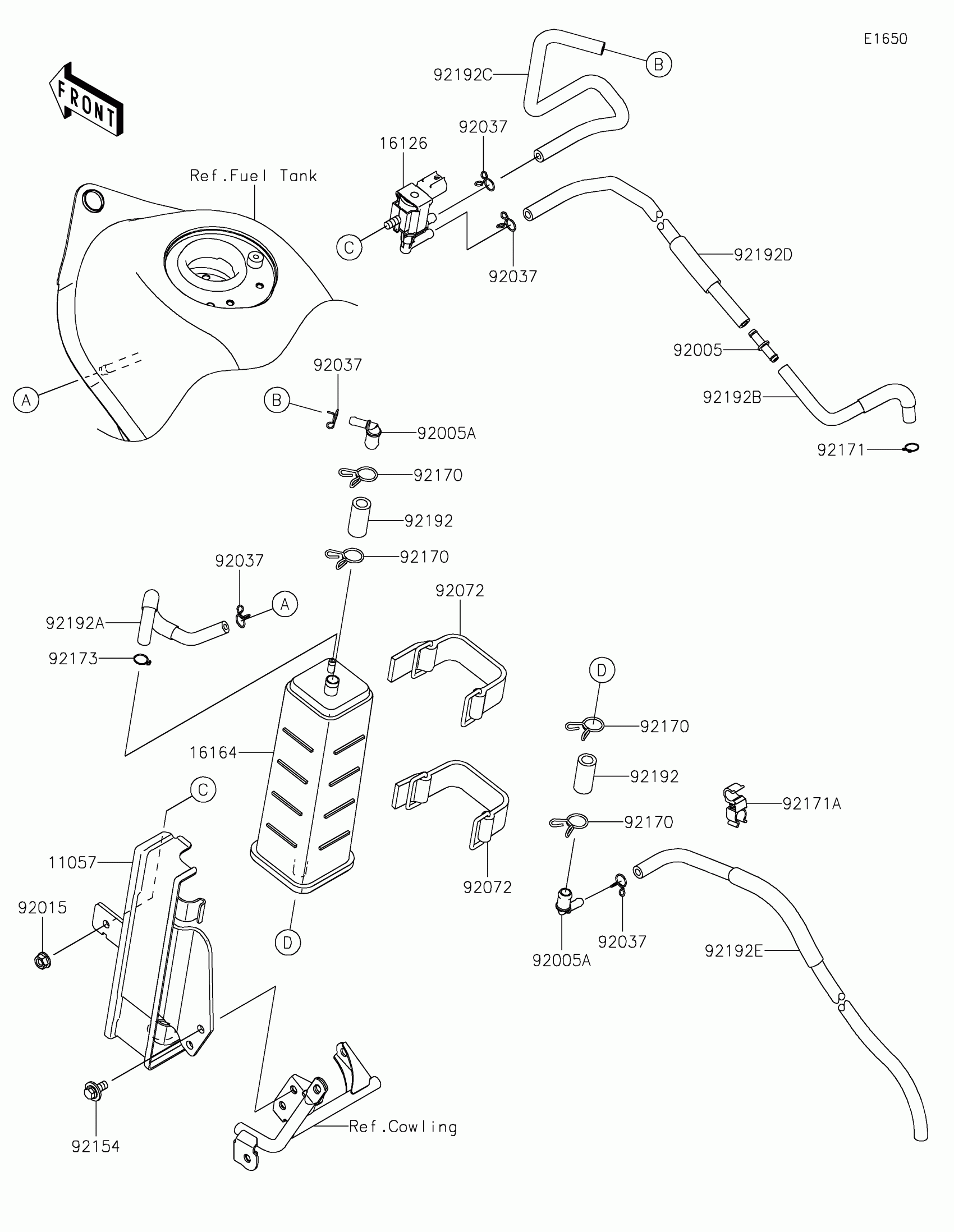

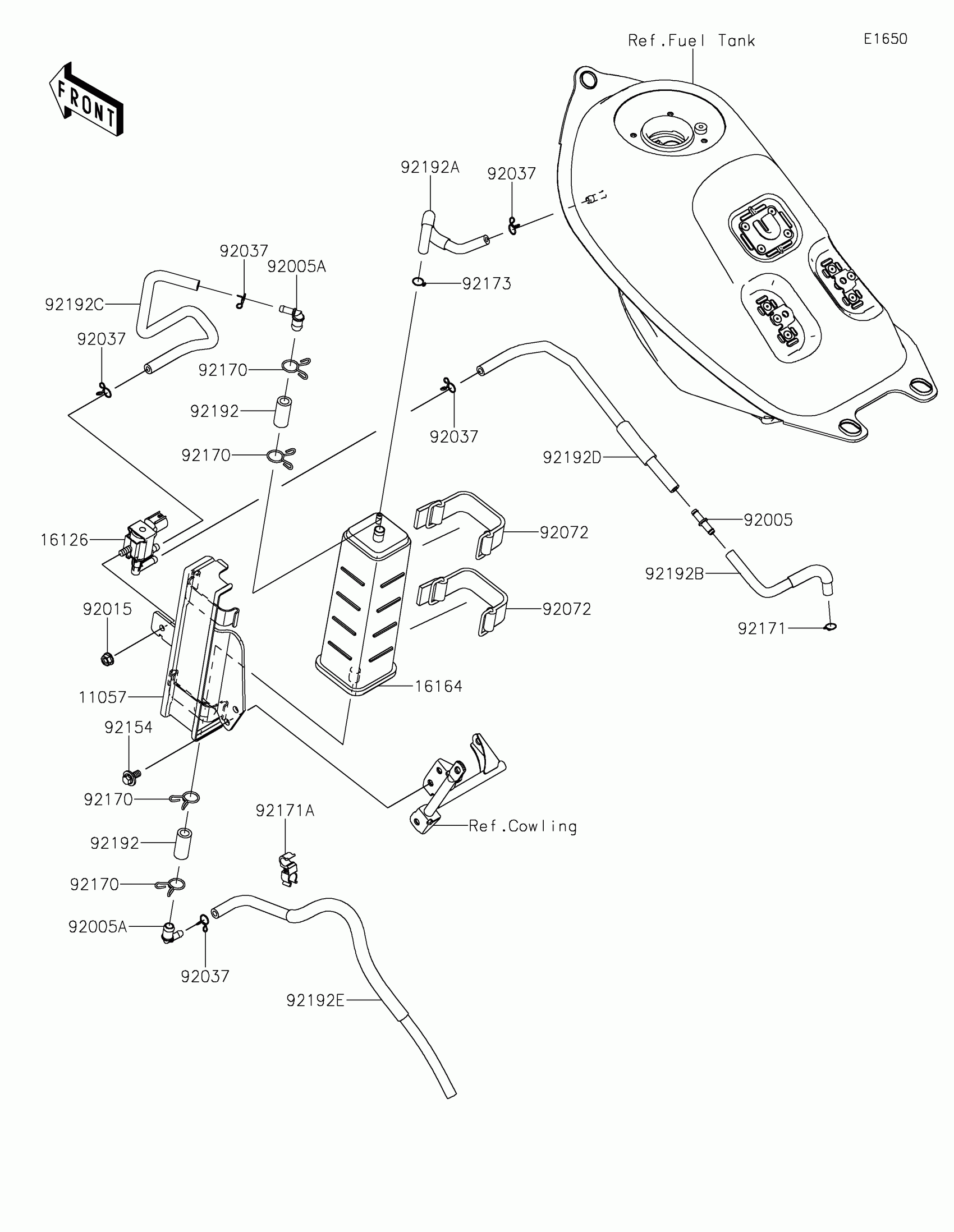

Find the part on the Fuel Evaporative System diagram for your 2020 Kawasaki KLX®230R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2020 Kawasaki KLX®230R Fuel Evaporative System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET,CANISTER

11057-2130

1
Out of stock

16126

VALVE,SOLENOID

16126-0705

1
Out of stock

16164

CANISTER

16164-0009

1
Out of stock

92005

FITTING

92005-0721

1
Out of stock

92005A

FITTING

92005-0753

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1367

1
Out of stock

92037

CLAMP

92037-1712

1
Out of stock

92072

BAND,L=90

92072-0135

1
Out of stock

92154

BOLT,FLANGED,WP,6X14

92154-1289

1
Out of stock

92170

CLAMP

92170-1695

1

$2.27

In stock

92171

CLAMP

92171-0573

1

$1.20

In stock

92171A

CLAMP

92171-1709

1
Out of stock

92173

CLAMP

92173-1190

1
Out of stock

92192

TUBE,9X14.4X30

92192-1757

1
Out of stock

92192A

TUBE,TANK-CANISTER

92192-1938

1
Out of stock

92192B

TUBE,PCV-THB

92192-1939

1
Out of stock

92192C

TUBE,FITTING-PCV

92192-1940

1
Out of stock

92192D

TUBE,FITTING-PCV

92192-1987

1
Out of stock

92192E

TUBE,DRAIN

92192-2309

1
Out of stock
