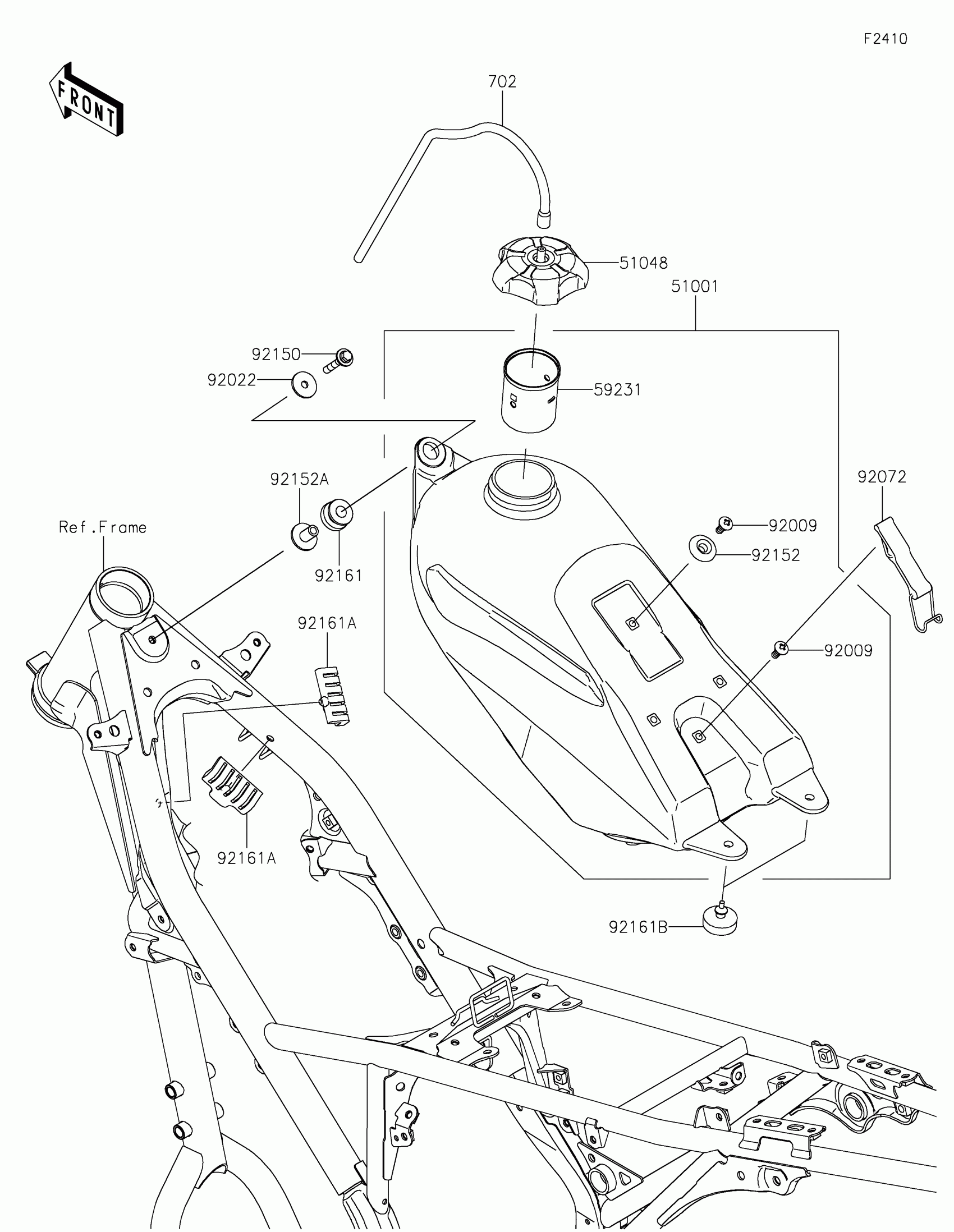

Kawasaki KLX®230R Fuel Tank(CN,US) Diagram

Description

Price

51001

TANK-COMP-FUEL

51001-0875

$656.50

51048

CAP-ASSY-TANK

51048-0576

$48.12

59231

FILLER

59231-0042

$5.13

702

TUBE-RUBBER 5X400

702A05400

Unavailable

92009

SCREW,6MM

92009-1971

$3.19

92022

WASHER,6.5X24X2

92022-1690

$2.99

92072

BAND,FUEL TANK

92072-0842

$22.58

92150

BOLT,FLANGED,6X35

92150-1527

$3.29

92152

COLLAR

92152-0569

$4.95

92152A

COLLAR,6.8X10X16

92152-2666

$9.19

92161

DAMPER,FUEL TANK,FR

92161-1392

$2.68

92161A

DAMPER

92161-2166

$3.68

92161B

DAMPER

92161-2203

$3.14
