2020 Kawasaki KLX®230R Front Fender Diagram

← All diagrams

Find the part on the Front Fender diagram for your 2020 Kawasaki KLX®230R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

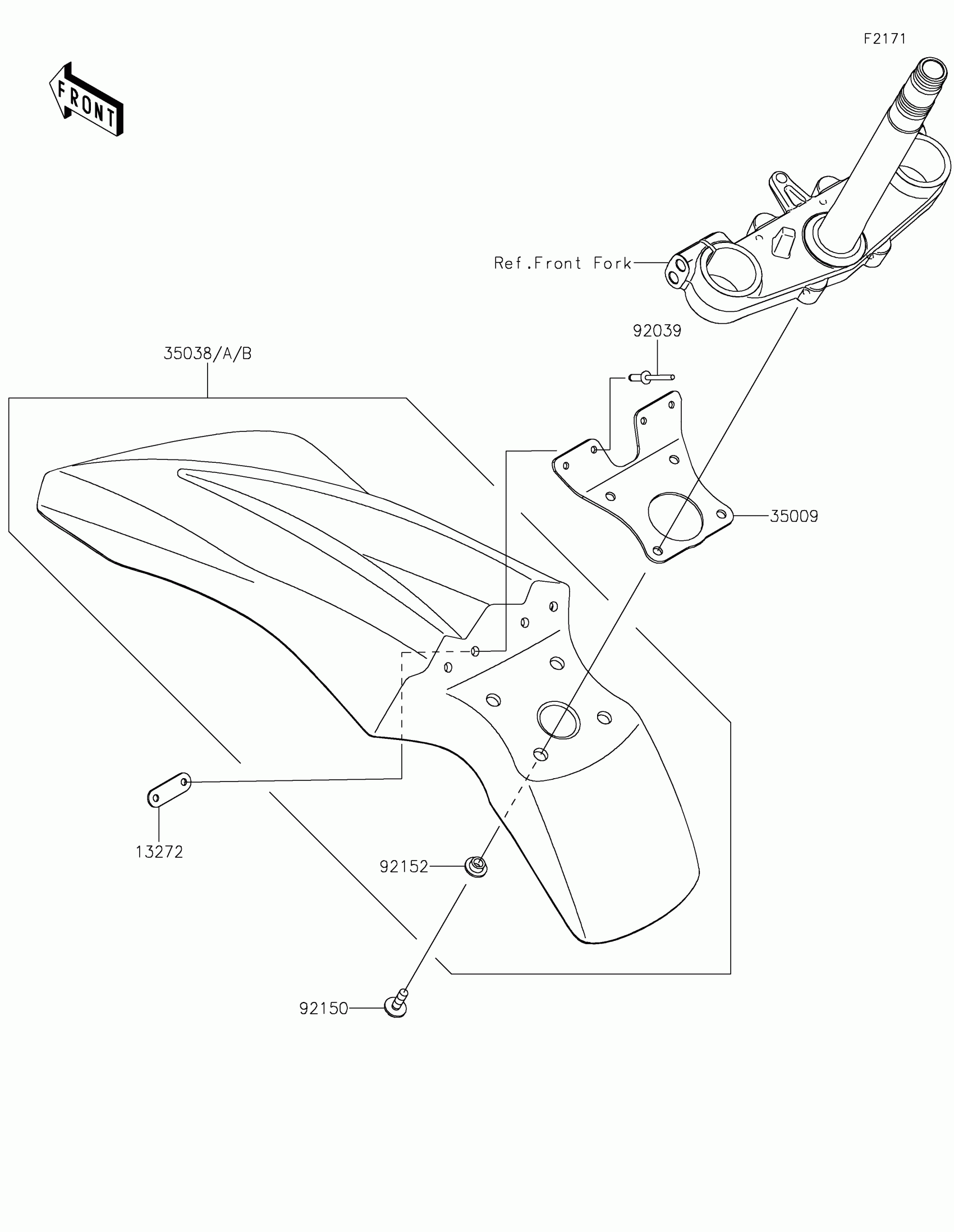

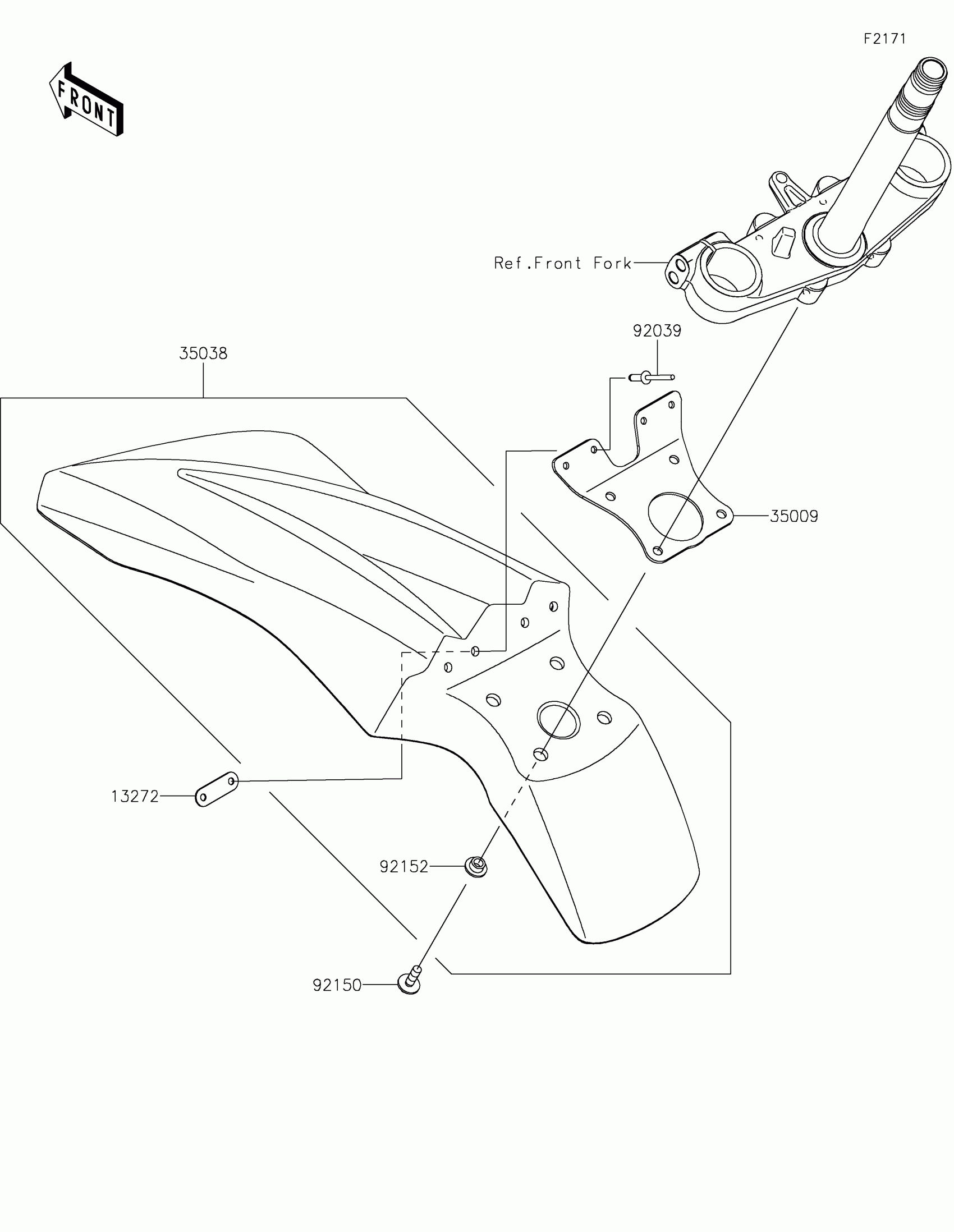

2020 Kawasaki KLX®230R Front Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13272

PLATE

13272-2832

1

$1.78

In stock

35009

BRACE

35009-0046

1

$14.93

In stock

35038

FENDER-FRONT,L.GREEN

35038-0013-290

1

$82.52

In stock

92039

RIVET

92039-1281

1

$2.46

In stock

92150

BOLT,6X20

92150-1339

1

$3.49

In stock

92152

1

$6.25

In stock
← Frame Fittings Labels →

More Body & Frame diagrams
