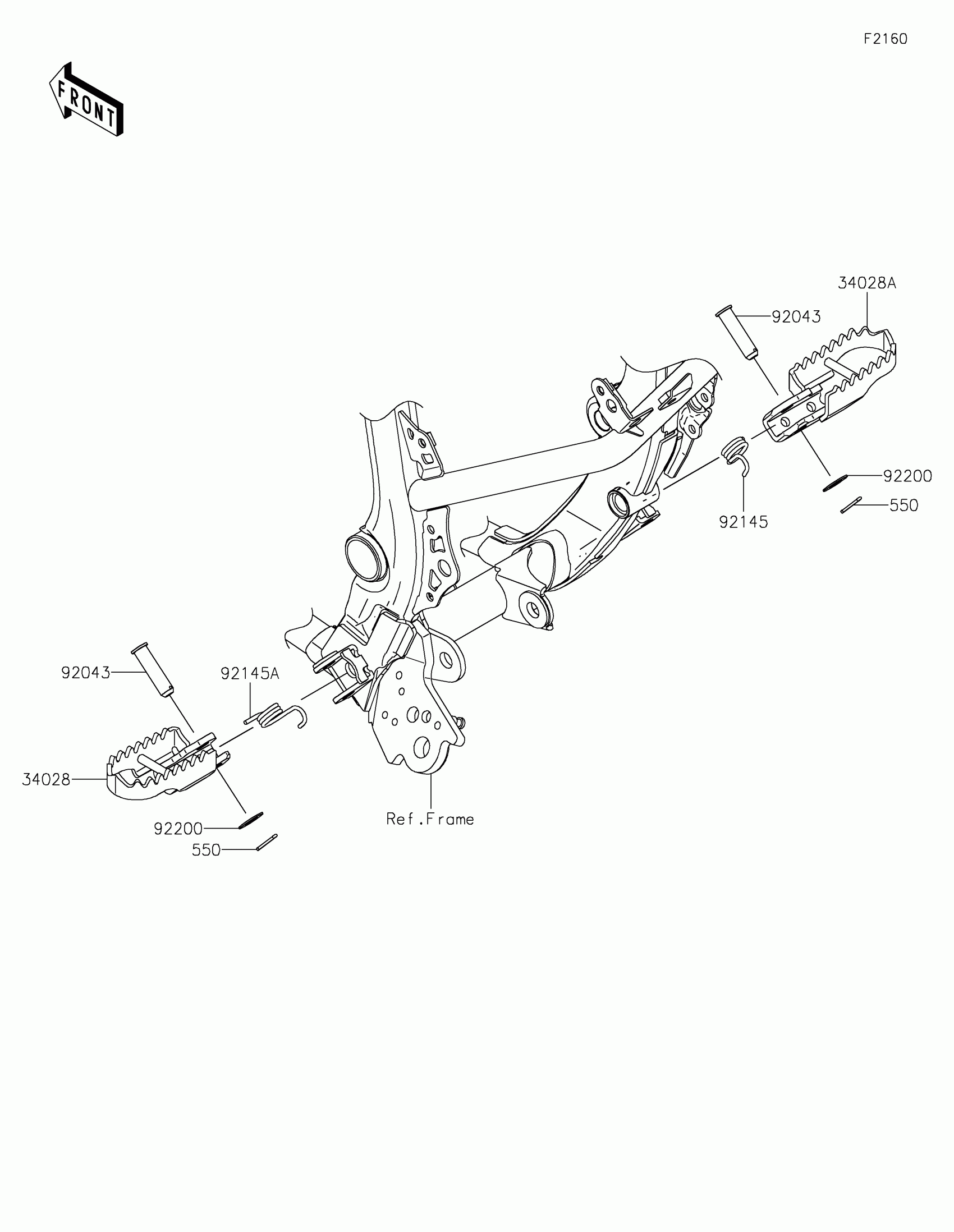

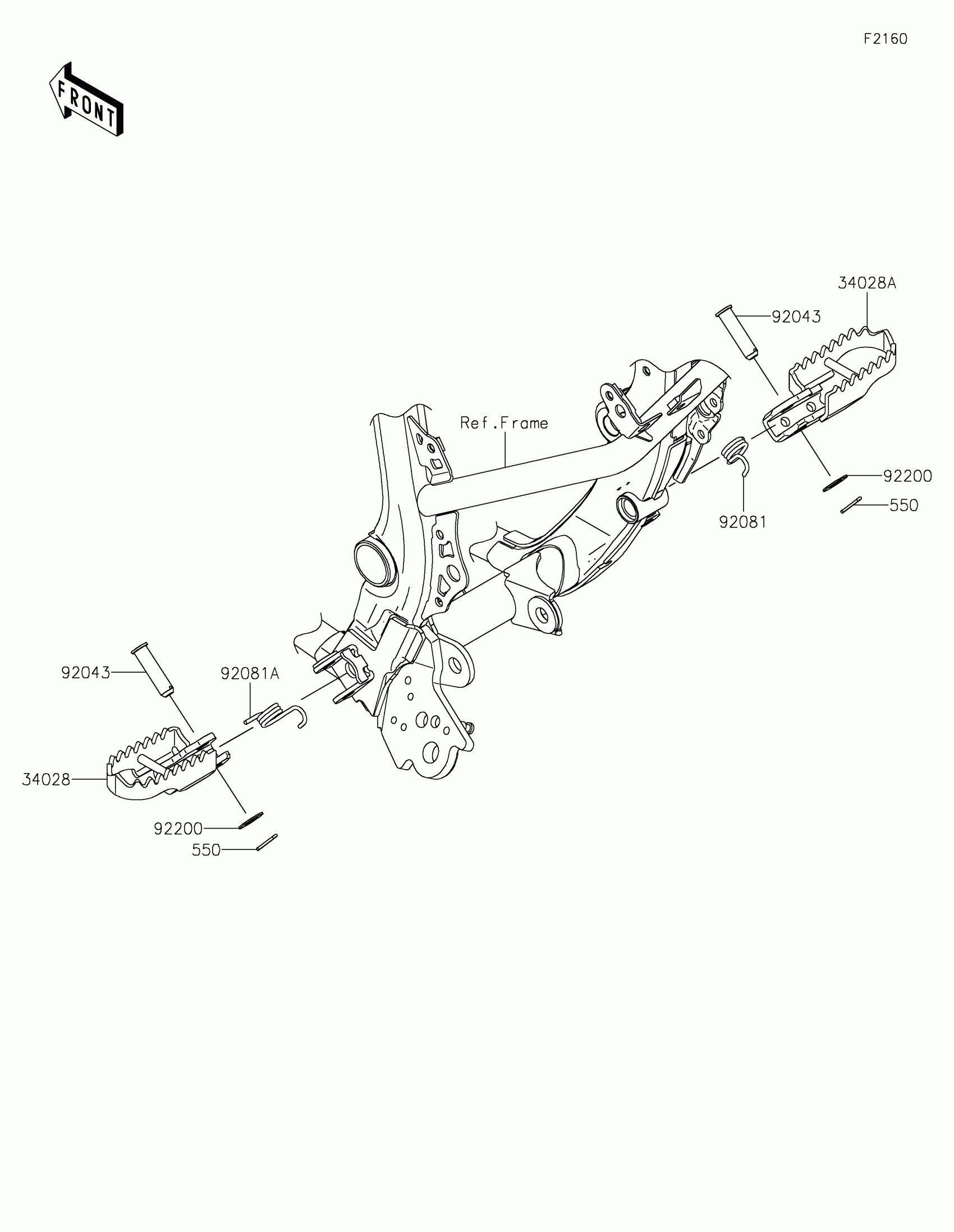

Kawasaki KLX®230R Footrests Diagram

#

Description
Price

34028

STEP,LH

34028-0369

$43.20

34028A

STEP,RH

34028-0371

$43.20

550

PIN-COTTER,2.0X18

550AA2018

$1.80

92043

PIN,10X35

92043-0744

$5.24

92081

SPRING,STEP,LH

92081-1606

$9.49

92081A

SPRING,STEP,RH

92081-1607

$9.49

92200

WASHER,10.5X20X1.0

92200-0870

$0.83
