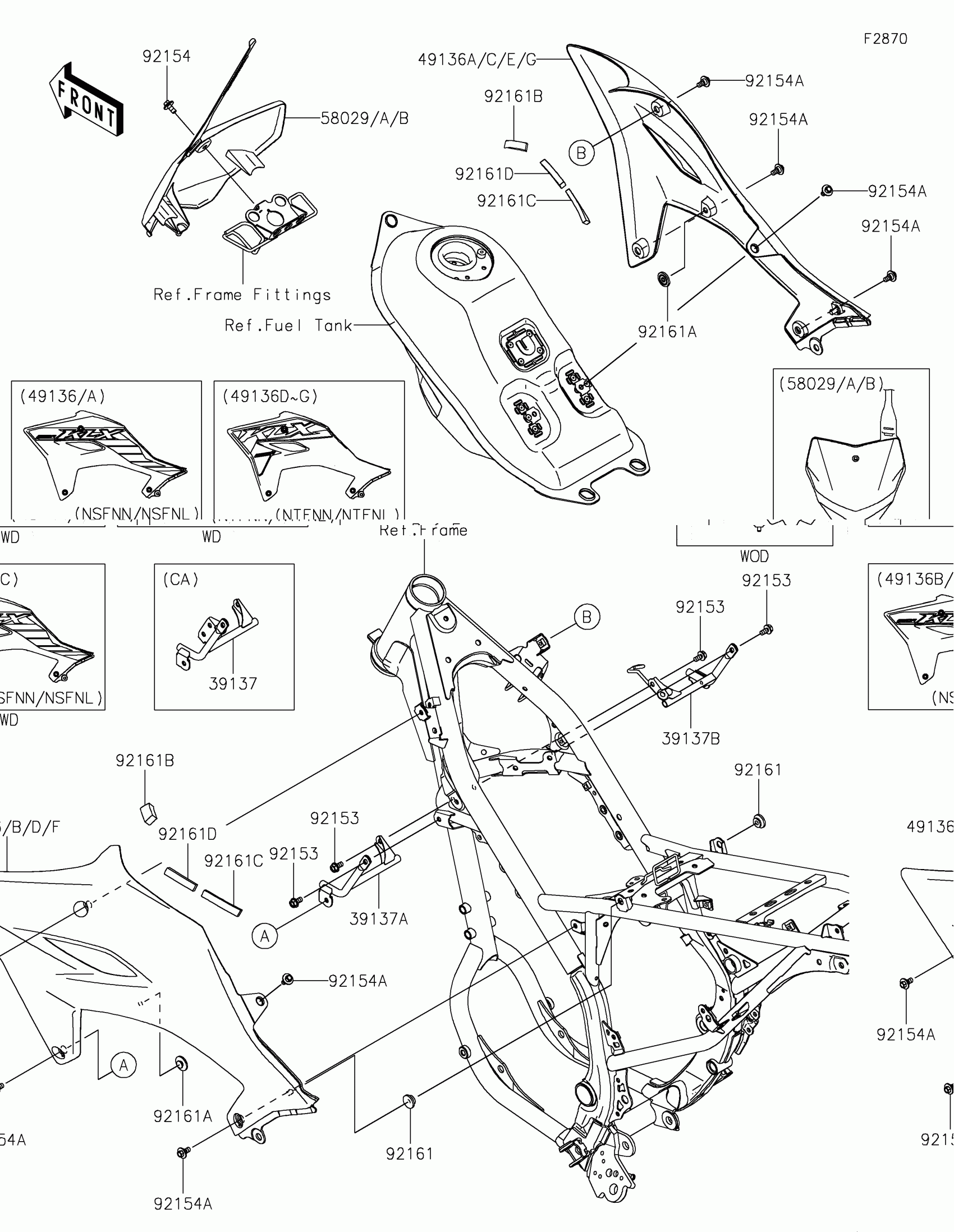

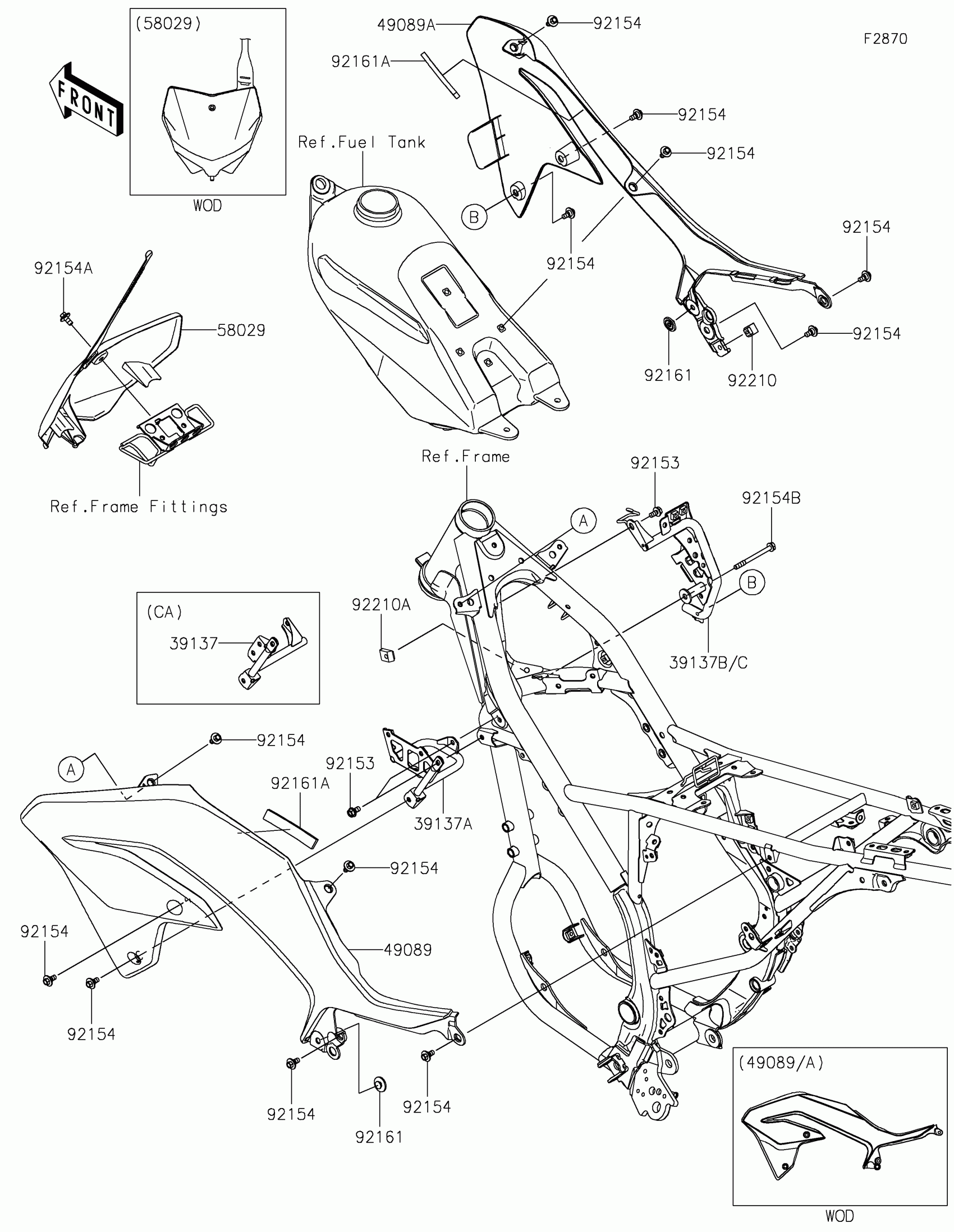

Kawasaki KLX®230R Cowling Diagram

Description

Price

39137

STAY-COMP,LH,P.SILVER

39137-0695-458

$62.46

39137A

STAY-COMP,LH,P.SILVER

39137-0701-458

$103.51

39137B

STAY-COMP,RH,P.SILVER

39137-0702-458

$115.01

39137C

STAY-COMP,RH,P.SILVER

39137-0706-458

$115.01

49089

SHROUD-ENGINE,LH,L.GREEN

49089-0957-290

Unavailable

49089A

SHROUD-ENGINE,RH,L.GREEN

49089-0958-290

$58.46

58029

PLATE-NUMBER,B.WHITE

58029-0005-266

$76.99

92153

BOLT,FLANGED,6X12

92153-1283

$1.73

92154

BOLT,FLANGED,6X9

92154-0546

$2.84

92154A

BOLT,FLANGED,6X14

92154-1231

$2.09

92154B

BOLT-FLANGED,6X70

92154-4093

$4.31

92161

DAMPER,8X22X10

92161-1685

$0.74

92161A

DAMPER,70X15X6

92161-1838

$2.59

92210

NUT,6MM

92210-0218

$1.81

92210A

NUT

92210-1771

$20.47
