2020 Kawasaki KLX®230 Side Covers/chain Cover Diagram

← All diagrams

Find the part on the Side Covers/chain Cover diagram for your 2020 Kawasaki KLX®230, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

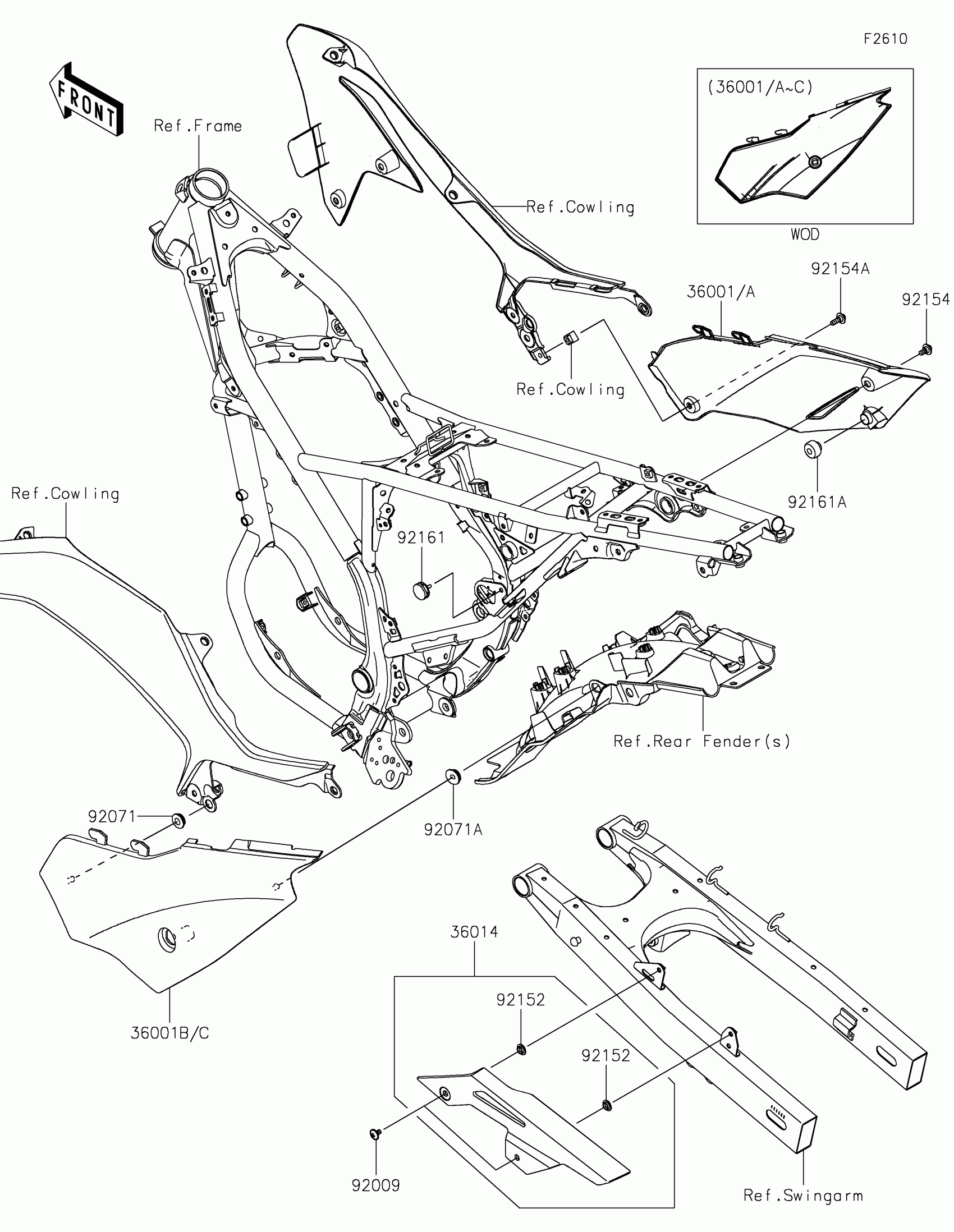

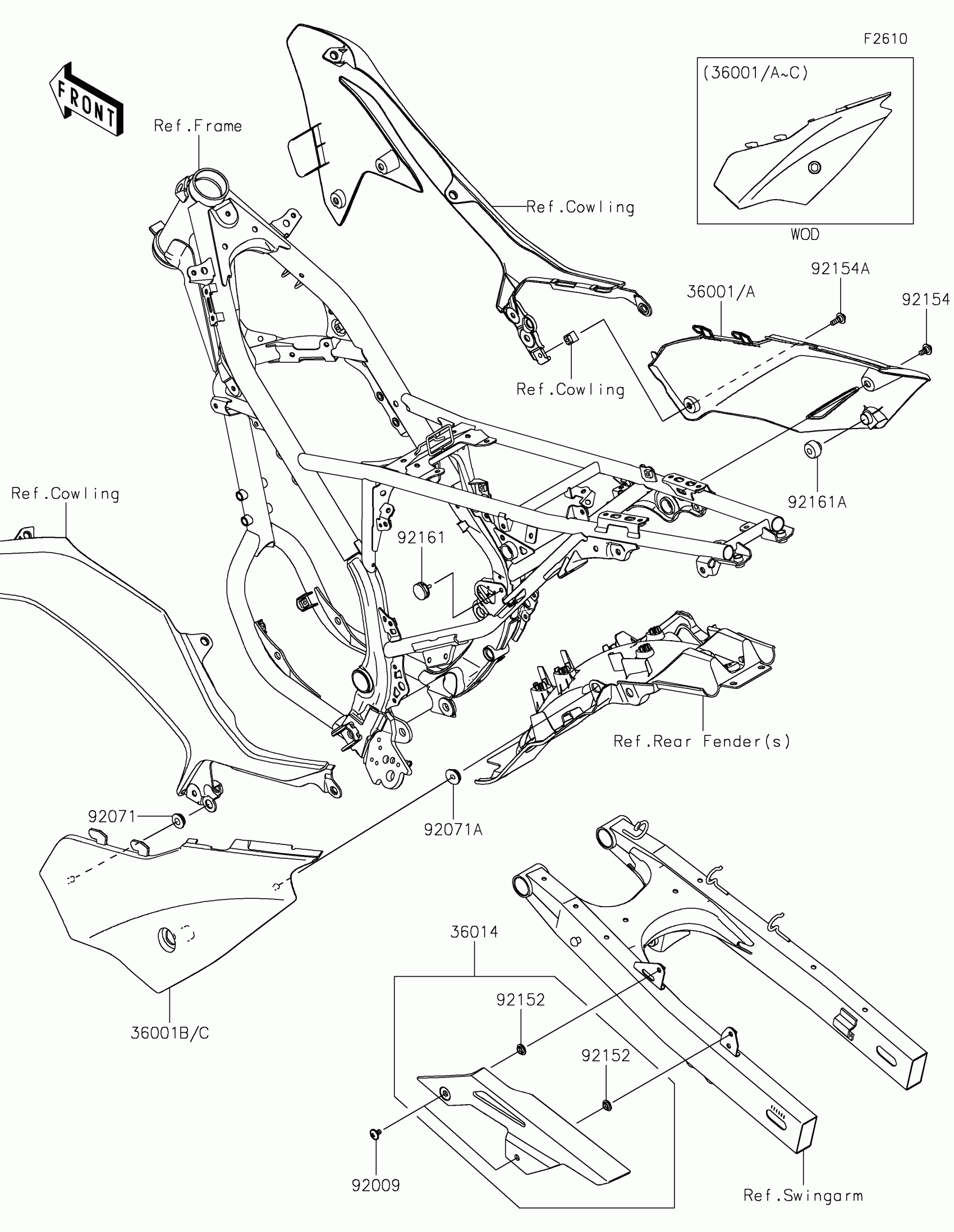

2020 Kawasaki KLX®230 Side Covers/chain Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

36001

COVER-SIDE,RH,B.WHITE

36001-0679-266

1
Out of stock

36001A

COVER-SIDE,RH,EBONY

36001-0679-6C

1
Out of stock

36001B

COVER-SIDE,LH,B.WHITE

36001-0684-266

1
Out of stock

36001C

COVER-SIDE,LH,EBONY

36001-0684-6C

1
Out of stock

36014

CASE-CHAIN

36014-0560

1

$16.37

In stock

92009

SCREW,6X10

92009-1729

1
Out of stock

92071

GROMMET

92071-0794

1
Out of stock

92071A

GROMMET

92071-0795

1
Out of stock

92152

COLLAR,8.8X16X4

92152-1731

1
Out of stock

92154

BOLT,FLANGED,6X9

92154-0546

1
Out of stock

92154A

BOLT,FLANGED,6X28

92154-1739

1
Out of stock

92161

DAMPER

92161-0581

1
Out of stock

92161A

DAMPER

92161-1783

1

$4.78

In stock
