2020 Kawasaki KLX®230 Gear Change Drum/shift Fork Diagram

← All diagrams

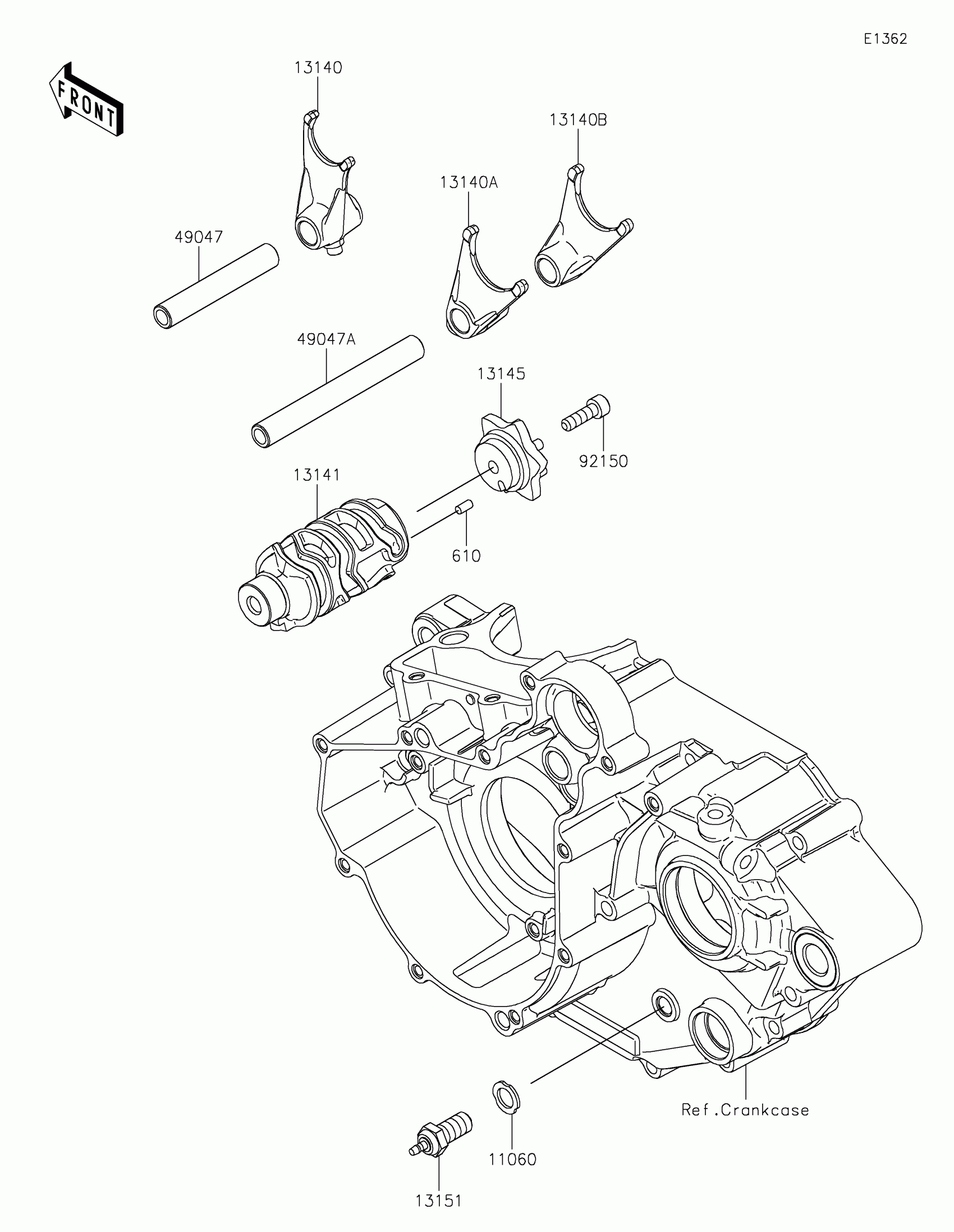

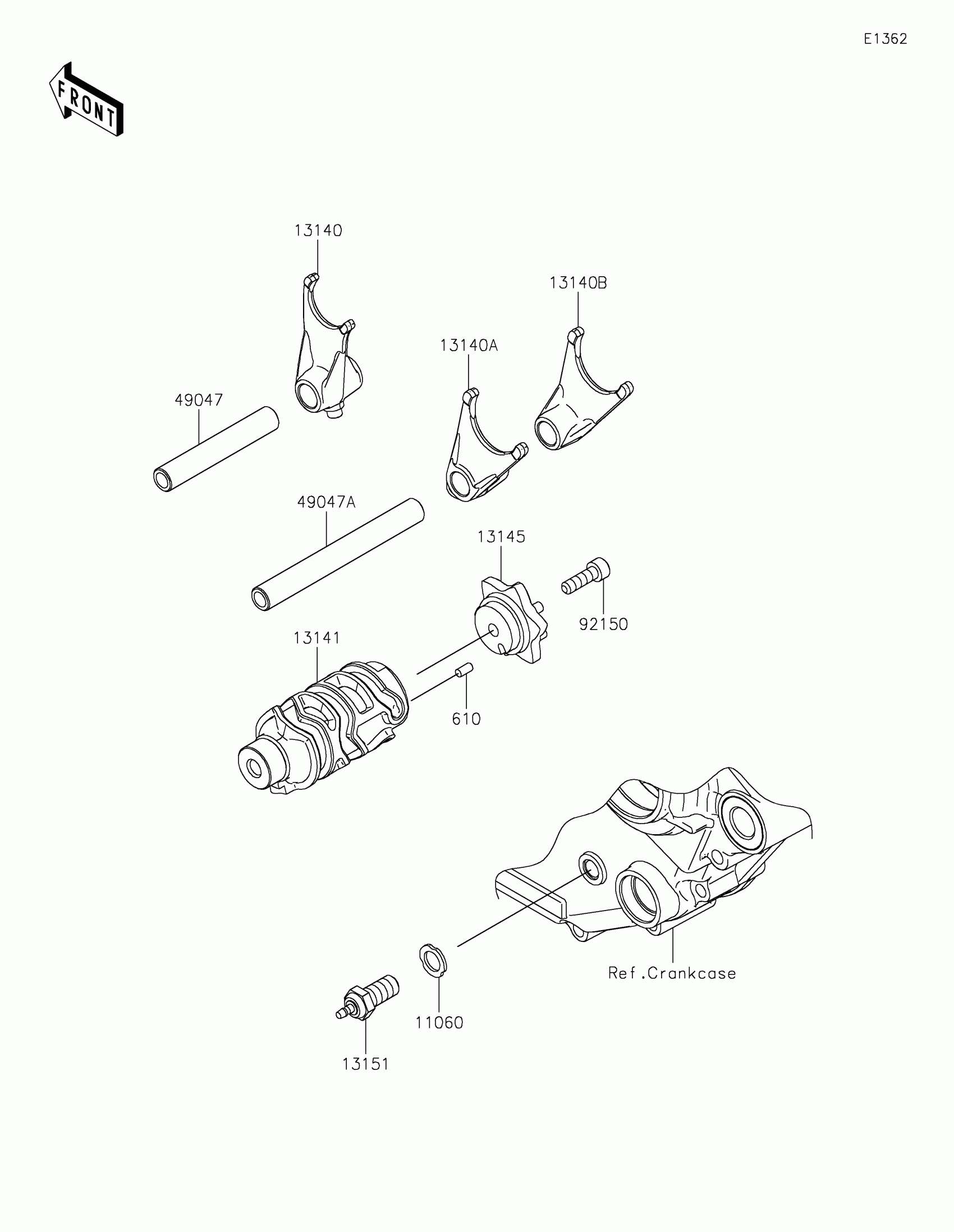

Find the part on the Gear Change Drum/shift Fork diagram for your 2020 Kawasaki KLX®230, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2020 Kawasaki KLX®230 Gear Change Drum/shift Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11060

GASKET,10.5X16X1.5

11060-1676

1
Out of stock

13140

FORK-SHIFT,INPUT

13140-0678

1
Out of stock

13140A

FORK-SHIFT,OUTPUT LH

13140-0679

1
Out of stock

13140B

FORK-SHIFT,OUTPUT RH

13140-0680

1
Out of stock

13141

DRUM-CHANGE

13141-0602

1
Out of stock

13145

CAM-CHANGE DRUM

13145-0574

1
Out of stock

13151

SWITCH-COMP

13151-0559

1
Out of stock

49047

ROD-SHIFT,INPUT

49047-0642

1
Out of stock

49047A

ROD-SHIFT,OUTPUT

49047-0643

1
Out of stock

610

ROLLER,4X8

610A0408

1
Out of stock

92150

BOLT,SOCKET,6X20

92150-1880

1
Out of stock
