2026 Kawasaki KLX®230 Sherpa S ABS Engine Mount Diagram

← All diagrams

Find the part on the Engine Mount diagram for your 2026 Kawasaki KLX®230 Sherpa S ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

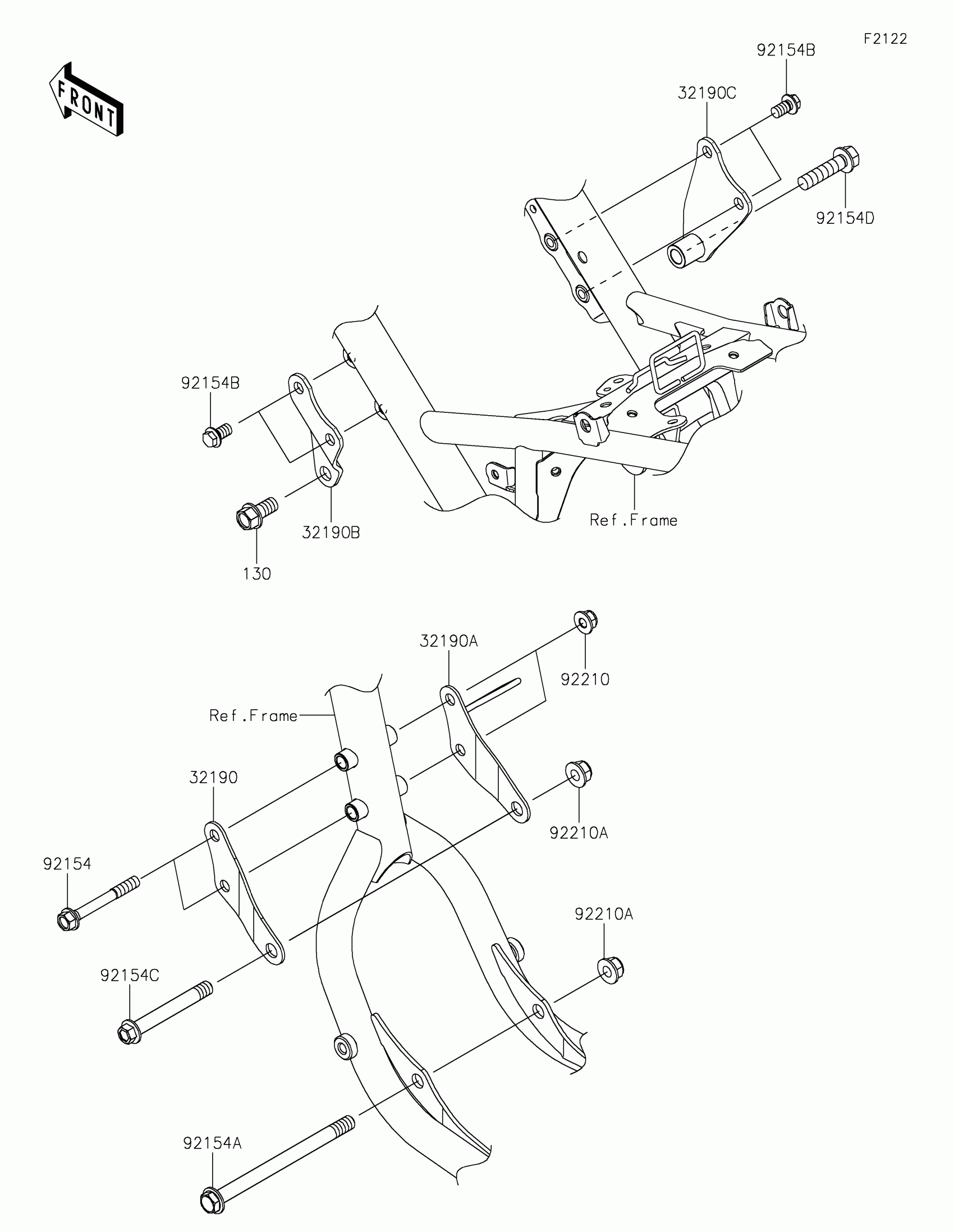

2026 Kawasaki KLX®230 Sherpa S ABS Engine Mount Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

32190

1

$7.64

In stock

32190A

1

$10.73

In stock

32190B

1

$8.97

In stock

32190C

1

$14.93

In stock

92154

BOLT,FLANGED,8X65

92154-3896

1

$2.46

In stock

92154A

BOLT,FLANGED,10X137

92154-3897

1

$10.73

In stock

92154B

BOLT,FLANGED,8X14

92154-3913

1

$1.56

In stock

92154C

BOLT,FLANGED,10X77

92154-4041

1

$7.64

In stock

92154D

BOLT,FLANGED,10X40

92154-7284

1

$2.29

In stock

92210

NUT,8MM

92210-0570

1
Out of stock

92210A

NUT,LOCK,FLANGED,10MM

92210-1080

1
Out of stock

130

BOLT-FLANGED,10X20

130CA1020

1

$1.76

In stock
