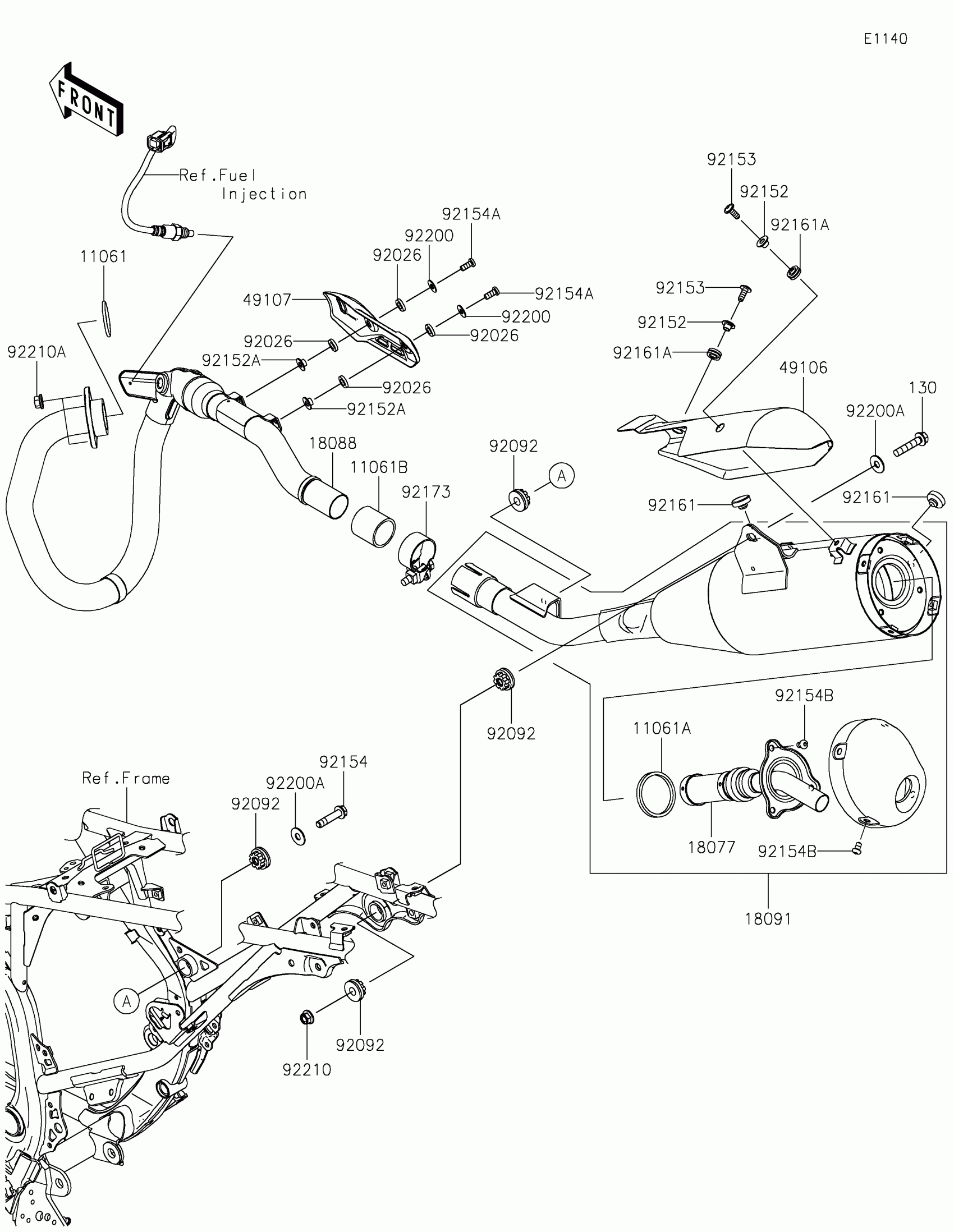

Kawasaki KLX®230 SHERPA S ABS Muffler(s) Diagram

Description

Price

11061

GASKET,EX PIPE

11061-0027

$5.80

11061A

GASKET,J/P-SILENCER

11061-0174

$7.69

11061B

GASKET,EXHAUST PIPE CONNECTING

11061-1407

$12.53

18077

ARRESTER-SPARK

18077-0046

$225.33

18088

PIPE-EXHAUST

18088-1746

$350.44

18091

BODY-COMP-MUFFLER

18091-1305

$550.24

49106

COVER-MUFFLER

49106-0907

$76.27

49107

COVER-EXHAUST PIPE

49107-0882

$53.57

92026

SPACER,8.7X15.2X3

92026-0868

$1.54

92092

BUSHING-RUBBER

92092-0018

$8.78

92152

COLLAR,6.3X8.3X16

92152-1602

$2.84

92152A

COLLAR,6.3X8.3X6.2

92152-2586

$7.41

92153

BOLT,SOCKET,6X16

92153-0817

$1.57

92154

BOLT,FLANGED,8X36

92154-1301

$3.49

92154A

BOLT,6X14

92154-3955

$2.12

92154B

BOLT,SOCKET,6X10

92154-4336

$1.76

92161

DAMPER,MUFFLER

92161-1284

$5.39

92161A

DAMPER

92161-1475

$4.04

92173

CLAMP

92173-2189

$5.94

92200

WASHER,6.5X16X1

92200-1974

Unavailable

92200A

WASHER,8.5X22X1.5

92200-1975

$3.17

92210

NUT,LOCK,FLANGED,8MM

92210-0140

$2.12

92210A

NUT,8MM

92210-2207

$1.14

130

BOLT-FLANGED,8X40

130CA0840

$1.11
