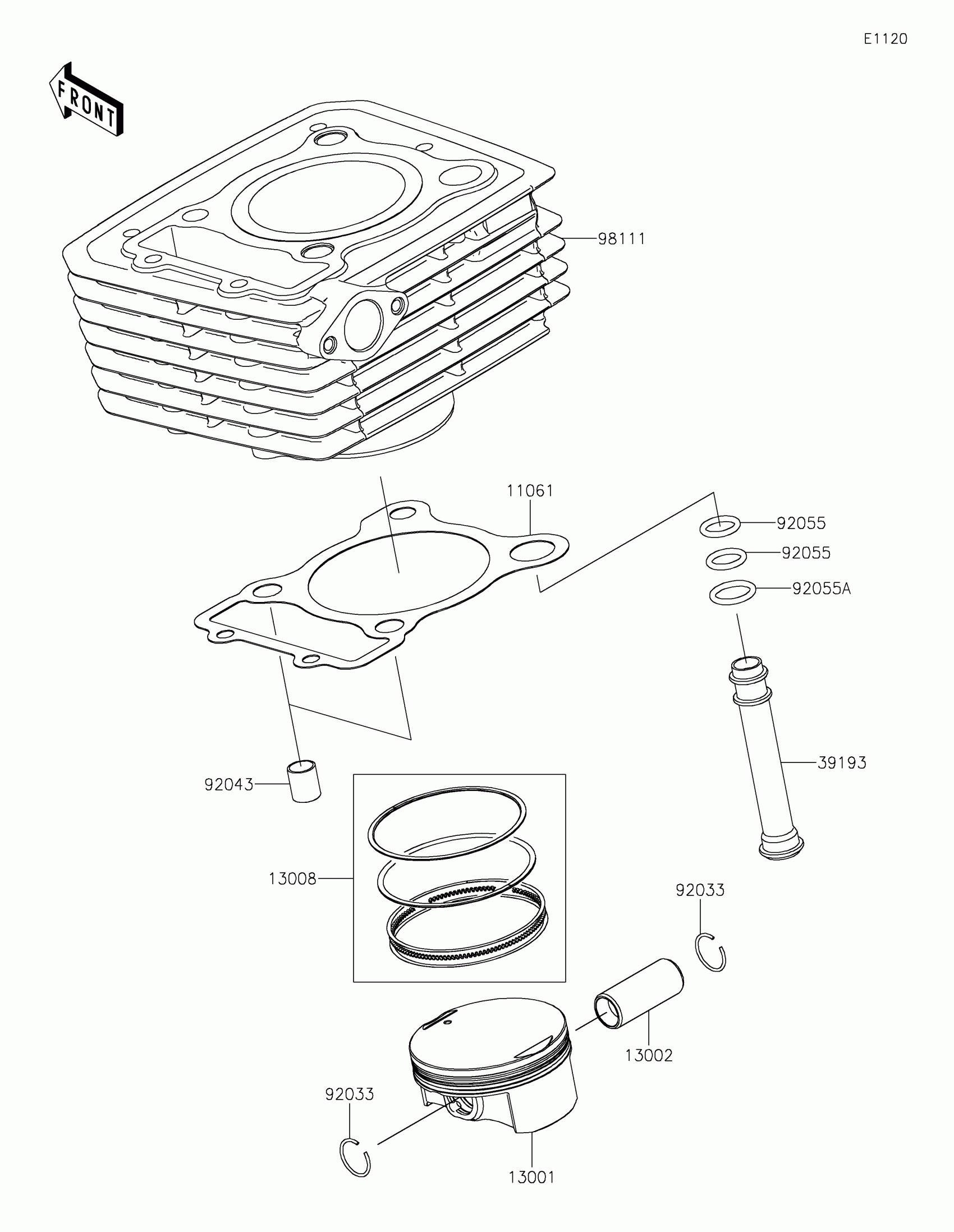

Kawasaki KLX®230 SHERPA S ABS Cylinder/Piston(s) Diagram

#

Description
Price

11061

GASKET,CYLINDER BASE

11061-1298

$7.56

13001

PISTON-ENGINE

13001-0850

$130.08

13002

PIN-PISTON

13002-0718

$14.37

13008

RING-SET-PISTON

13008-0580

$39.49

39193

PIPE-OIL

39193-0586

$7.80

92033

RING-SNAP,PISTON PIN

92033-0732

$3.10

92043

PIN,10.1X12X14

92043-4009

$4.67

92055

RING-O,12.3X2.4

92055-0918

$2.29

92055A

RING-O,14.8X2.4

92055-0919

$12.63

98111

CYLINDER-COMP-ENGINE

98111-0046

$570.36
