2022 Kawasaki KLX®230 S Valve Diagram

← All diagrams

Find the part on the Valve diagram for your 2022 Kawasaki KLX®230 S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

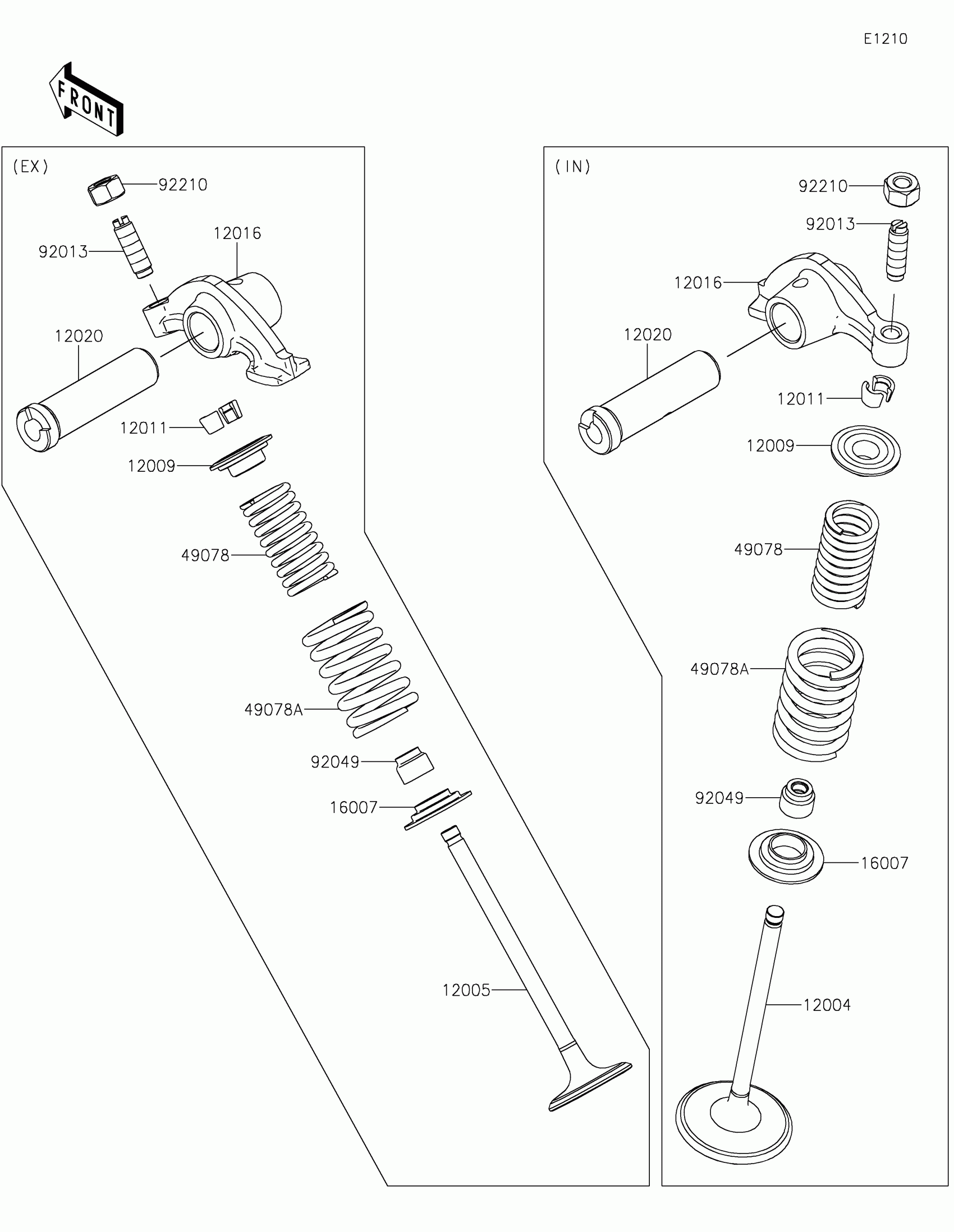

2022 Kawasaki KLX®230 S Valve Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

12004

VALVE-INTAKE

12004-0765

1

$44.86

In stock

12005

VALVE-EXHAUST

12005-0790

1

$62.14

In stock

12009

1

$8.61

In stock

12011

COLLET

12011-1003

1

$3.69

In stock

12016

ARM-ROCKER

12016-0728

1

$56.34

In stock

12020

SHAFT-ROCKER

12020-0027

1

$14.56

In stock

16007

SEAT-SPRING

16007-1163

1

$23.01

In stock

49078

SPRING-ENGINE VALVE

49078-0756

1

$13.03

In stock

49078A

SPRING-ENGINE VALVE

49078-0757

1

$14.97

In stock

92013

SCREW,6MM

92013-009

1
Out of stock

92049

SEAL-OIL,RVC2-5.5X8.5X8.3

92049-1062

1
Out of stock

92210

NUT,6MM

92210-1490

1
Out of stock
