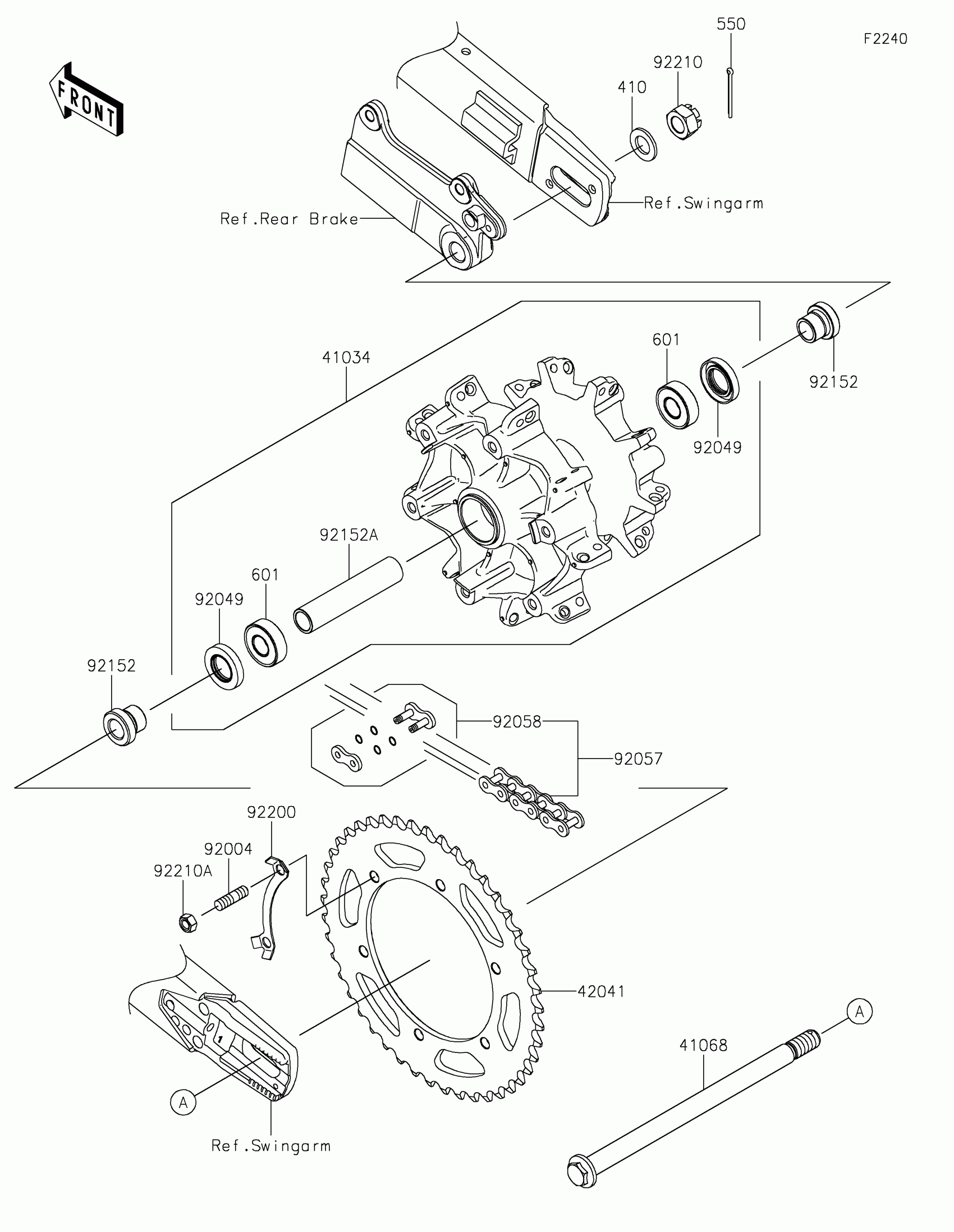

Find the part on the Rear Hub diagram for your 2026 Kawasaki KLX®230 DF ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2026 Kawasaki KLX®230 DF ABS Rear Hub Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

41034

DRUM-ASSY,RR,F.BLACK

41034-0628-21

1
Out of stock

41068

AXLE,RR,15X244

41068-0689

1
Out of stock

42041

SPROCKET-HUB,45T

42041-0200

1
Out of stock

92004

STUD,8X30

92004-0827

1
Out of stock

92049

SEAL-OIL

92049-0114

1
Out of stock

92057

1

$356.50

In stock

92058

JOINT-CHAIN

92058-0069

1

$11.34

In stock

92152

COLLAR

92152-2545

1

$15.63

In stock

92152A

COLLAR,15.2X20X96.2

92152-2546

1

$23.44

In stock

92200

WASHER

92200-2835

1
Out of stock

92210

NUT,CASTLE,14MM

92210-2309

1
Out of stock

92210A

NUT,8MM

92210-2358

1
Out of stock

410

1

$3.85

In stock

550

PIN-COTTER,3.0X35

550AA3035

1

$2.29

In stock

601

BEARING-BALL

601B6202UU

1

$20.38

In stock
