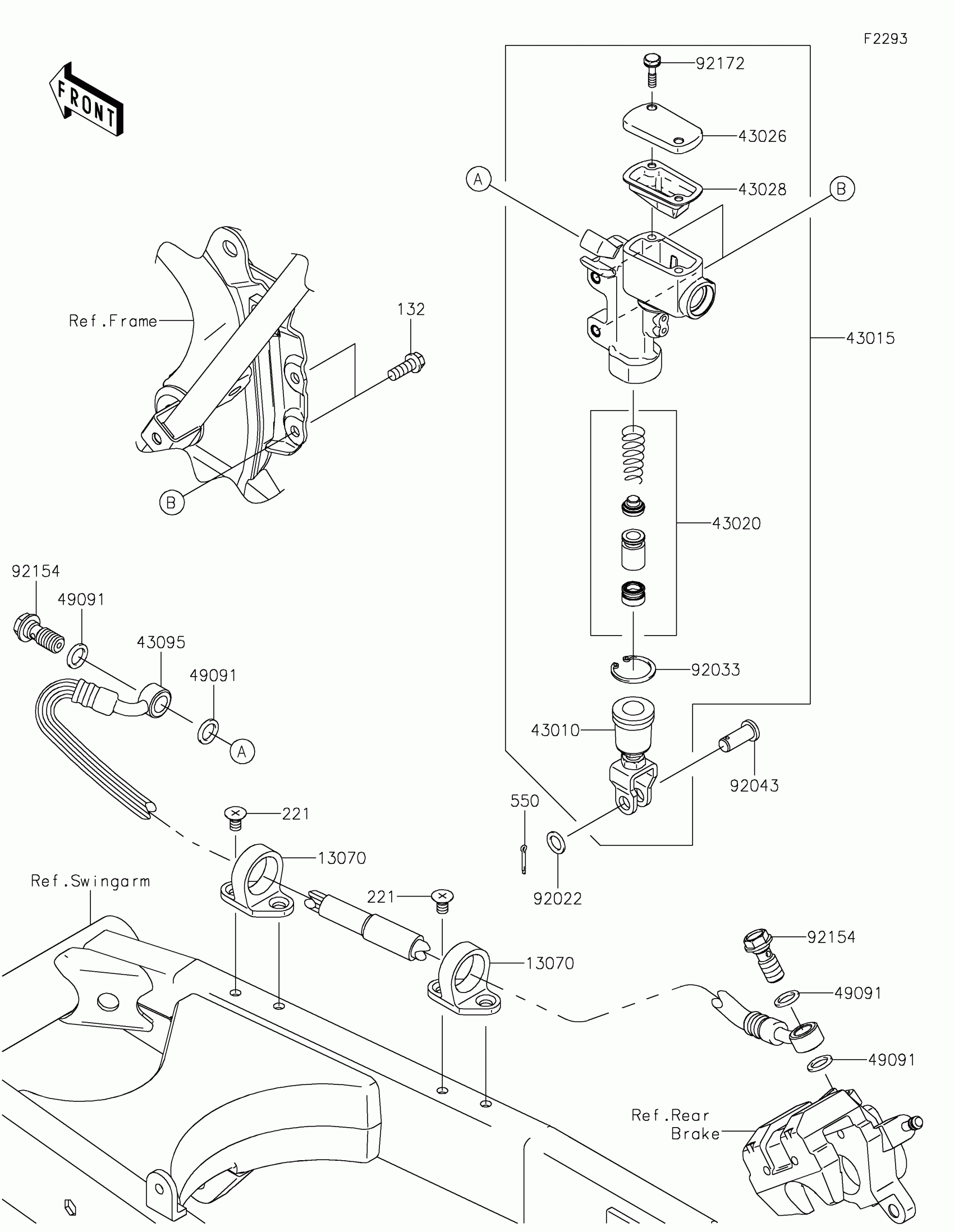

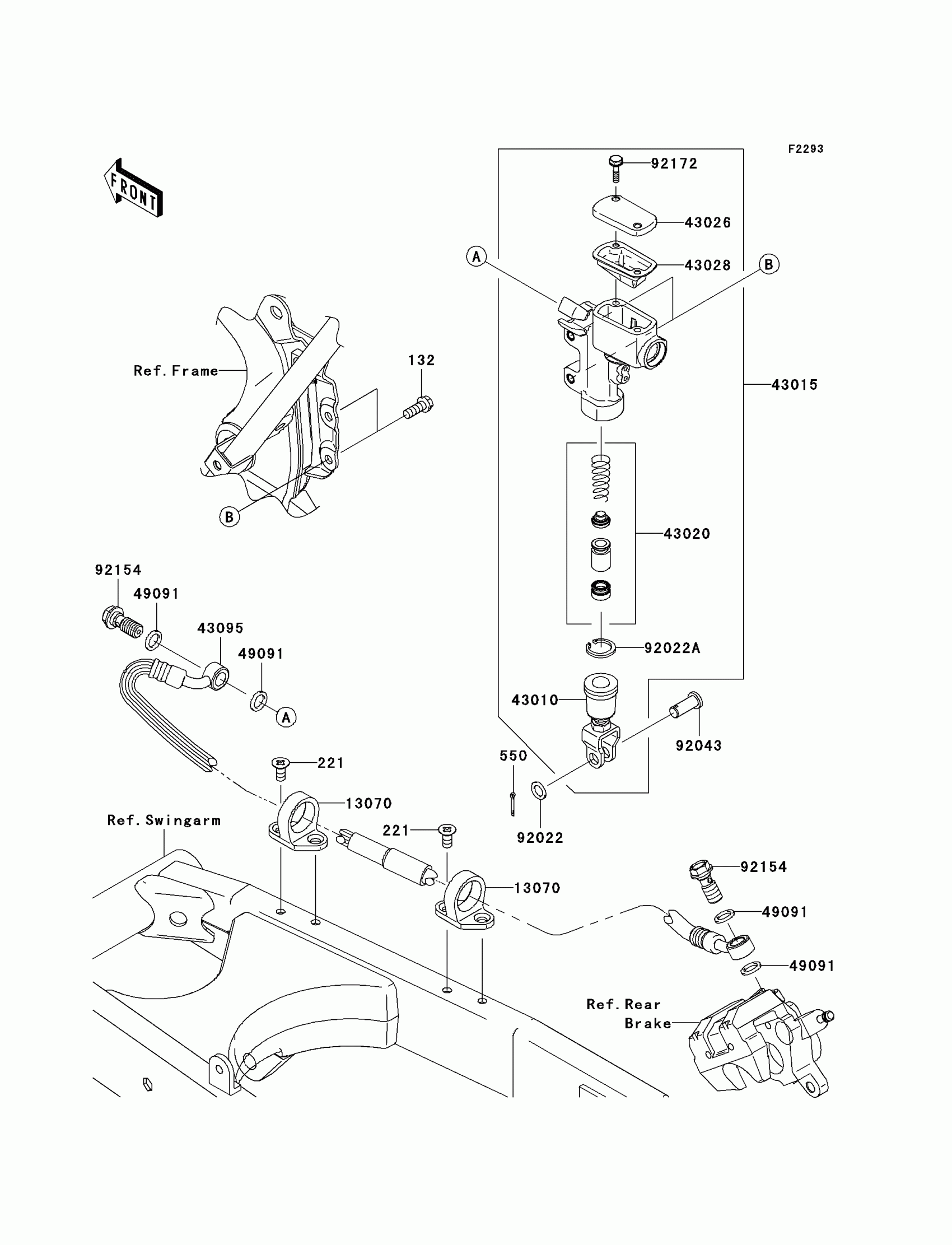

Kawasaki KLX®140L Rear Master Cylinder Diagram

Description

Price

132

BOLT-FLANGED-SMALL,6X16

132BA0616

$1.16

221

SCREW-CSK-CROS,6X10

221AA0610

$2.79

550

PIN-COTTER,2.0X15

550AA2015

$0.90

13070

GUIDE,HOSE

13070-1144

$6.13

43010

ROD-ASSY-BRAKE

43010-0006

$56.92

43015

CYLINDER-ASSY-MASTER,RR

43015-0099

$312.92

43020

PISTON-COMP-BRAKE

43020-1094

$58.51

43026

CAP-BRAKE

43026-0008

$14.86

43028

DIAPHRAGM

43028-1092

$16.80

43095

HOSE-BRAKE,RR

43095-0336

$68.42

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

$1.57

92022

WASHER,8.5X13X1

92022-1028

$2.99

92022A

WASHER,CIRCRIP

92022-1601

Unavailable

92043

92043-0004

$8.49

92154

BOLT,OIL,L=23

92154-0226

$4.46

92172

SCREW

92172-0286

$1.85
