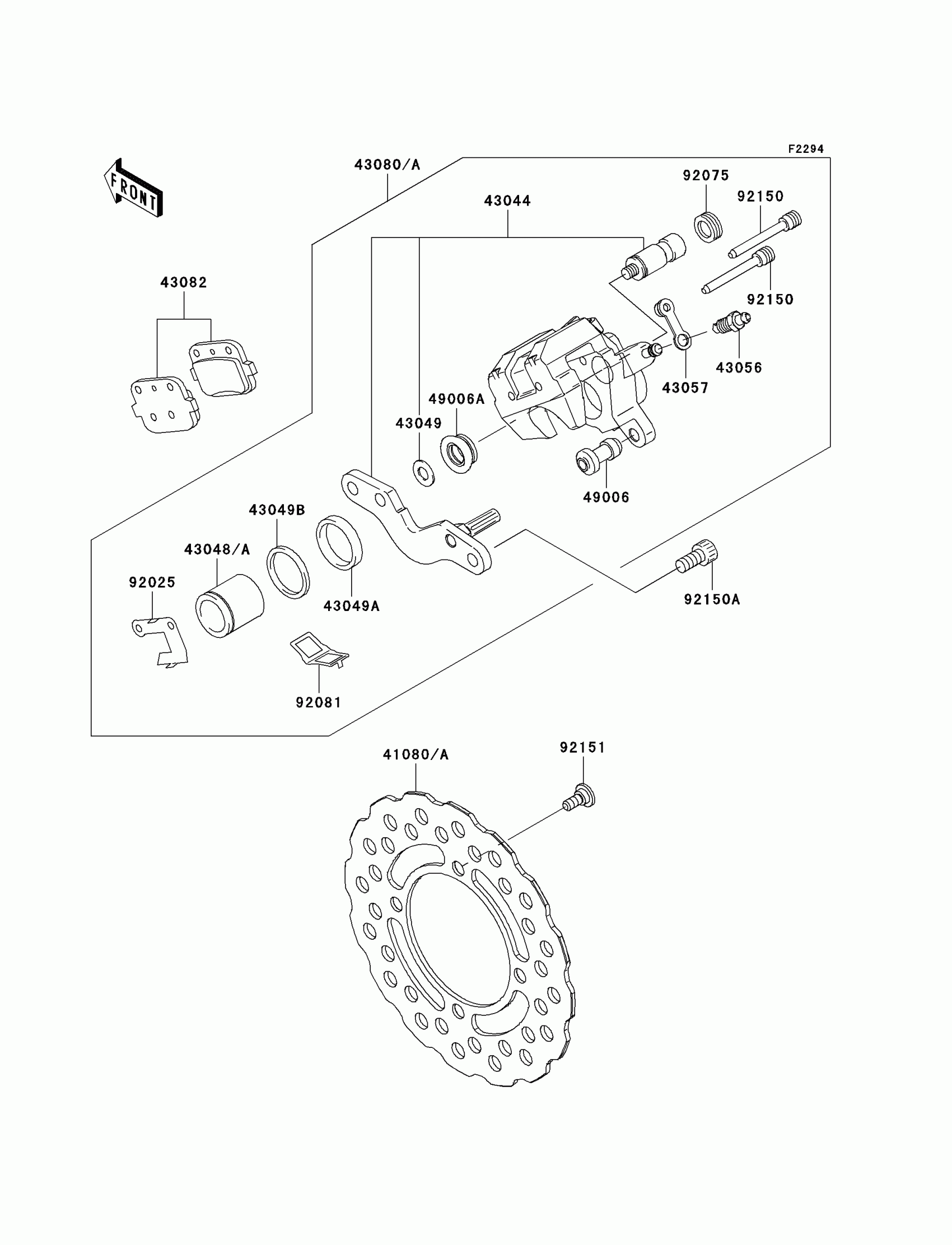

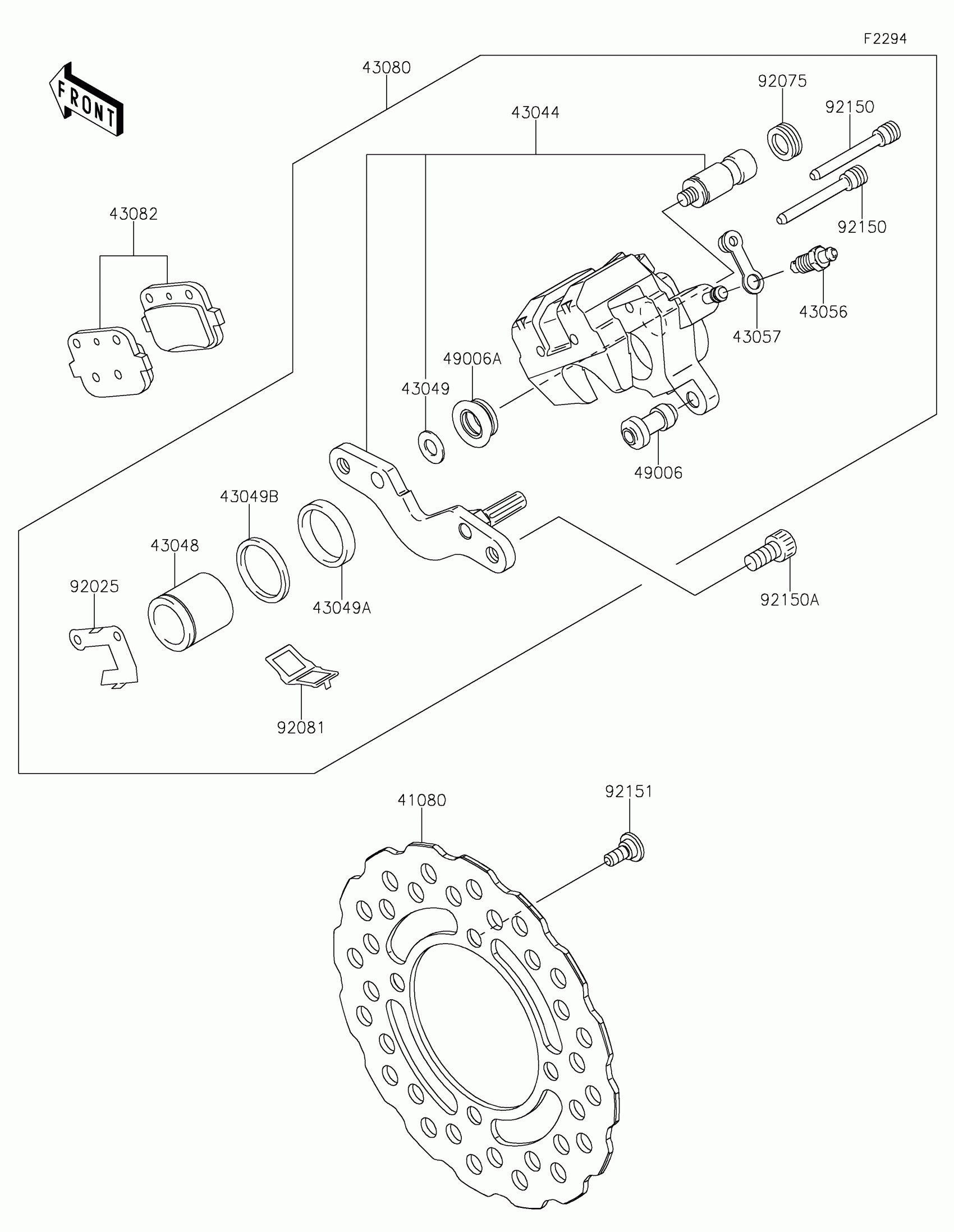

Kawasaki KLX®140L Rear Brake Diagram

Description

Price

41080A

DISC,RR

41080-0170

$193.68

43044

HOLDER-COMP-CALIPER,RR

43044-1076

$50.69

43048

PISTON-CALIPER

43048-0015

$47.40

43049

PACKING

43049-1025

$4.80

43049A

PACKING,PISTON SEAL

43049-1060

$14.67

43049B

PACKING,PISTON SEAL

43049-1061

$8.04

43056

BREATHER-BRAKE

43056-0004

$12.83

43057

CAP-BREATHER

43057-1001

$3.73

43080A

CALIPER-SUB-ASSY,RR

43080-0075

$178.83

43082

PAD-ASSY-BRAKE

43082-1205

$47.18

49006

BOOT,CALIPER

49006-1088

$8.83

49006A

BOOT,CALIPER

49006-1089

$5.64

92025

SHIM,PAD

92025-1817

$9.02

92075

DAMPER

92075-1414

$7.25

92081

SPRING,PAD

92081-1502

$8.31

92150

BOLT

92150-1144

$7.54

92150A

BOLT,SOCKET,8X16

92150-1840

$3.75

92151

BOLT,DISC PLATE,6MM

92151-1799

$3.15
