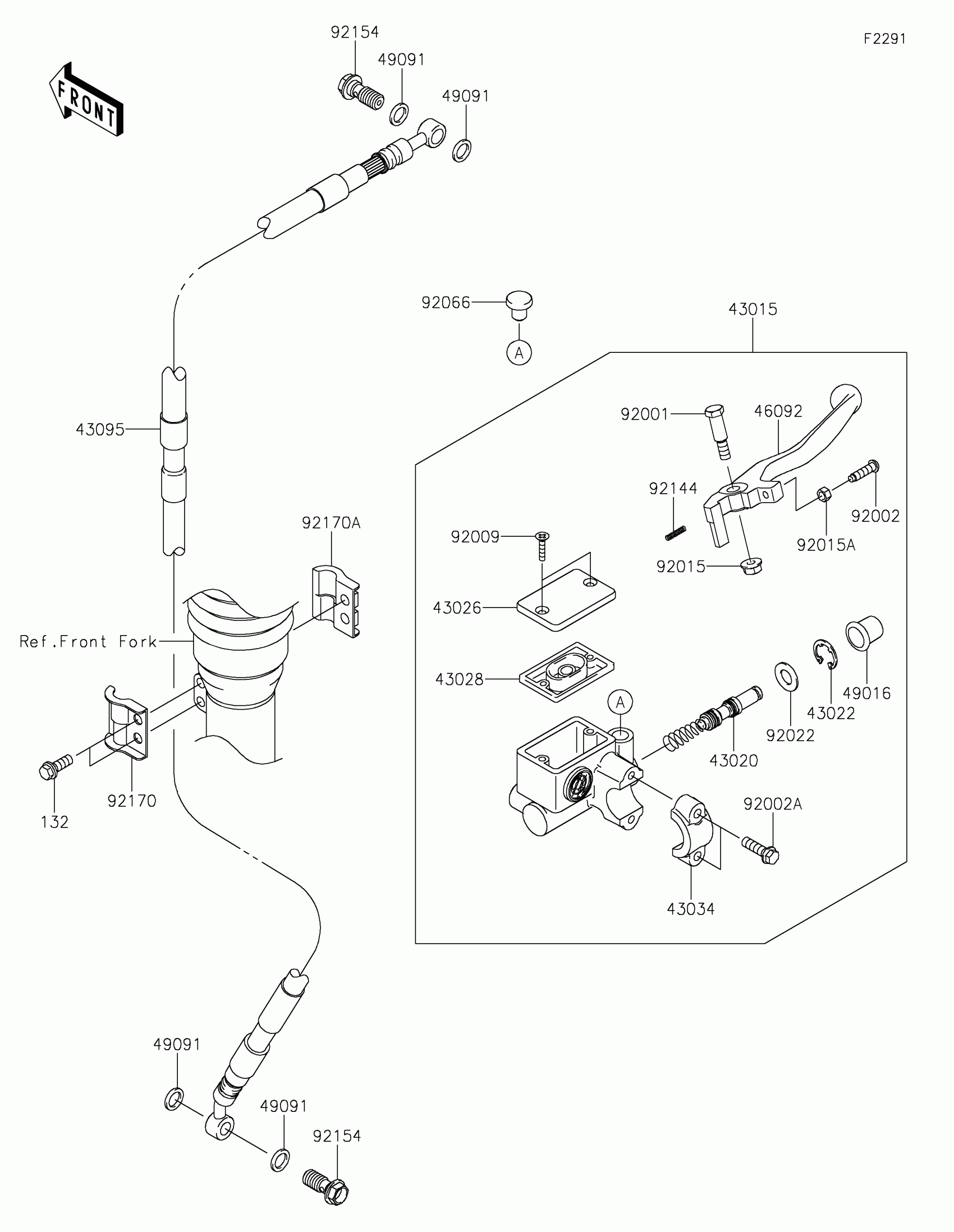

Kawasaki KLX®140L Front Master Cylinder Diagram

Description

Price

132

BOLT-FLANGED-SMALL,6X16

132BA0616

$1.16

43015

CYLINDER-ASSY-MASTER,FR

43015-0106

$271.88

43020

PISTON-COMP-BRAKE

43020-1065

$52.23

43022

STOPPER-BRAKE,PISTON

43022-1010

$3.54

43026

CAP-BRAKE

43026-1074

$20.73

43028

DIAPHRAGM

43028-1061

$12.27

43034

HOLDER-BRAKE,MASTER CYLINDER

43034-1016

$14.67

43095

HOSE-BRAKE,FR

43095-0335

$96.35

46092

LEVER-GRIP,FRONT BRAKE

46092-1175

$17.71

49016

COVER-SEAL,MASTER CYLINDER

49016-1044

$6.62

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

$1.57

92001

BOLT,FRONT BRAKE LEVER

92001-1728

$10.80

92002

BOLT,ADJUST

92002-1893

$7.36

92002A

BOLT

92002-1894

$4.18

92009

SCREW,4MM

92009-1458

$2.23

92015

NUT,FLANGED,6MM,BLACK

92015-1233

$4.18

92015A

NUT,ADJUST

92015-1642

$2.99

92022

WASHER

92022-1814

$4.17

92066

PLUG

92066-1348

$0.85

92144

SPRING,RETURN

92144-1103

$7.18

92154

BOLT,OIL,L=23

92154-0226

$4.46

92170

CLAMP,BRAKE HOSE,OUTSIDE

92170-1231

$7.25

92170A

CLAMP,BRAKE HOSE,INSIDE

92170-1232

$7.25
