2011 Kawasaki KLX®140L Fenders Diagram

← All diagrams

Find the part on the Fenders diagram for your 2011 Kawasaki KLX®140L, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

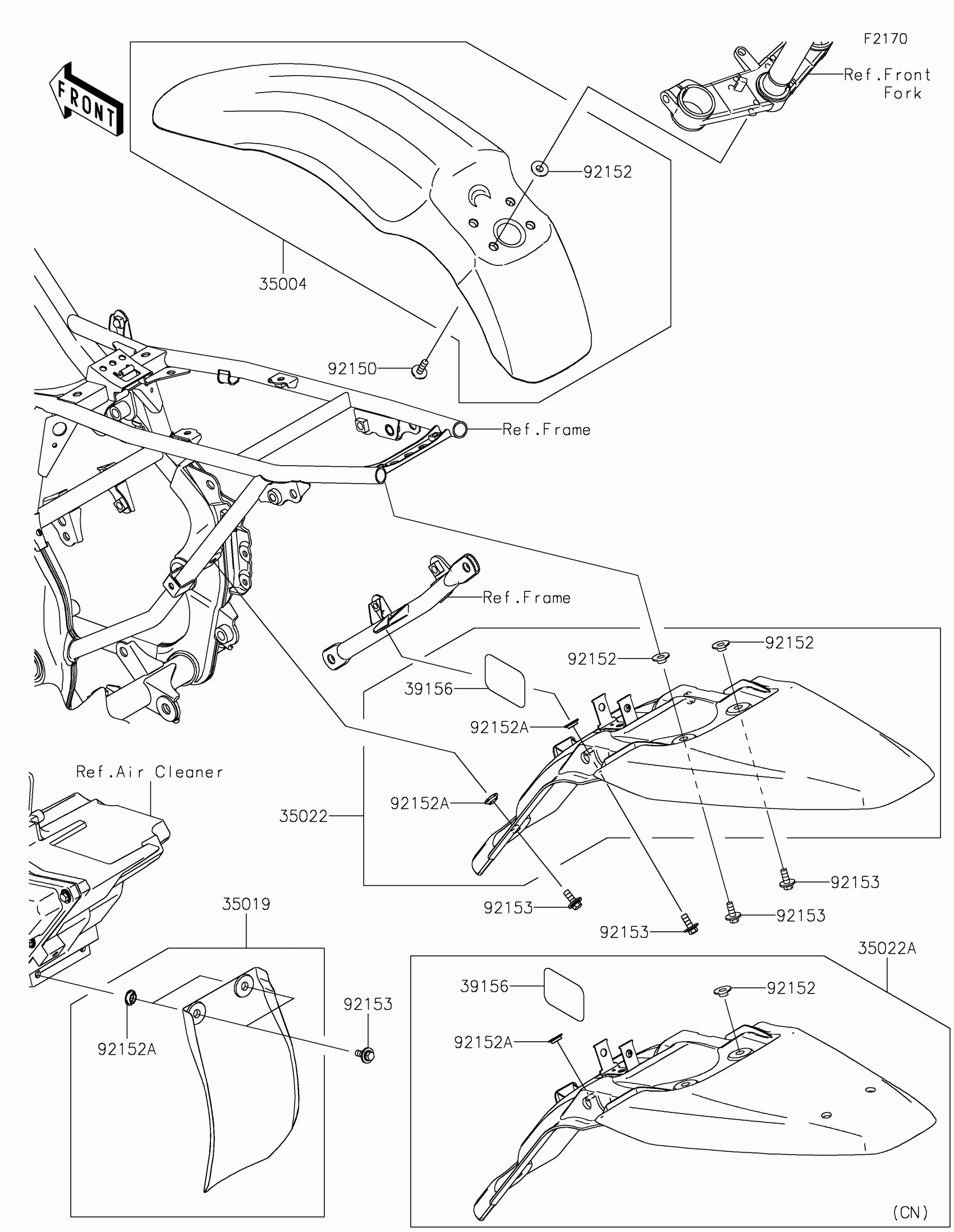

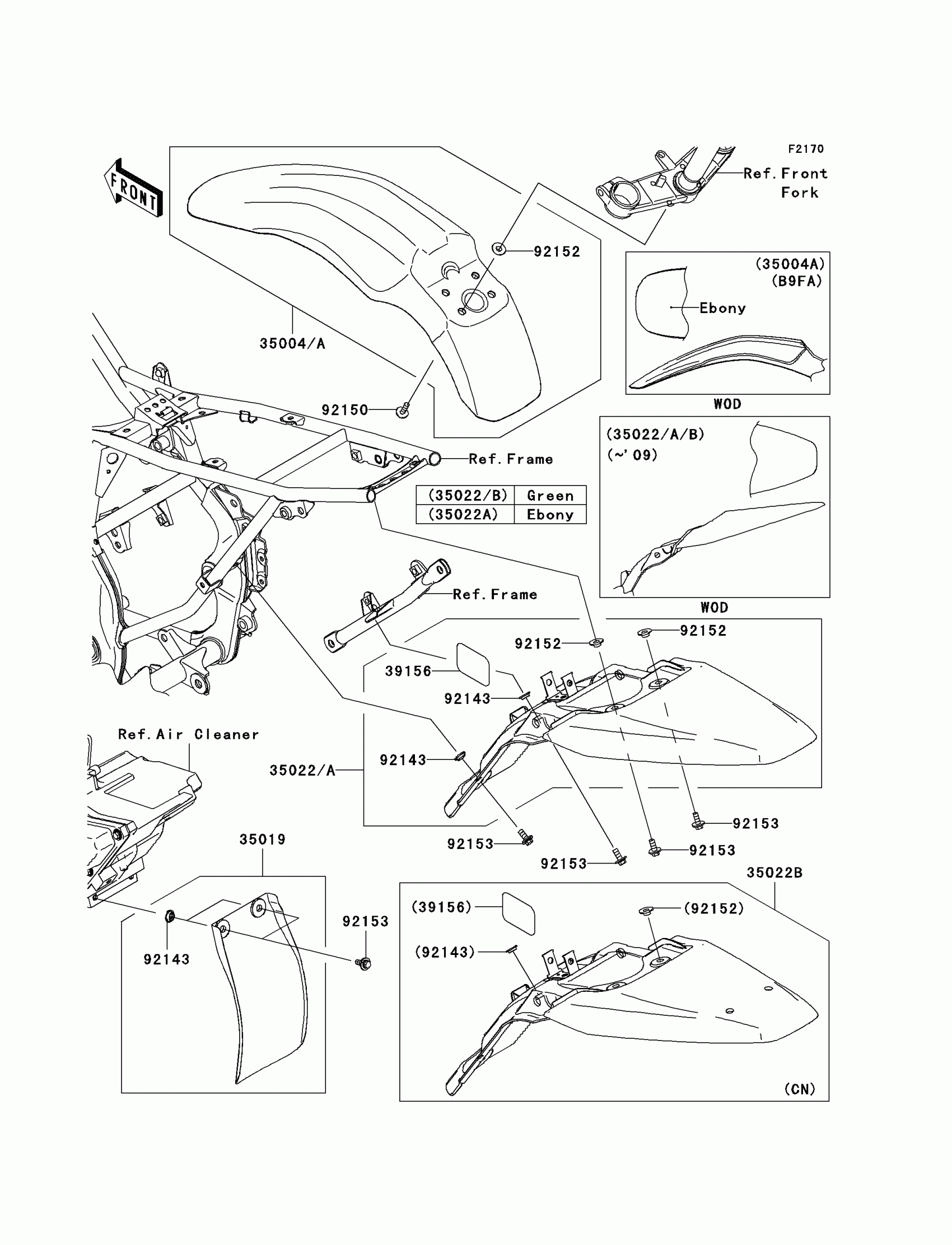

2011 Kawasaki KLX®140L Fenders Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

35004

FENDER-FRONT,L.GREEN

35004-0088-290

1

$61.98

In stock

35019

FLAP,RR FENDER,FR

35019-0058

1
Out of stock

39156

PAD

39156-0453

1

$7.56

In stock

92143

COLLAR

92143-1196

1

$3.72

In stock

92150

BOLT,6X20

92150-1339

1

$3.49

In stock

92152

COLLAR

92152-0427

1

$6.16

In stock

92153

BOLT,6X16

92153-0863

1
Out of stock

35022

FENDER-COMP-REAR,L.GREEN

35022-0054-290

1

$65.98

In stock

35022B

FENDER-COMP-REAR,L.GREEN

35022-0055-290

1
Out of stock
